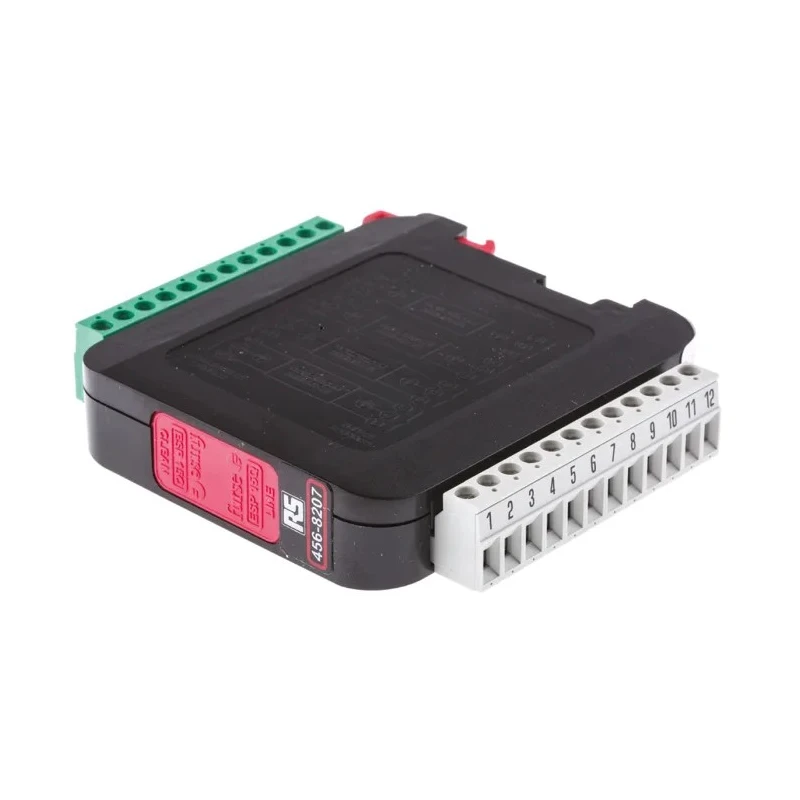

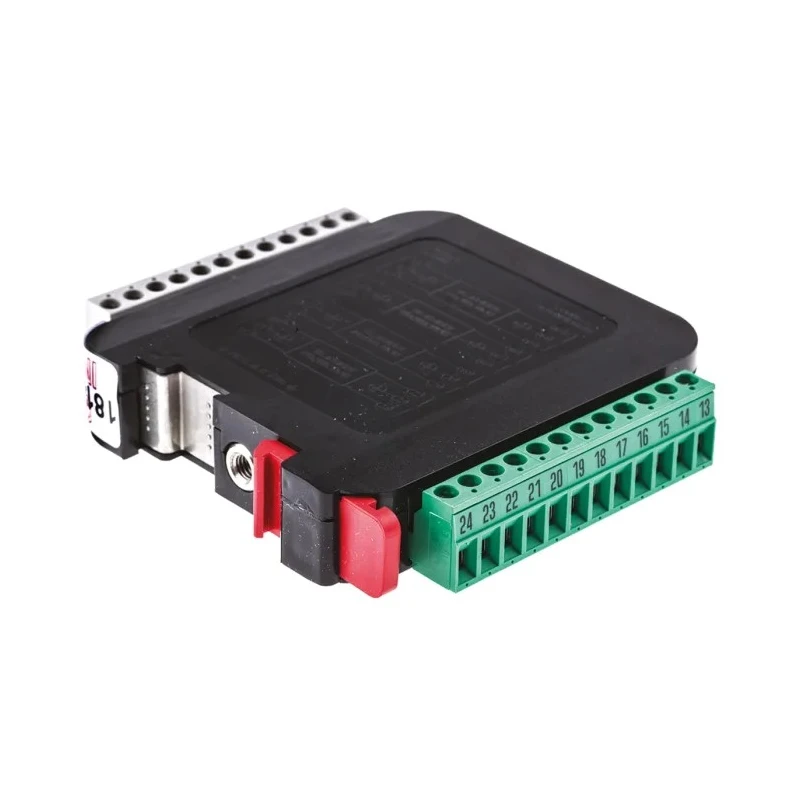

WJ Furse ESP Q Surge Suppressor Unit 18.8V Maximum Voltage 20 kA Maximum Surge Current 7TCA085400R0098 ESP 15Q

WJ Furse 7TCA085400R0098 ESP 15Q Surge Suppressor Unit is a high-performance device designed to protect electronic systems by limiting transient voltage surges. It features an 8 wire 15V surge protector type with a maximum voltage rating of 18.8V and can safely handle maximum surge currents up to 20 kA. Manufactured in the United Kingdom, this unit is specifically engineered for industrial, commercial, and electronic component protection applications.

The device is mounted on a standard DIN rail, offering ease of installation and maintenance. It is built to operate effectively across a wide temperature range from -25°C to 70°C, ensuring functionality in harsh environments.

With compact dimensions of 110mm in length, 180mm in height, and 18mm in depth, this surge suppressor is space-efficient. Its robust, flame retardant ABS housing provides enhanced safety and resilience against mechanical and thermal stresses.

Equipped with quad 0.75A twisted-pair lightning surge arrestors, the suppressor is optimized for twisted pair signalling applications common in data transmission and telecommunications. It achieves a very low let-through voltage and minimal in-line resistance around 1Ω, ensuring superior protection while maintaining signal integrity.

Colour-coded terminals improve installation accuracy and simplify wiring tasks. The terminals are removable, which facilitates easier connections and modifications on-site. The unit is grounded through the DIN rail or an M5 stud, guaranteeing an effective earth connection to minimize electrical hazards.

Certified under ANSI/ESD S20.20:2014 standards and approved by UK Oftel NS/G/1235/W/1000, this surge suppressor unit meets rigorous performance and safety requirements. Features an 8 wire 15V surge protector type for optimal protection.

Built for DIN rail mounting to facilitate easy installation. Operates reliably in temperatures ranging from -25°C to 70°C. Compact dimensions of 110mm length, 180mm height, and 18mm depth provide space efficiency. Constructed with a sturdy, flame retardant ABS housing for safety and durability.

Includes quad 0.75A twisted-pair lightning surge arrestors suitable for twisted pair signalling applications. Offers very low let-through voltage between all lines for effective surge suppression. Colour-coded removable terminals simplify wiring and installation.

Earthed via DIN rail or M5 stud for enhanced safety.

This surge suppressor unit is ideal for electronics components, power and connector protection, surge protection systems, and industrial electronic installations requiring robust transient voltage suppression and reliable signal line protection. Its construction and features make it suitable for use in industrial, manufacturing, telecommunications, and electronics maintenance contexts.
