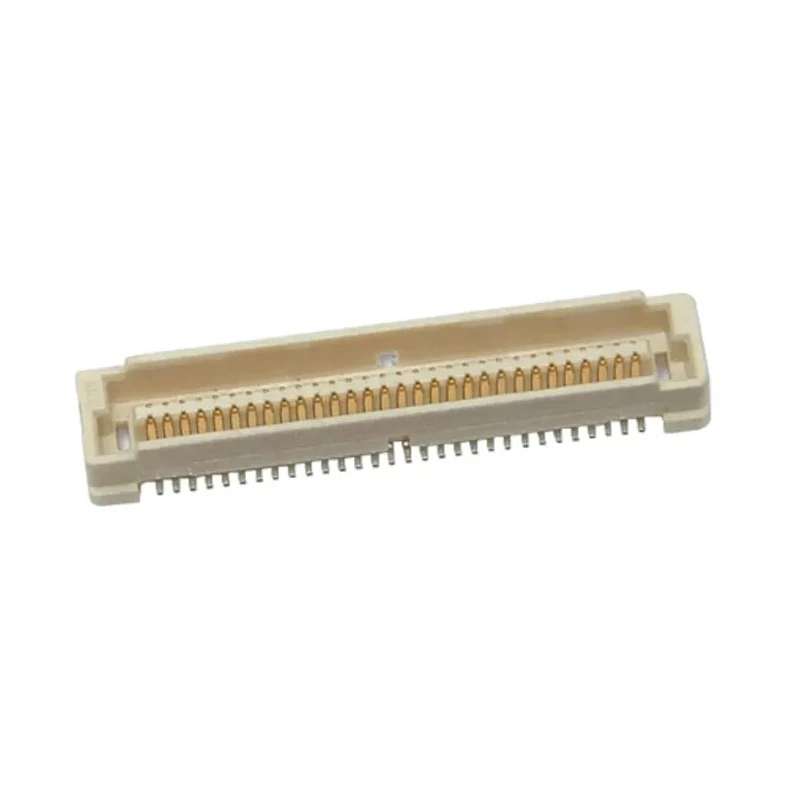

TE Connectivity Free Height Series Straight Surface PCB Header 60 Contacts 0.8mm Pitch 2 Row Shrouded 5177984-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Free Height |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Compact high density 0.8 mm pitch for space-saving PCB layouts.
- Shrouded housing provides reliable mating and prevents misalignment.
- 60 gold-plated copper alloy contacts ensure strong signal integrity.
- Thermoplastic housing suitable for a broad temperature range from -55°C to 105°C.
- Surface mount termination type designed for soldering on PCBs.
- Polarized connector system to avoid mis-mating and ensure correct orientation.
- Enables parallel stacking of PCBs with variable board stack heights from 5 mm to 20 mm.
- Ideal for telecommunications, industrial, military, aerospace, and computing applications.
Product Description
TE Connectivity 5177984-2 Free Height Series Straight Surface PCB Header is designed with 60 contacts arranged in 2 rows with a fine 0.8 mm pitch, optimized for board-to-board connections in tight spaces. This shrouded male connector features a thermoplastic housing and gold-plated copper alloy contacts that deliver reliable and strong electrical connections, essential for maintaining signal integrity in complex electronic systems.
The connector supports operating temperatures ranging from -55°C to 105°C and operates safely up to 100 volts and 500 mA current. Its surface mount termination type is suitable for soldering on PCB surfaces, enhancing mechanical and electrical durability.
This series supports a wide range of board stacking heights between 5 mm and 20 mm, making it versatile for mezzanine and parallel board stacking applications. The polarized housings prevent mis-mating, and locating bosses assist in accurate PCB placement during manufacturing. The bellows-type spring contact design is resistant to damage during mating cycles, ensuring long-term reliability.
Applications include use in telecommunications, industrial controls, military, aerospace, test cards, card extenders, and high-end computing equipment where space-saving, high-density connectors are critical for performance.
Compact high density 0.8 mm pitch for space-saving PCB layouts. Shrouded housing provides reliable mating and prevents misalignment. 60 gold-plated copper alloy contacts ensure strong signal integrity. Thermoplastic housing suitable for a broad temperature range from -55°C to 105°C.
Surface mount termination type designed for soldering on PCBs. Polarized connector system to avoid mis-mating and ensure correct orientation. Enables parallel stacking of PCBs with variable board stack heights from 5 mm to 20 mm.
Ideal for telecommunications, industrial, military, aerospace, and computing applications. Designed for applications requiring miniature connectors in high-end electronic equipment. Explore more products in PCB Connectors & Wire Housings category on EnvMart for additional industrial electronics solutions.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 0.8 mm, designed for compact high-density layouts.
This model features 60 contacts arranged in 2 rows.
The maximum operating temperature for this connector is 105°C.
The current rating of this PCB header is 500 mA.
This connector uses a solder termination type, suitable for surface mount applications.
The housing of this connector is made from thermoplastic material.
Yes, this connector features a polarized system to avoid mis-mating and ensure correct orientation.
The minimum operating temperature for this model is -55°C.
This PCB header is suitable for applications in telecommunications, industrial controls, military, aerospace, and high-end computing equipment.
The contacts in this connector are made of gold-plated copper alloy, ensuring strong signal integrity.
The voltage rating for this PCB header is 100 volts.
The shrouded housing design provides reliable mating and prevents misalignment during connections.
