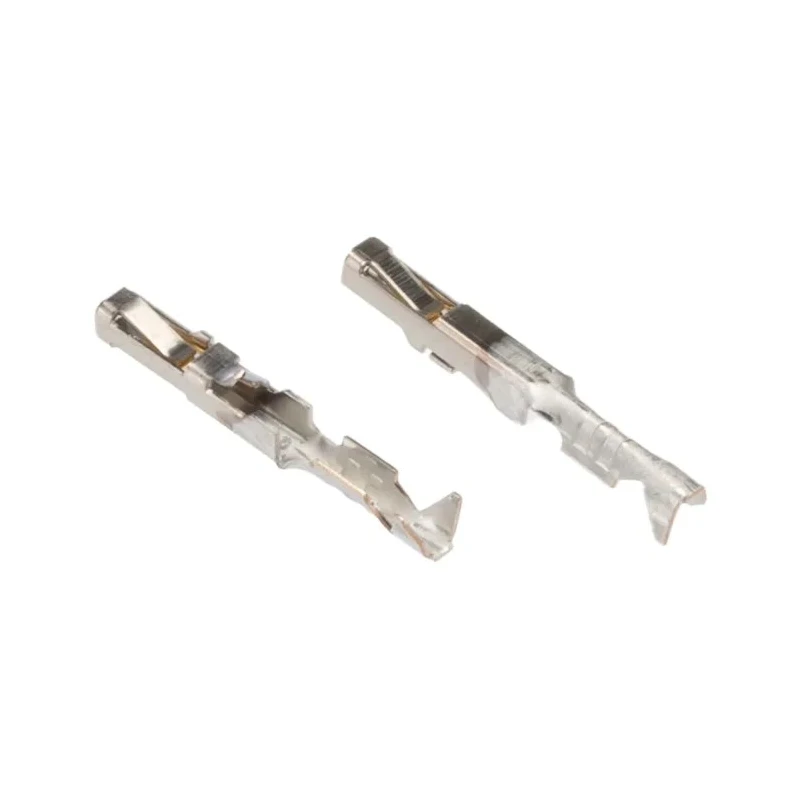

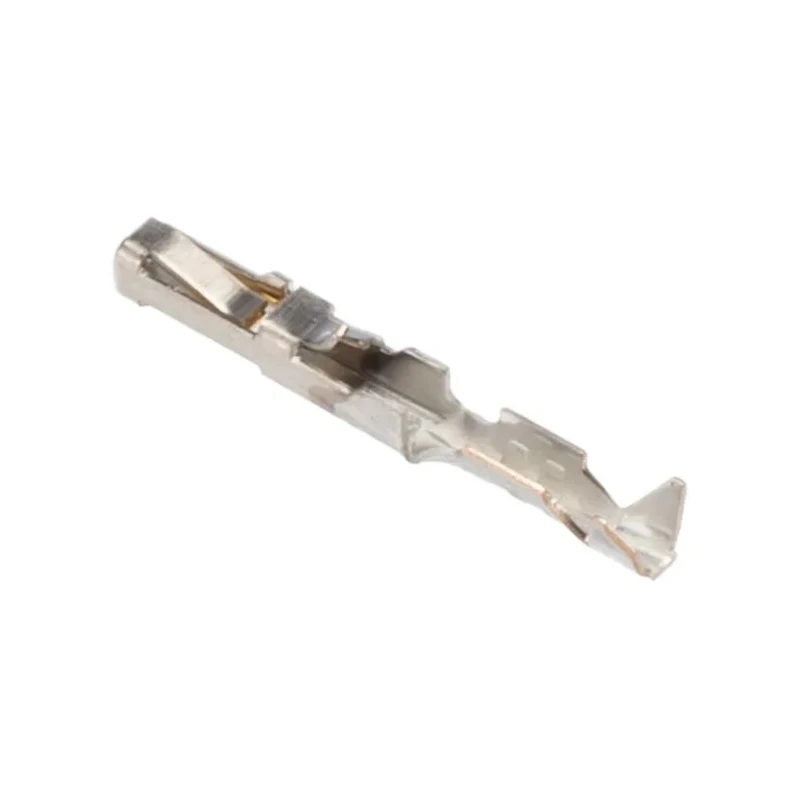

Molex Female Crimp Terminal 3A Current, 28 AWG Min Wire Size, 26 AWG Max Wire Size, Gold Plated Phosphor Bronze 90119-2121
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Housing | Polyphenylene Oxide |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |
| Insulation Material Headers | 15% Glass-filled Polyester (PBT) |
| Header Pin Size | 0.64 square mm |
| Recommended PCB Hole Diameter | 1mm |
Key Features
- Constructed from phosphor bronze for excellent electrical conductivity and strength.
- Gold plating provides corrosion resistance and secure contact performance.
- Compatible with Molex C-Grid III connector housings.
- Operates reliably within a temperature range of -55°C to 105°C.
- Designed for low contact resistance of 20 milliohms ensuring stable signal transmission.
- Compact size with 0.64 mm header pin and 1 mm recommended PCB hole diameter.
- Lightweight at approximately 0.73 grams for ease of handling.
- Widely used in consumer electronics, industrial vehicles, and computing equipment.
Product Description
Molex 90119-2121 female crimp terminal is engineered for reliable and efficient connections in electronic devices and assemblies. This product supports stranded wires from 28 AWG minimum to 26 AWG maximum, rated for currents up to 3 amperes, making it suitable for low-voltage electronic applications.
Manufactured from phosphor bronze, the contact material combines excellent durability and electrical performance. The selective gold plating on the contact surface enhances corrosion resistance, protects against oxidation, and ensures long-term stable electrical connections.
This crimp terminal fits Molex C-Grid III series connector housings, recognized for their uniform locking system and versatile compatibility for different housing styles. The terminal’s compact design includes a 0.64 square millimeter header pin and requires a 1 mm diameter PCB hole, facilitating easy mounting on printed circuit boards.
The operating temperature range of -55°C to 105°C supports use in demanding environmental conditions across industrial, commercial vehicle, and consumer electronics sectors. Its lightweight construction (0.73 grams) ensures minimal mechanical strain and ease of installation.
Constructed from phosphor bronze for robustness and electrical efficiency. Gold-plated contacts provide superior oxidation resistance and reliability. Compatible with Molex C-Grid III connector housing series including 90156, 90123, 90142, 90143, and 90160.
Current capacity of 3A and voltage rating of 350 V AC/DC for safe electrical performance. Low contact resistance of 20 milliohms optimizes signal quality. Temperature resilient between -55°C and +105°C for versatile applications.
Classified under industry standards DIN 41651 and HE13/14 guaranteeing quality assurance.
This Molex crimp terminal is an ideal component for electronic manufacturing, industrial automation hardware, and transportation electronics that demand compact, high-quality, and reliable wire-to-board connection solutions. Explore our extensive selection of connector components and crimp terminals on EnvMart for your electronic assembly needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 3 amperes, making it suitable for low-voltage electronic applications.
It supports stranded wires ranging from 28 AWG minimum to 26 AWG maximum.
The contact material is phosphor bronze, which provides excellent electrical conductivity and strength.
It operates reliably within a temperature range of -55°C to 105°C, suitable for demanding environmental conditions.
The recommended PCB hole diameter for this terminal is 1 mm, facilitating easy mounting on printed circuit boards.
The maximum contact resistance is 20 milliohms, ensuring stable signal transmission.
This crimp terminal is compatible with Molex C-Grid III connector housings, including models 90156, 90123, 90142, 90143, and 90160.
The header pin size is 0.64 square millimeters, designed for secure connections.
The insulation material for the headers is 15% glass-filled polyester (PBT), which provides durability.
This unit weighs approximately 0.73 grams, making it lightweight for ease of handling.
It is classified under industry standards DIN 41651 and HE13/14, ensuring quality assurance.
This model uses crimp termination, which is designed for reliable connections in electronic devices.
