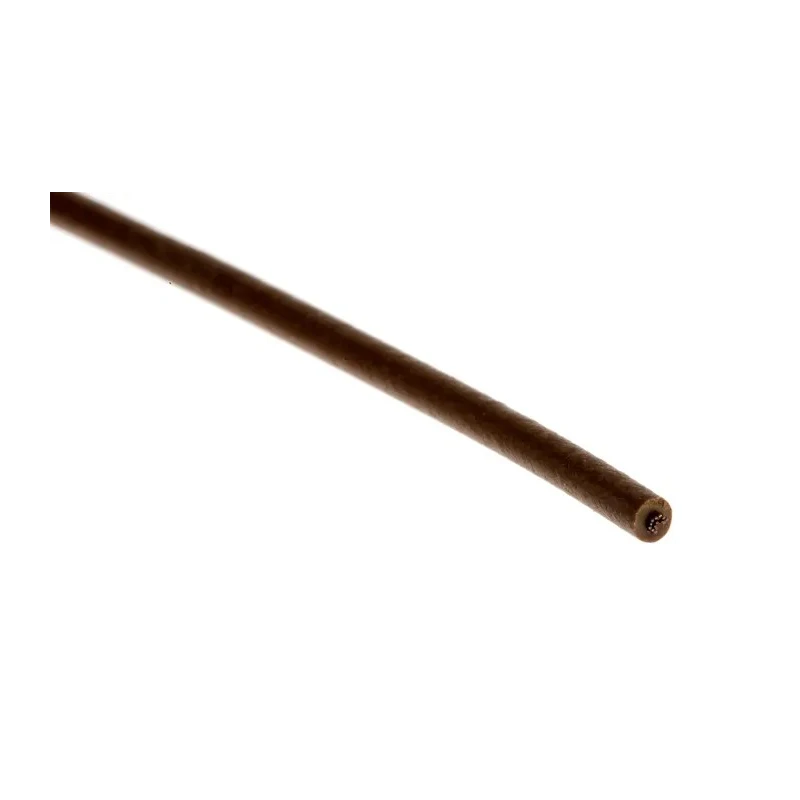

Lapp H05Z-K Series Brown 1 mm² Low Smoke Zero Halogen (LSZH) Hook Up Wire, 100 m, 300/500V, Cross Linked Insulation 4725033

The Lapp 4725033 H05Z-K Series Brown Hook Up Wire is a high-quality 1 mm² single core cable designed for safe and reliable electrical wiring. It incorporates Low Smoke Zero Halogen (LSZH) cross linked insulation, which significantly reduces the release of toxic gases and smoke in fire incidents, making it suitable for protection-critical installations.

Rated for 300 V and 500 V, this wire can withstand maximum operating temperatures up to 90°C and minimum temperatures down to -40°C. The conductor is constructed from fine bare copper wires to ensure excellent electrical conductivity and flexibility. The cable’s 2.9 mm diameter makes it perfect for installation in conduits, sealed trunking, and dry rooms, such as control cabinets and switchgear installations.

This flame retardant wire conforms to international standards including IEC 60332-1-2, IEC 60332-2-2, IEC 61034, IEC 60754-1, as well as EN 50525-3-41, CE, and EAC certifications. Its halogen-free properties prevent emission of corrosive gases, which is critically important in environments with low ventilation such as underground railways, ships, power plants, and nuclear facilities.

The H05Z-K cable series from Lapp is harmonized for wide applicability and is specifically engineered to provide enhanced fire safety and operational reliability within industrial, electrical, HVAC, and automation applications. Accessories such as SKINTOP CLICK cable glands are recommended for proper termination and management of this wire in control cabinets.

This wire supports both 300 V and 500 V voltage ratings for versatile usage. The insulation is halogen free and flame retardant according to IEC 60332 standards. Suitable for operating temperatures from -40°C up to 90°C, maintaining performance under harsh conditions.

The conductor is made of bare copper garantindo excellent electrical conductivity. The cable has an outside diameter of 2.9 mm, optimized for conduit installation. Designed primarily for internal wiring in control and distribution cabinets.

Complies with EN 50525-3-41, CE, and EAC standards for quality and safety. Ideal for use in sensitive environments like underground railways, ships, and nuclear power plants.
