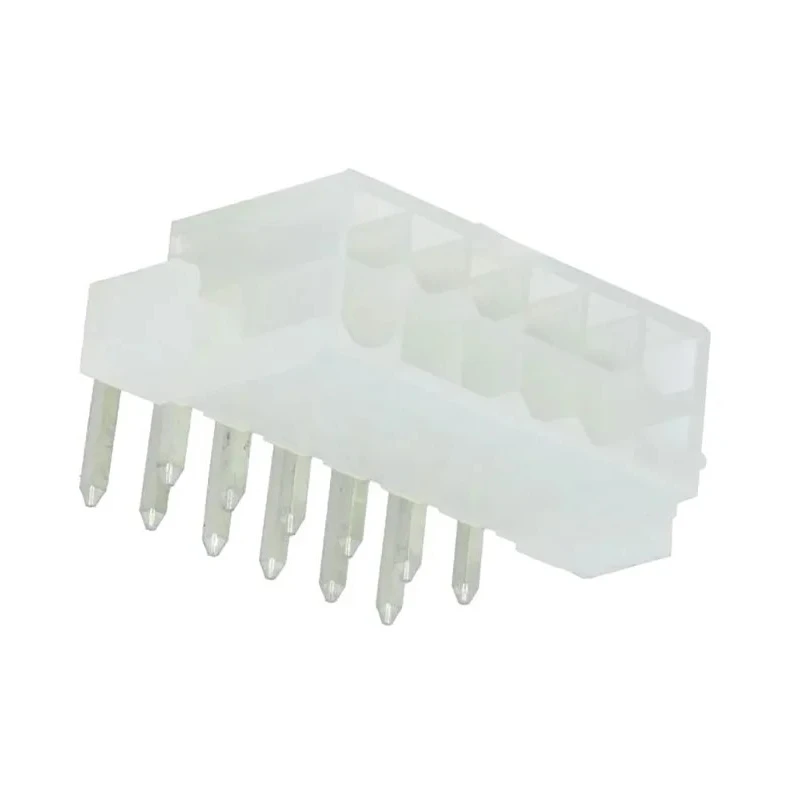

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header, 12 Contacts, 4.2 mm Pitch, 2 Row, Shrouded 39-29-1128
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports a current rating of up to 6A per contact.
- Features a right angle orientation suited for PCB mounting.
- Shrouded design protects contacts and prevents damage.
- Constructed with brass contacts and tin plating for durability.
- Operates reliably between -40°C and 105°C.
- Rated for use at voltages up to 600V.
- Solder termination type ensures secure electrical connection.
- Includes polarization and keying to prevent mismating.
Product Description
Molex 39-29-1128 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a precision-engineered power connector featuring a 4.2 mm pitch and 12 contacts arranged in 2 rows. This shrouded PCB header connector supports high current applications with a 6A rating per contact, making it suitable for demanding industrial environments.
The connector system is wire-to-board with a right angle orientation, designed for through-hole mounting on printed circuit boards. The brass contact material combined with tin plating enhances conductivity and corrosion resistance. Operating temperatures range from -40°C to 105°C, allowing reliable performance under diverse environmental conditions.
The housing of the Mini-Fit Jr PCB header provides scoop-proof protection to prevent contact damage during mating. Polarization and keying features ensure correct alignment and prevent mismating with receptacles. A secure positive locking mechanism offers vibration resistance and an audible click signals full engagement of the connector.
This PCB header is terminated via solder, ensuring a robust and durable electrical attachment. Rated for voltages up to 600V, it finds application in high current, high-density wire-to-board connections within consumer white goods, office equipment, industrial automation, network servers, routers, and switches.
Supports up to 6A current per contact. Features right angle, through-hole mounting configuration. Contact material: brass with tin plating for enhanced reliability. Shrouded housing prevents physical and electrical damage.
Polarization and positive locking mechanisms for secure connectivity. Operating temperature range: -40°C to 105°C. Voltage rating: 600V maximum. Solder termination ensures stable electrical connections.
These robust features make the Molex Mini-Fit Jr Series PCB Header ideal for use in demanding industrial, commercial, and consumer electronic applications requiring reliable power connections. Browse additional electronics components and connectors at EnvMart for your design needs.
Explore more products in our PCB Headers category.
