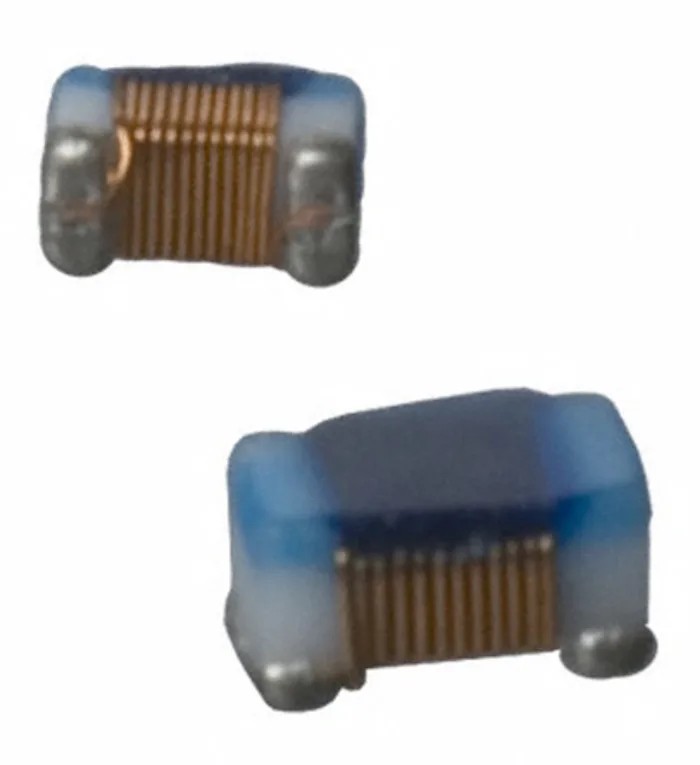

Murata Unshielded Wirewound Surface Mount Inductor with Non-Magnetic Core 3.3 nH ±0.2 nH 2 A Max DC Current Q LQW15AN3N3C80D

Murata LQW15AN3N3C80D is a high-quality unshielded wirewound surface mount inductor designed with a non-magnetic core, providing a nominal inductance of 3.3 nH with a tight tolerance of ±0.2 nH. This component supports a maximum DC current of 2 A, making it ideal for demanding electronic circuits.

The 1005 case size ensures a compact footprint suitable for high-density PCB layouts, while the low maximum DC resistance of 30 milliohms minimizes power dissipation. The inductor operates efficiently over a wide temperature range from -55°C to 125°C, lending itself to use in automotive and industrial environments.

With a high self-resonant frequency of 14 GHz and a minimum quality factor of 30, the LQW15AN3N3C80D excels in RF matching, antenna tuning, and choke circuit applications. It is particularly suited for maintaining antenna sensitivity in transmission and reception systems due to its low DC resistance and high Q value.

This surface mount inductor features a wirewound construction and is solder terminated to facilitate reliable PCB assembly. It complies with RoHS standards, ensuring it is environmentally friendly and suitable for modern manufacturing requirements.

Packaging in paper tape format supports automated pick-and-place machinery, improving production efficiency for electronics manufacturers. Murata's high manufacturing standards and the product's origin in Japan guarantee consistent performance and reliability.

Unshielded wirewound construction enhancing frequency response. Non-magnetic core reduces interference and signal distortion. Compact 1005 package ensures space savings on PCB designs. Low resistance enables high current applications with minimal losses.

Wide operating temperature suitable for harsh environments. High self-resonant frequency for RF and microwave applications. Lead-free solder termination ensures RoHS compliance. Paper tape packaging supports automated assembly processes.

Manufactured in Japan, reflecting high quality standards.

This product is ideal for use in electronic communication equipment, RF modules, and general industrial electronics requiring precise inductance performance. For more products in this category, explore other Surface Mount Inductors available at EnvMart.
