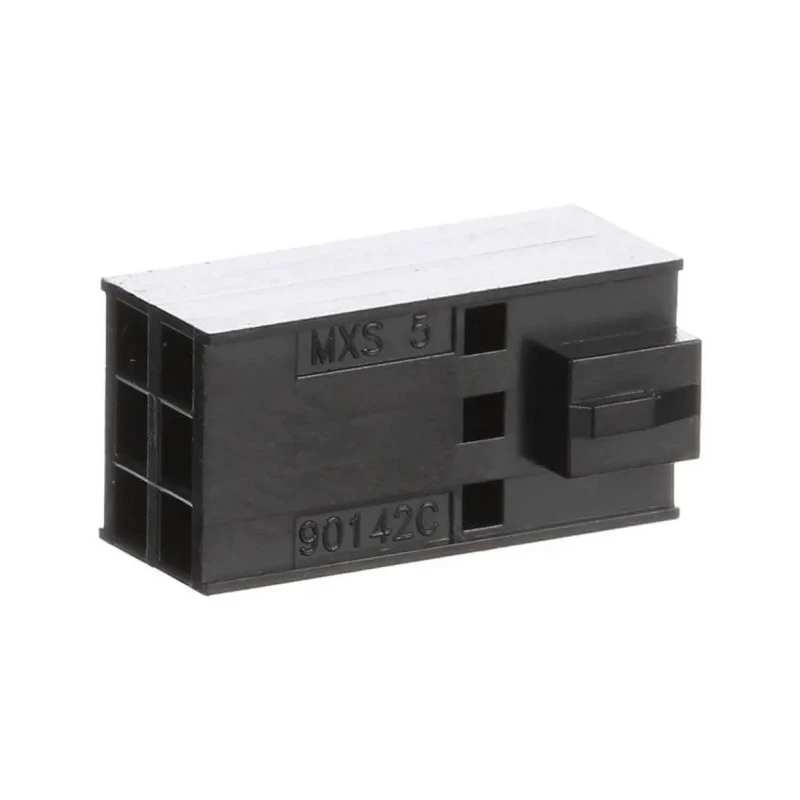

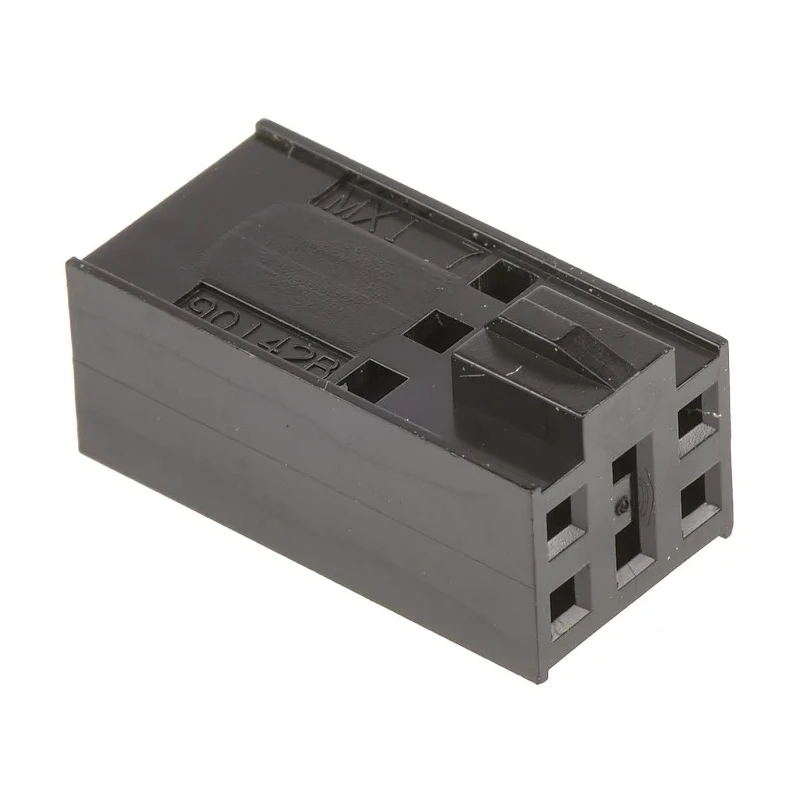

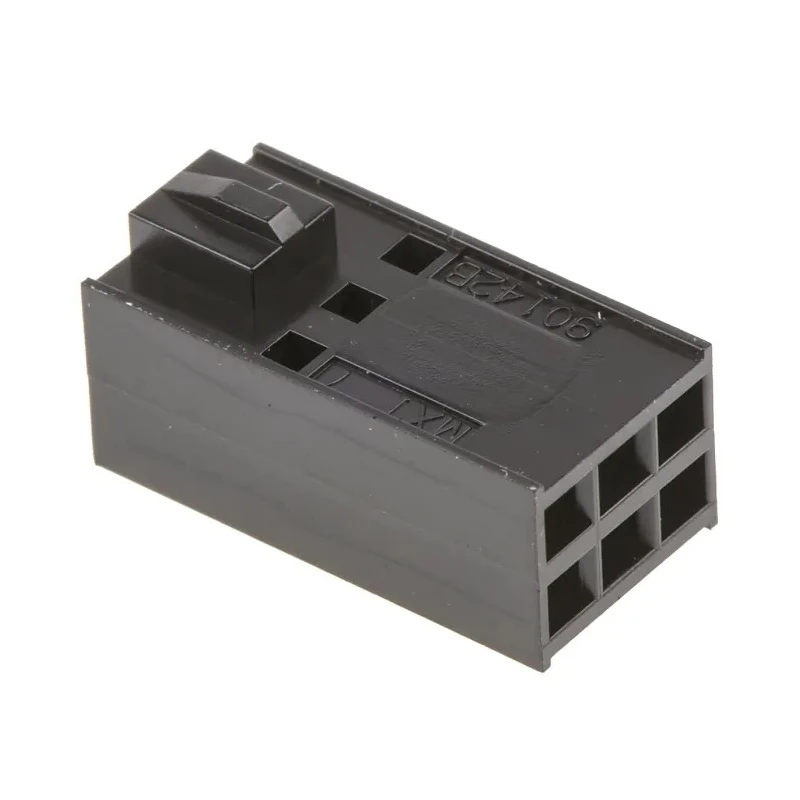

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 6 Way 2 Row Straight 90142-0006
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 7.62mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- Constructed from durable polyphenylene oxide material for impact resistance and electrical insulation.
- Compact size with length 7.62 mm and width 7.72 mm suitable for cable mount applications.
- Rated for 3A current ensuring energy efficiency without heat dissipation.
- Features polarization and keying to prevent mismating and ensure correct alignment.
- Wide temperature range from -55°C to +105°C supports demanding industrial environments.
- Includes audible click lock for secure connection confirmation.
- Compatible with Molex C-Grid III headers in 90122, 90130, and 90131 series.
- Ideal for use in medical equipment, robotics, automation, and automotive applications.
Product Description
Molex 90142-0006 female connector housing is a high-quality electrical connector housing designed with a 2.54 mm pitch and 6 contacts arranged in 2 rows. This straight orientation connector housing is made from polyphenylene oxide, a robust material that provides excellent mechanical impact resistance and electrical insulation for user safety and product durability.
With a compact length of 7.62 mm and width of 7.72 mm, this cable mount housing supports a 3A current rating, providing reliable and energy-efficient connections without excess heat generation. Its design features polarization and keying elements, minimizing the risk of mismating and misalignment during assembly, and an audible click ensures the connector locks securely in place.
The operating temperature range from -55°C to +105°C suits it for usage in harsh environmental conditions, making it suitable for industrial electronics. This connector housing is a key component in the Molex C-Grid III interconnection system, which offers modular design flexibility and is intended for wire-to-board connectivity.
Durable polyphenylene oxide housing provides mechanical robustness. 2.54 mm pitch and 6-way, 2-row configuration supports multi-circuit signals. Rated for 3A current ensuring efficient load handling. Polarization and keying prevents mismating and improper insertion.
Wide temperature tolerance from -55°C to +105°C enables diverse application range. Audible lock click confirms secure connection. Compatible with Molex C-Grid III dual-row header series for versatile system integration.
This Connector Housing finds extensive applications in medical devices, robotics, automation systems, and automotive electronics due to its durability, safety features, and compact design. It is ideal for demanding industrial, laboratory, and manufacturing environments requiring reliable electrical interconnections.
Explore more precision connectors and housings in the Electronics Components category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a 2.54 mm pitch and is configured with 6 contacts arranged in 2 rows.
It is rated for a current of 3A, ensuring efficient load handling without excess heat generation.
The housing is constructed from polyphenylene oxide, providing mechanical impact resistance and electrical insulation.
The housing has a length of 7.62 mm and a width of 7.72 mm, making it compact for cable mount applications.
This connector housing operates within a wide temperature range of -55°C to +105°C, suitable for harsh environments.
Yes, it is compatible with Molex C-Grid III headers in the 90122, 90130, and 90131 series.
The design includes polarization and keying elements to minimize the risk of mismating and ensure correct alignment.
Yes, it features an audible click lock that confirms when the connection is securely made.
It is ideal for use in medical equipment, robotics, automation, and automotive applications due to its durability and safety features.
The connector housing has a straight orientation, designed for easy installation in cable mount applications.
This connector housing is female, designed to accept male connectors in the C-Grid III series.
The country of origin for this connector housing is India.
