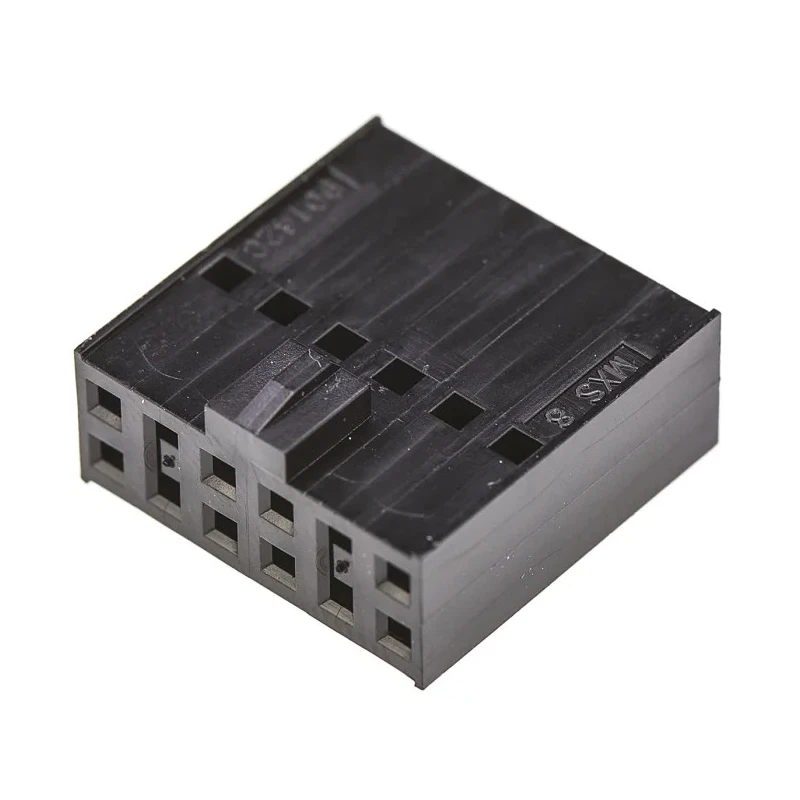

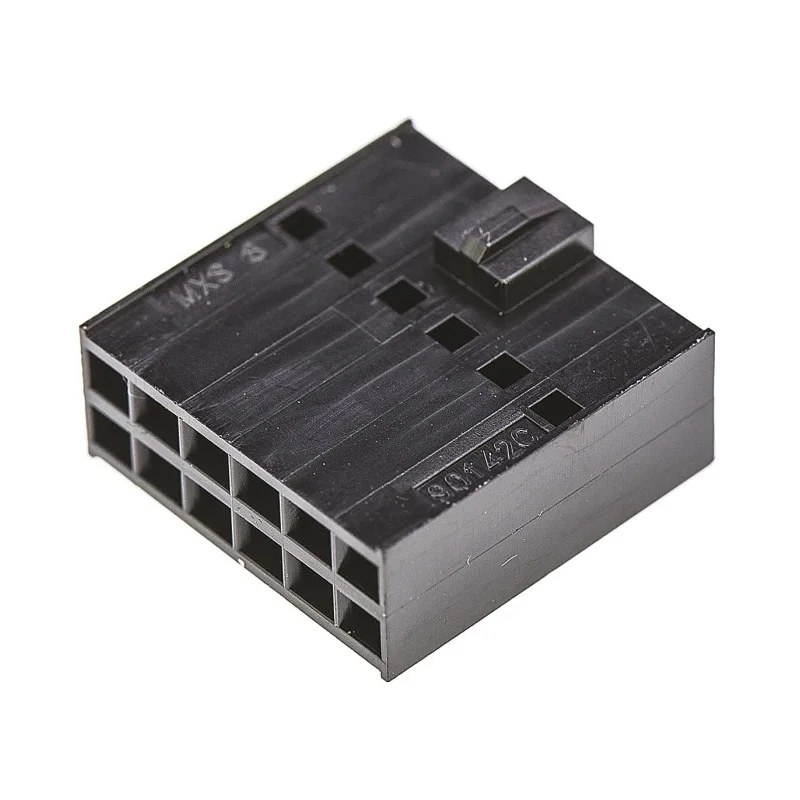

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 12 Way 2 Row Straight 90142-0012
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 15.24mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 12 |
| Connector Gender | Female |
| 2X6WAY HOUSINGBrand | RS PRO |
Key Features
- This connector housing offers precise 2.54 mm pitch spacing for reliable conductor accommodation.
- The integral lock-to-mating feature ensures secure and stable electrical connections.
- Constructed from robust polyphenylene oxide material providing excellent electrical insulation.
- Compact dimensions of 15.24 mm length and 7.72 mm width, suitable for space-limited applications.
- Operating temperature range from -55°C to +105°C for demanding environmental conditions.
- Designed as part of the C-Grid III series, suitable for various industrial and electronic systems.
- Facilitates stable transmission in medical, pharmaceutical, consumer electronic, and communication equipment.
- Polarised mating design prevents misalignment and connection errors.
Product Description
Molex 90142-0012 female connector housing is built for cable mount applications featuring a 2.54 mm pitch and a 12-way, 2-row straight configuration. Its compact design with dimensions 15.24 mm length by 7.72 mm width allows installation in confined spaces without sacrificing performance.
Manufactured from polyphenylene oxide (PPO) material, this housing ensures excellent electrical insulation and protection against contaminants. The lock-to-mating design guarantees secure and stable connections, essential for critical electronic systems.
This connector is part of the Molex C-Grid III interconnection system, known for modular components and flexibility in electronic market applications. It supports a temperature range from -55°C to +105°C, making it suitable for use in harsh industrial, medical, pharmaceutical, consumer electronics, communication systems, and server room environments.
Precise 2.54 mm pitch providing small conductor accommodation. Security with integral lock-to-mating feature to prevent disconnects. Durable polyphenylene oxide housing offers robust electrical insulation. Compact form factor ideal for tight spaces and advanced PCB layouts.
Wide operating temperature range ensures reliability in diverse conditions. C-Grid III series compatibility enhances modular interconnection flexibility. Polarised mating design cutting risks of misalignment during assembly.
Applications span medical, pharmaceutical, consumer electronics, communication, and server rooms.
Choose Molex connector housings to ensure dependable electrical interconnections in demanding industrial and electronic applications. For more products like this, browse the Connector Housing category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing features a precise 2.54 mm pitch, designed for reliable conductor accommodation.
It has 12 contacts, arranged in a 2-row configuration.
The housing is constructed from polyphenylene oxide (PPO), providing excellent electrical insulation.
This model has a length of 15.24 mm and a width of 7.72 mm, making it suitable for space-limited applications.
It operates within a temperature range of -55°C to +105°C, suitable for demanding environmental conditions.
Yes, it is designed for use with the C-Grid III connector system, ensuring compatibility with modular components.
This model supports cable mount applications, providing flexibility in installation.
Yes, it includes an integral lock-to-mating feature that ensures secure and stable electrical connections.
The orientation of this connector housing is straight, which is typical for many applications.
It is suitable for various applications including medical, pharmaceutical, consumer electronics, and communication systems.
The connector features a polarised mating design that helps prevent misalignment and connection errors during assembly.
The country of origin for this connector housing is India.
