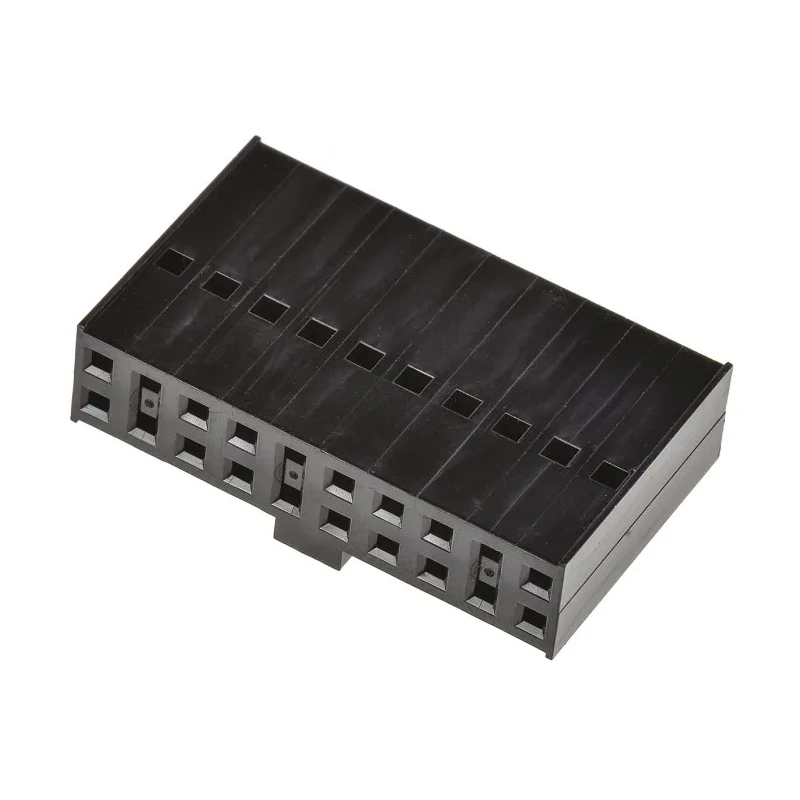

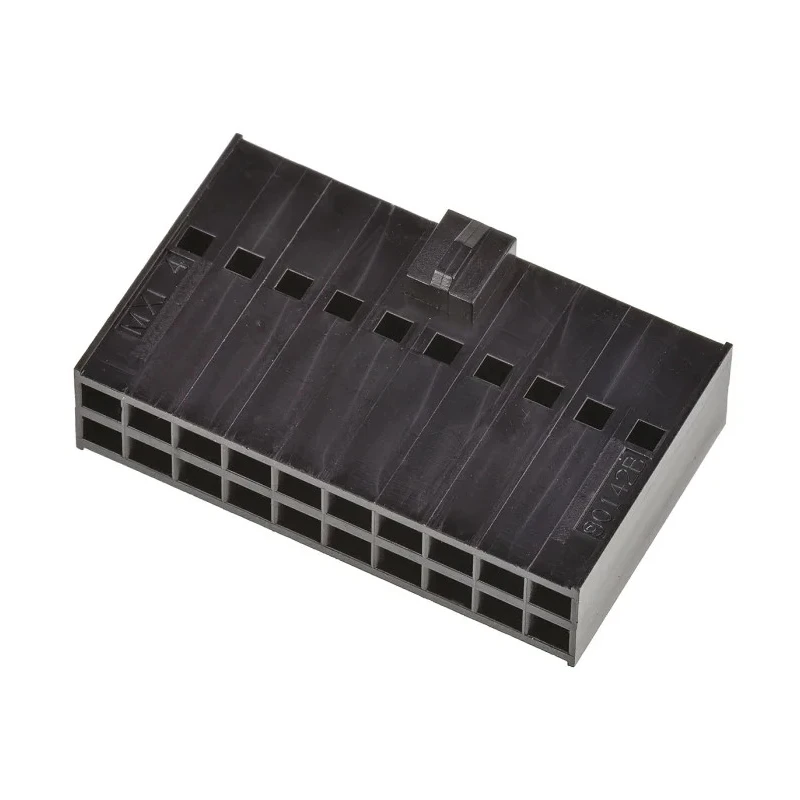

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 20 Way 2 Row Straight 90142-0020
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 25.4mm |
| Width | 7.72mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | C-Grid III |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- Features 20 contacts in a dual row design for efficient connections.
- 2.54 mm pitch ensures safe conductor spacing to prevent electrical hazards.
- Constructed from heat and mechanically resistant nylon housing material.
- Compact dimensions of 25.4 mm length and 7.72 mm width provide space efficiency.
- Integrated mating lock prevents accidental disconnection in vibration-prone systems.
- Operating temperature range of -55°C to +105°C ensures reliable performance in harsh conditions.
- Suitable for personal computers, automotive, robotics, and automation applications.
- Designed specifically for use with the Molex C-Grid III connector series.
Product Description
Molex 90142-0020 is a female connector housing from the C-Grid III series, featuring a 2.54 mm pitch with 20 contacts arranged in 2 straight rows, designed for cable mounting.
Constructed from durable nylon housing material, it offers mechanical and heat resistance, making it suitable for demanding industrial and electronic applications. The housing has compact dimensions of 25.4 mm length, 7.72 mm width, and approximately 15.24 mm depth, optimizing space in constrained electronic enclosures.
The connector includes an integrated mating lock mechanism to secure connections firmly and prevent accidental disconnections even in environments subjected to vibration.
Its operating temperature range from -55°C to +105°C enables reliable performance in diverse conditions including automotive, robotics, personal computer, and automation system applications.
This housing is part of the Molex C-Grid III interconnection system, offering flexible configurations and post and receptacle interconnections for a variety of industrial and commercial uses.
Features 20 contacts in a dual row design for efficient connections. 2.54 mm pitch ensures safe conductor spacing to prevent electrical hazards. Constructed from heat and mechanically resistant nylon housing material. Compact dimensions provide space efficiency in tight enclosures.
Integrated mating lock prevents accidental disconnection in vibration-prone systems. Wide operating temperature range accommodates harsh operating conditions. Compatible with Molex C-Grid III connector series for system integration.
This Molex female connector housing is ideal for applications in electronics manufacturing, automotive wiring, robotics, and computing equipment assembly. Explore more electronics components and Connector Housings on EnvMart to suit diverse industrial, commercial, and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, ensuring safe conductor spacing to prevent electrical hazards.
It features 20 contacts arranged in a dual row design for efficient connections.
The dimensions are 25.4 mm in length, 7.72 mm in width, and approximately 15.24 mm in depth.
The housing is constructed from nylon, which is heat and mechanically resistant.
It operates reliably within a temperature range of -55°C to +105°C.
Yes, it is suitable for applications in personal computers, automotive, robotics, and automation systems.
This model supports cable mounting, making it versatile for various installations.
Yes, it features an integrated mating lock to prevent accidental disconnection, especially in vibration-prone environments.
It is designed specifically for use with the Molex C-Grid III connector series.
The orientation of this connector housing is straight, allowing for straightforward connections.
The country of origin for this connector housing is India.
Its compact dimensions allow for space efficiency in constrained electronic enclosures, making it suitable for tight installations.
