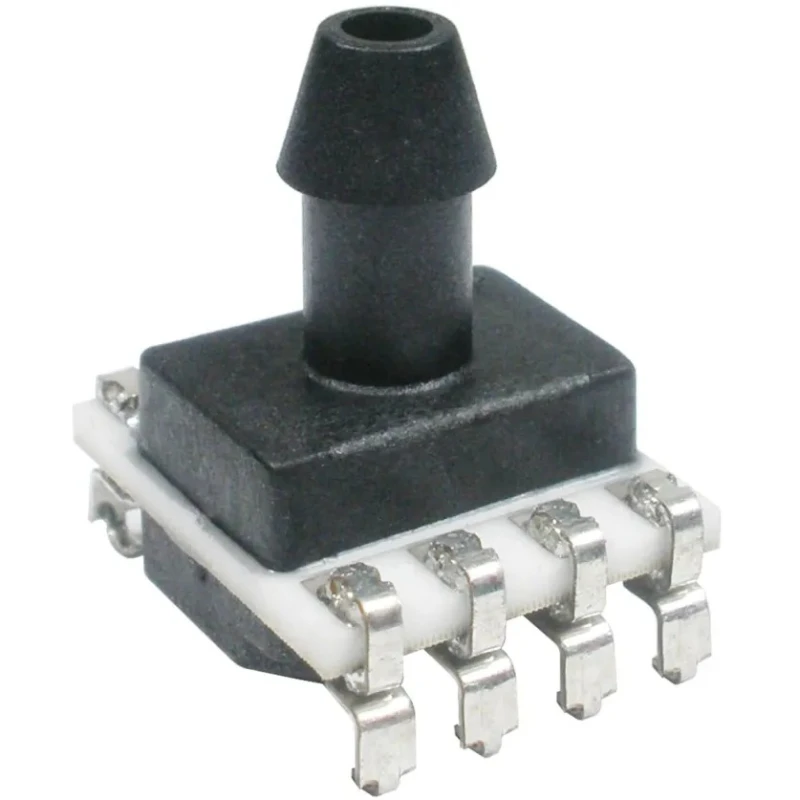

Honeywell Technologies Pressure Sensor Board SMT 8-Pin Piezoresistive, 1 bar Max Pressure, ±0.25% Accuracy, HSCMANV001BA2A3

Honeywell Technologies HSCMANV001BA2A3 Pressure Sensor Board SMT 8-Pin is an absolute piezoresistive pressure sensor IC designed for precise measurement of absolute pressure up to 1 bar maximum operating pressure with ±0.25% full-scale accuracy. It operates from a minimum supply voltage of 3.3V up to 5V, making it adaptable for diverse system requirements.

This SMT package device features an 8-pin board mount with a single axial barbed port, simplifying integration into PCBs for industrial, medical, HVAC, and scientific instrumentation applications. The sensor's built-in ASIC calibrates and compensates for offset sensitivity and linearity, significantly reducing software correction effort.

Operating temperature ranges from -20°C to +85°C, with calibrated compensation between 0°C and 50°C to ensure stable readings at typical operational temperatures. The sensor supports fast analog output updates of about 1 kHz and digital output (14-bit) at 2 kHz, useful for rapid data acquisition systems in respiratory machines, ventilators, chromatography analysers, and oxygen concentrators.

Robustly designed, this sensor is suited for airflow monitoring, HVAC transmitters, clogged filter detection, and medical devices such as spirometers and nebulisers. It accepts non-corrosive, non-ionic gases through its single axial barbed pressure port, enabling varied industrial and healthcare applications. The sensor conforms to ISO 9001 quality standards, underscoring its reliability and manufacturing excellence.

This sensor operates from 3.3V to 5V supply voltage for versatile system design. Designed for board mounting with an SMT 8-pin package enabling easy PCB integration. Features built-in ASIC for offset sensitivity and non-linearity corrections ensuring reliable pressure readings.

Operates over a temperature range of -20°C to +85°C with compensated accuracy at 0°C to 50°C. Suitable for non-corrosive, non-ionic gases in medical, industrial, and HVAC applications. Fast update rates of approximately 1 kHz analog and 2 kHz digital support rapid response needs.

Uses a single axial barbed port for straightforward pressure connection. Certified under ISO 9001 standards ensuring quality and reliability.
