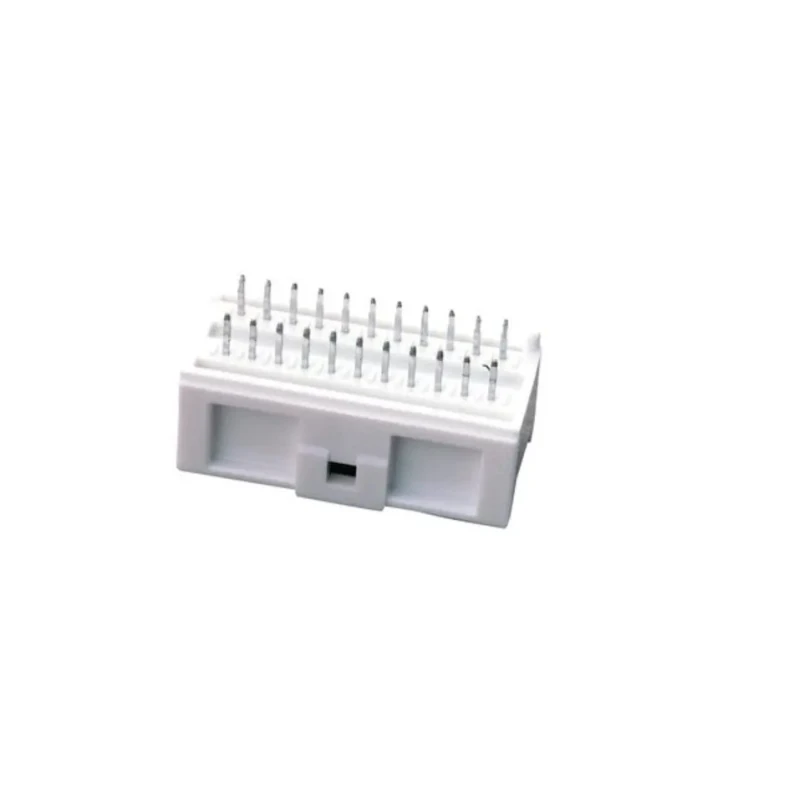

Molex MicroClasp Series Vertical Through Hole 24 Contact PCB Header, 2 mm Pitch, 2 Row, Shrouded 559172410
Specifications
| Country of Origin | Vietnam |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Tin |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | UL E29179 |
| Contact Plating | Tin |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
Key Features
- Constructed with durable polyester housing material.
- Designed for through hole mounting on PCBs with a vertical orientation.
- Contacts are male with tin plating and solder termination type.
- Operates reliably within a temperature range of -40°C to 105°C.
- Rated for a maximum current of 3A and voltage of 250V.
- Tail pin length measures 3.2 mm for secure soldering.
- Complies with UL E29179 standards for safety and quality.
- Includes PCB locator for precise placement and assembly.
Product Description
The Molex 559172410 PCB Header belongs to the MicroClasp Series, designed as a vertical orientation through hole connector with 24 contacts arranged in 2 rows. This component is made from polyester housing material with tin-plated male contacts, ensuring reliable solder termination and excellent conductivity for electronic assemblies.
Its 2 mm pitch and 3.2 mm tail pin length make it suitable for compact PCB layouts while maintaining secure mechanical and electrical connections. The fully shrouded design protects the contacts and prevents unintended mismating, increasing connector life and reliability.
Engineered to withstand operating temperatures ranging from -40°C to 105°C, it is suited for a range of industrial and commercial applications including electronic manufacturing, embedded systems, and power distribution boards. Rated at 3 amperes and 250 volts, it offers robust performance in demanding electrical environments.
This PCB header complies with the UL E29179 standards, assuring quality and safety for diverse electronic projects. The inclusion of a PCB locator facilitates precise alignment during assembly, minimizing manufacturing defects.
Manufactured in Vietnam, the product is provided in a tray packaging format to support efficient handling and inventory management. The Molex MicroClasp Series header is ideal for wire-to-board connection requirements in industrial, laboratory, manufacturing, and commercial electronics sectors.
Durable polyester housing material for insulation and mechanical stability. Vertical through hole mounting type for strong mechanical connection. Male tin-plated contacts with solder termination for reliable electrical contact.
Wide temperature operating range from -40°C to 105°C for versatility. UL E29179 standard compliance ensuring safety and performance. PCB locator included for accurate board placement during assembly. Rated for 3A current and 250V voltage suitable for various applications.
Shrouded design for enhanced contact protection and durability. Manufactured in Vietnam under new product condition specifications. Packaged in trays facilitating bulk handling and usage. Explore more Molex products and PCB connectors at EnvMart for your industrial and electronic component needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a maximum current of 3A and a maximum voltage of 250V.
It features a 2 mm pitch and has 24 contacts arranged in 2 rows.
The operating temperature range is from -40°C to 105°C, making it suitable for various environments.
This model is designed for through hole mounting on PCBs with a vertical orientation.
It is constructed with a durable polyester housing and features male contacts with tin plating.
Yes, it complies with UL E29179 standards for safety and quality.
The tail pin length measures 3.2 mm, ensuring secure soldering during assembly.
It utilizes a wire-to-board connector system, suitable for various electronic applications.
The fully shrouded design protects the contacts and prevents unintended mismating, enhancing reliability.
This product is manufactured in Vietnam.
It is provided in a tray packaging format to support efficient handling and inventory management.
It is suitable for a range of industrial and commercial applications, including electronic manufacturing and power distribution boards.
