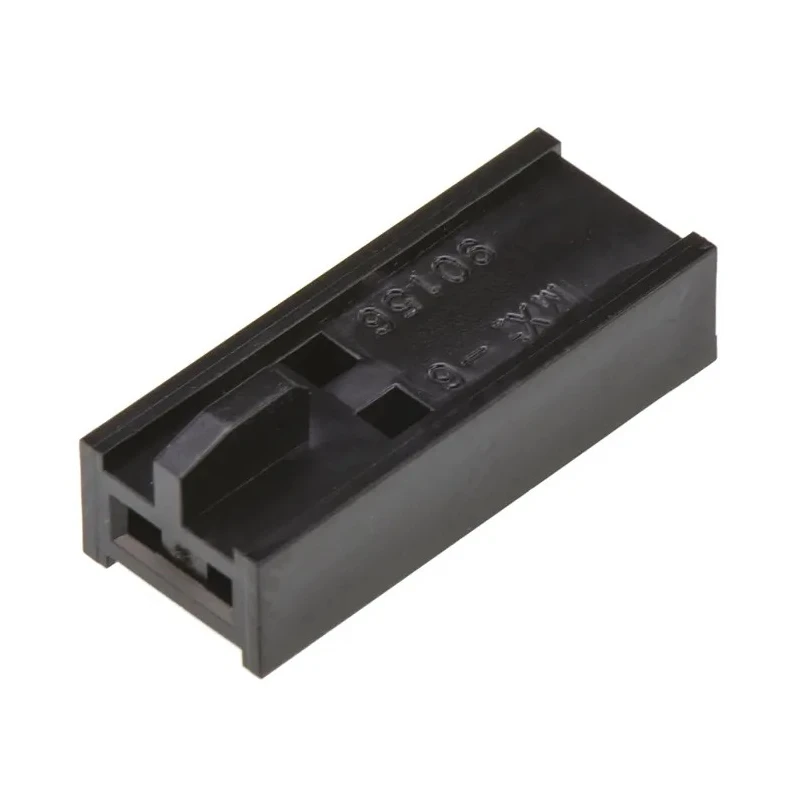

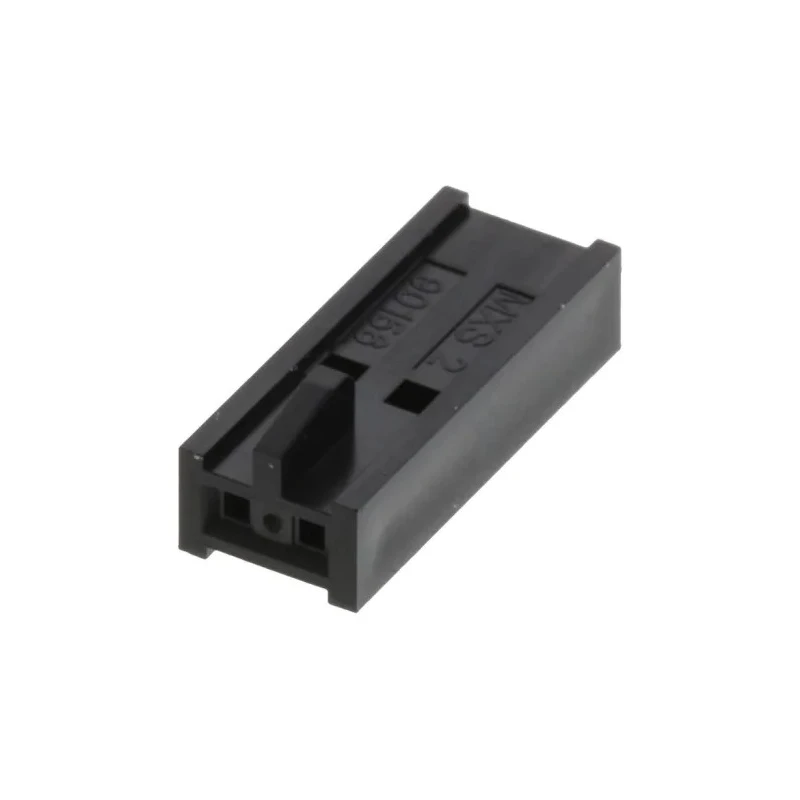

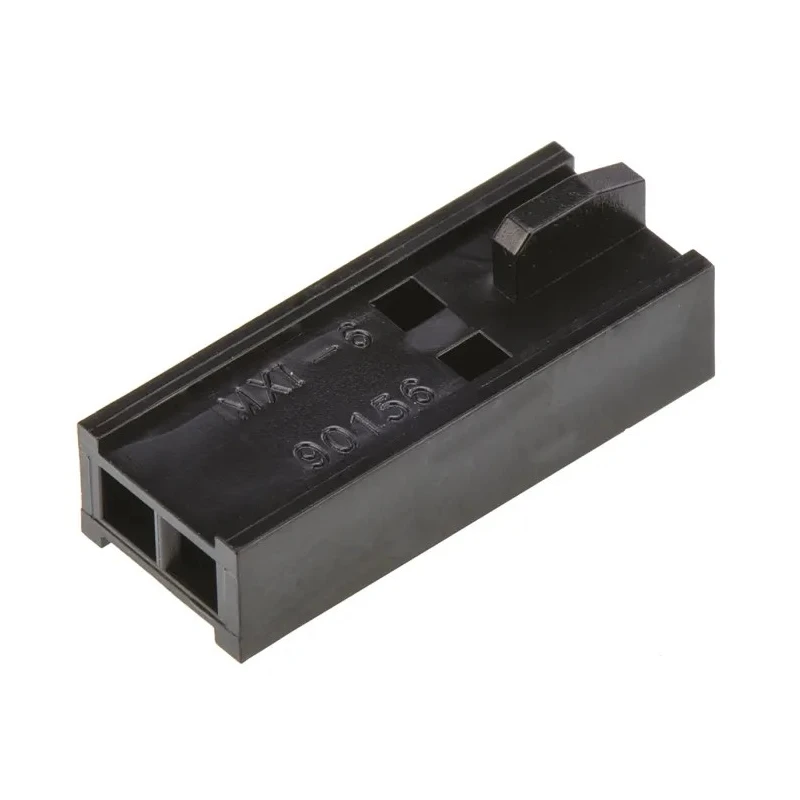

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 2 Way 1 Row Straight 90156-0142
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 6.14mm |
| Width | 5.35mm |
| Mount Type | Panel |
| Housing Material | Polyphenylene Oxide |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 2 |
| Connector Gender | Female |
Key Features
- Compact size with dimensions 6.14 mm (L) x 5.35 mm (W) x 15.24 mm (D) ensures space-saving PCB installation.
- Constructed from durable polyphenylene oxide for chemical resistance and robustness.
- Supports up to 2 contacts in a single row configuration with 2.54 mm pitch.
- Features a uniform locking system compatible with standard conductors for ease of assembly.
- Rated for a maximum current of 3 A per contact, suitable for low power electronic devices.
- Operates reliably within a temperature range of -55°C to +105°C for harsh environments.
- Orientation is straight and mount type is panel mounting to facilitate integration.
- Black color housing providing standard aesthetic and identification.
Product Description
Molex 90156-0142 Female Connector Housing is part of the C-Grid III series designed for wire-to-board interconnection with a 2.54 mm pitch, 2 way, and 1 row straight configuration. This connector housing is manufactured from rugged polyphenylene oxide material that offers chemical resistance and durability for demanding industrial and electronic applications.
Dimensions include 6.14 mm length, 5.35 mm width, and 15.24 mm depth, providing a compact footprint suitable for space-constrained PCB assemblies. The housing accommodates two contacts, supporting a maximum current of 3 A per contact, and incorporates a uniform locking system compatible with standard conductor sizes.
Its panel mount type and straight orientation enable easy integration within a variety of electronic devices. The product performs reliably in temperature extremes from -55°C up to +105°C, making it suitable for harsh and challenging environments.
Applications for this connector include consumer electronics, medical instrumentation, measuring and test equipment, and various industrial control instruments, emphasizing versatility across commercial and industrial sectors.
Compact and space-saving design for PCBs. Durable PPO material construction. Uniform locking system for compatibility. Supports 2 way connections in 1 row. Rated for 3 A max current per contact. Wide operating temperature range.
Panel mount, straight orientation. Black color housing. Suitable for industrial and medical applications.
Choose Molex C-Grid III connector housings for reliable, modular, and customizable PCB interconnections with industry-standard quality. Browse more Molex products and related Connector Housings in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions are 6.14 mm in length, 5.35 mm in width, and 15.24 mm in depth.
It is rated for a maximum current of 3 A per contact.
The housing is constructed from polyphenylene oxide, which offers chemical resistance and durability.
The pitch size is 2.54 mm.
It supports up to 2 contacts in a single row configuration.
The orientation is straight and the mount type is panel mounting.
It operates reliably within a temperature range of -55°C to +105°C.
This connector housing is part of the C-Grid III series.
It is suitable for consumer electronics, medical instrumentation, measuring and test equipment, and various industrial control instruments.
Yes, it features a uniform locking system compatible with standard conductors for ease of assembly.
The connector gender is female.
It is manufactured in Indonesia.
