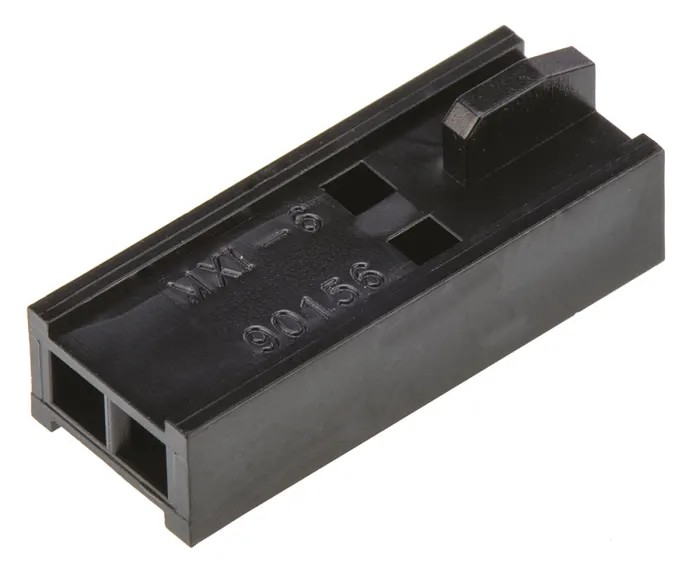

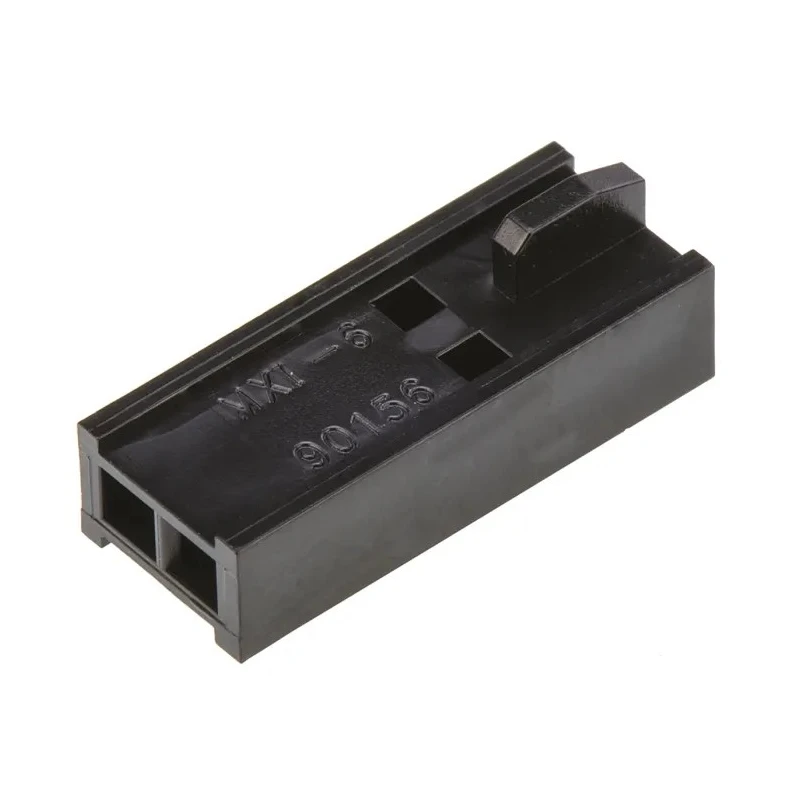

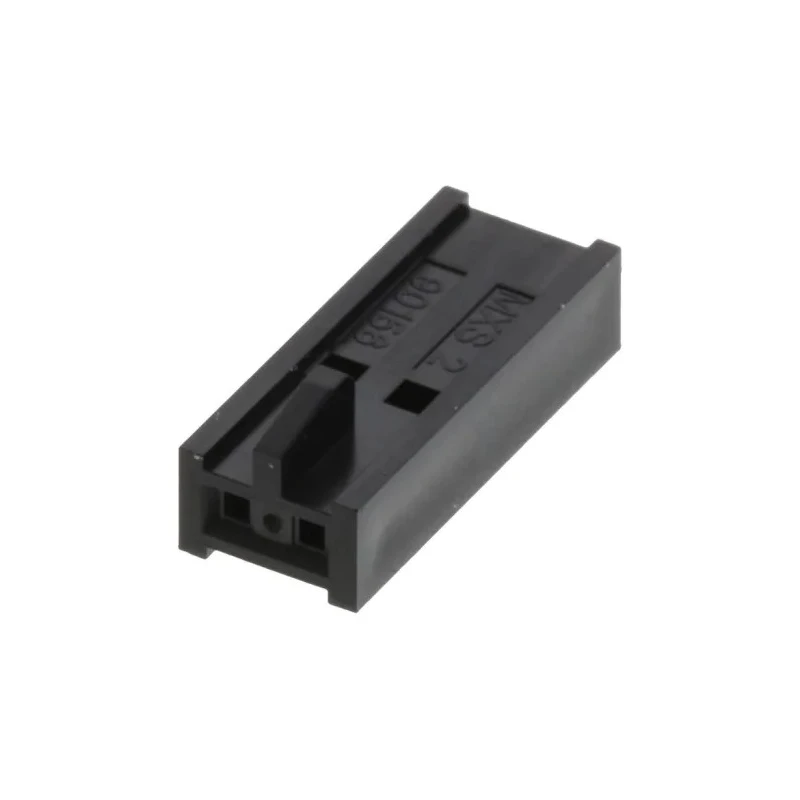

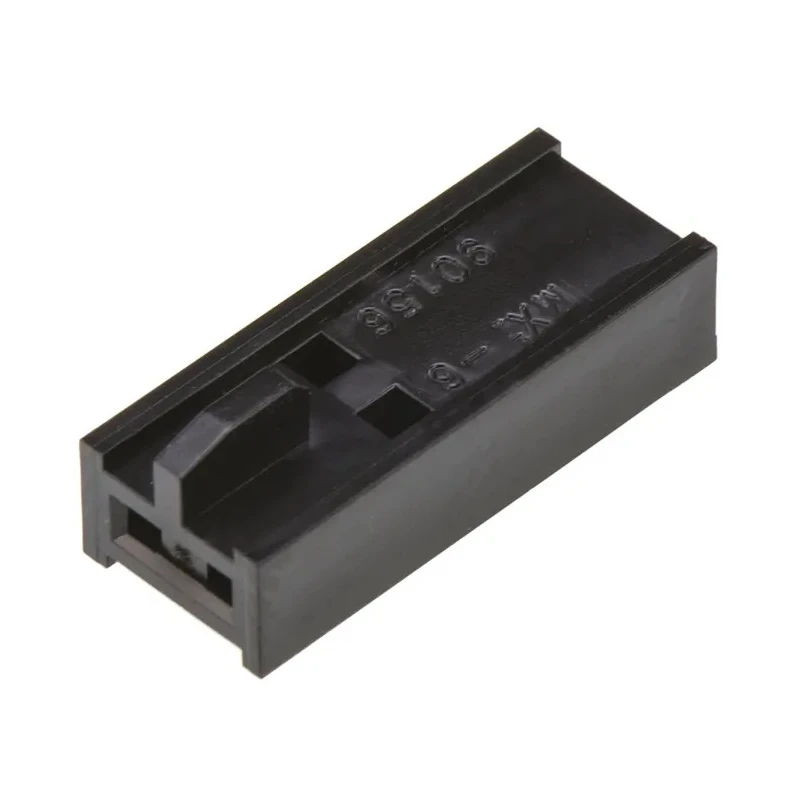

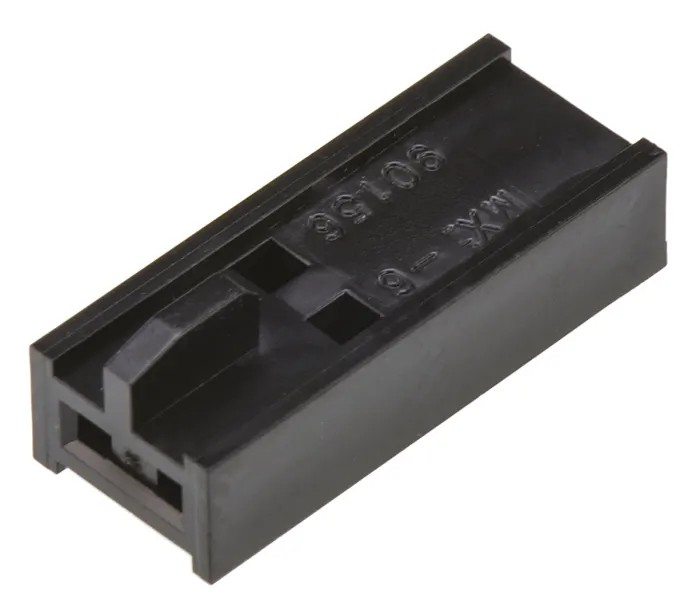

Molex C-Grid III Female Connector Housing 2.54 mm Pitch 2 Way 1 Row Straight 90156-0142

Molex 90156-0142 is a female connector housing from the C-Grid III series featuring a 2.54 mm pitch, with 2 contacts arranged in a single row. This connector housing is constructed from rugged Polyphenylene Oxide (PPO), providing excellent resistance against chemical damage and mechanical wear, ensuring durability in demanding environments.

Its compact dimensions of 6.14 mm length and 5.35 mm width allow space-saving installation on printed circuit boards. The robust design supports up to 3 A maximum current per contact, suitable for a variety of electrical applications requiring reliable connections.

The housing features a uniform locking system to secure standard conductor types, promoting dependable wire-to-board interfaces. Its straight orientation and panel mounting style simplify installation and system integration.

Designed for flexibility, the C-Grid III interconnection system enables modular and expandable PCB assemblies, accommodating up to 80 circuits in various configurations. This 2-way connector is optimized for use in consumer electronics, medical devices, industrial control instruments, and testing and measuring equipment.

Operating temperature range extends from -55°C to +105°C, making it suitable for harsh industrial environments. The black connector housing ensures clear identification and aesthetic integration.

Durable Polyphenylene Oxide housing material ensures chemical resistance and longevity. Compact and lightweight design suits dense PCB configurations. 3 A maximum current rating per contact for stable electrical performance.

Uniform locking system enables secure and standardized conductor connections. Modular C-Grid III system allows flexible interconnection options. Wide operating temperature range from -55°C to +105°C. Panel mount and straight orientation enhance ease of assembly and maintenance.

This connector housing is ideal for industrial, electronic manufacturing, medical instrumentation, and control system applications. It enables engineers to customize their wiring harnesses with reliable, high-quality connections.
