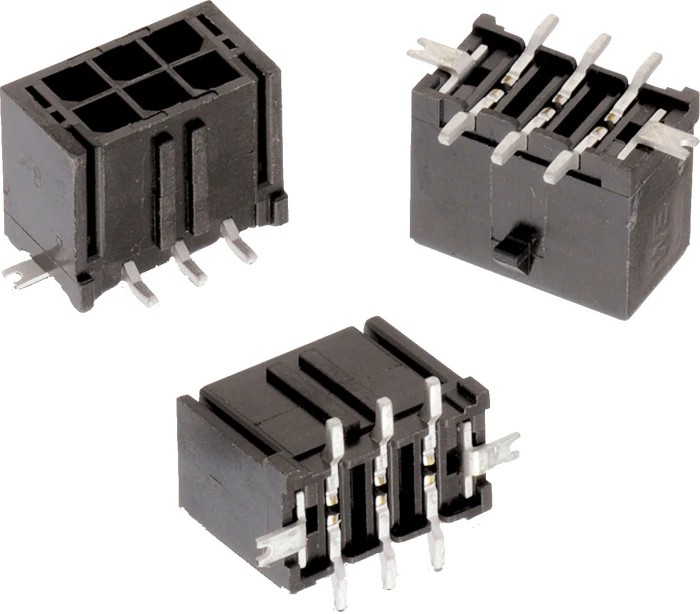

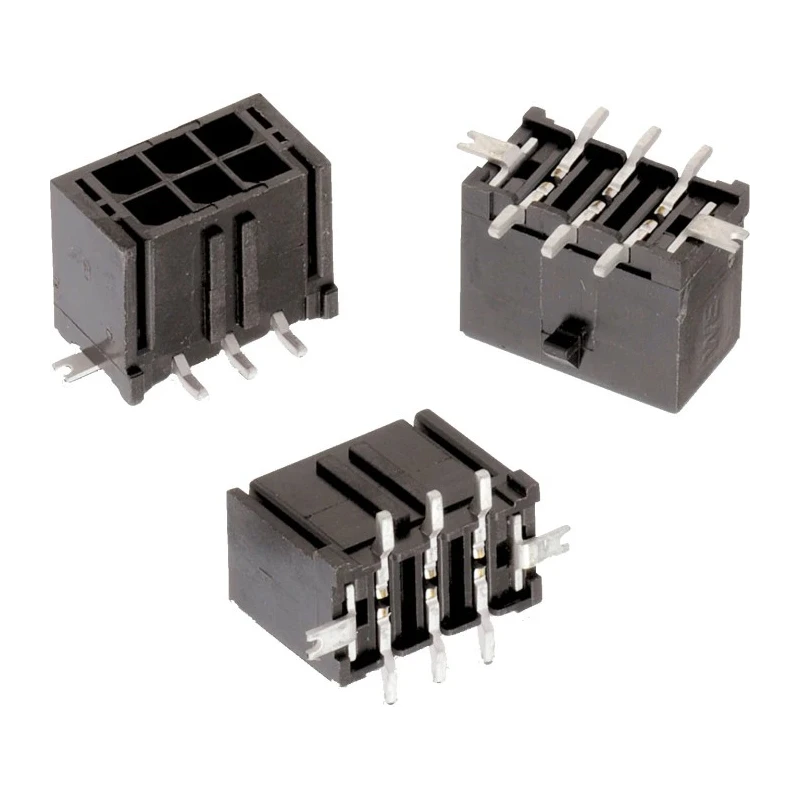

Wurth Elektronik WR-MPC3 Series Vertical Surface PCB Header, 12 Contacts, 3 mm Pitch, 2 Row, Shrouded MPC3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Supports maximum current rating of 5A.
- Contacts made of copper alloy with tin plating for enhanced conductivity.
- Designed for vertical orientation and surface mounting on PCBs.
- Operates reliably within -40°C to 105°C temperature range.
- Shrouded design provides protection and polarization for mating connectors.
- Rated for voltage up to 250V for versatile applications.
- Male contact gender with solder termination ensures strong electrical connections.
Product Description
Wurth Elektronik MPC3 series vertical surface PCB header is a high-quality electronic component designed for secure wire-to-board connections in various electronic and industrial applications. Featuring 12 male contacts arranged in 2 rows with a 3 mm pitch, this shrouded header is manufactured using liquid crystal polymer (LCP) housing that provides excellent mechanical strength and heat resistance.
The contact material is copper alloy plated with tin, ensuring robust conductivity and corrosion resistance. The header is rated for a maximum current of 5 amperes and a voltage of up to 250 volts, making it suitable for moderate power electronic circuits.
Its vertical orientation and surface mount type allow easy placement on printed circuit boards (PCBs), facilitating efficient board layouts and assembly. With a minimum operating temperature of -40°C and maximum of 105°C, this connector maintains stable performance under a wide range of environmental conditions.
The shrouded design adds protection against mechanical damage and ensures proper connector mating, enhancing the durability and reliability of the electronic assembly. The solder termination type guarantees secure mounting and electrical continuity.
This product is made in Taiwan, Province Of China, adhering to quality manufacturing standards. Ideal for applications in industrial electronics, communications, automation, and consumer electronics where reliable PCB connections are essential.
Constructed with liquid crystal polymer housing for durability. Supports maximum current rating of 5A. Contacts made of copper alloy with tin plating for enhanced conductivity. Designed for vertical orientation and surface mounting on PCBs.
Operates reliably within -40°C to 105°C temperature range. Shrouded design provides protection and polarization for mating connectors. Rated for voltage up to 250V for versatile applications. Male contact gender with solder termination ensures strong electrical connections.
Explore the wide range of PCB Headers and connectors available on EnvMart to find components matching your design and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 5A.
This header is rated for a voltage of up to 250V.
The contacts are made of copper alloy and are plated with tin to enhance conductivity.
It operates reliably within a temperature range of -40°C to 105°C.
This model features 12 contacts arranged in 2 rows.
The header uses a solder termination type, ensuring strong electrical connections.
The pitch of the contacts is 3 mm.
This header is designed for vertical orientation.
It is designed for surface mounting on PCBs.
The housing is constructed from liquid crystal polymer (LCP).
This model features a shrouded design, which provides protection and polarization for mating connectors.
This product is made in Taiwan, Province Of China.
