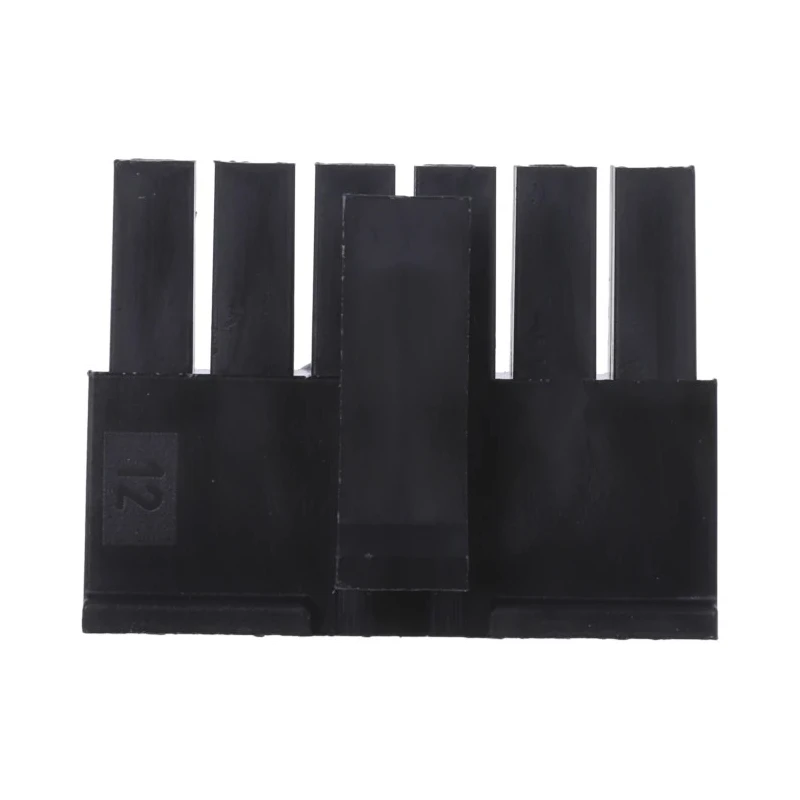

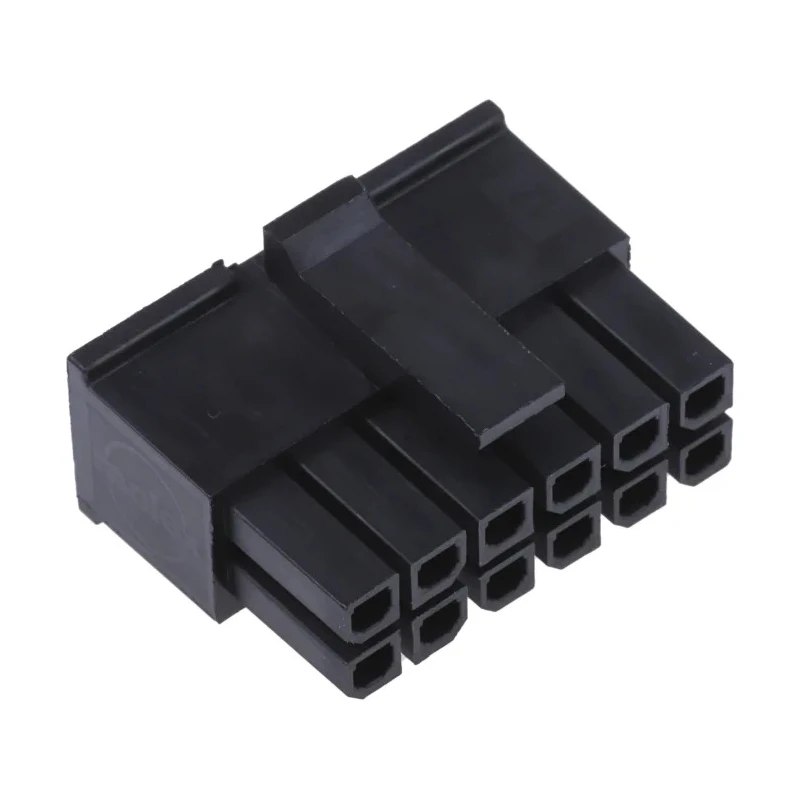

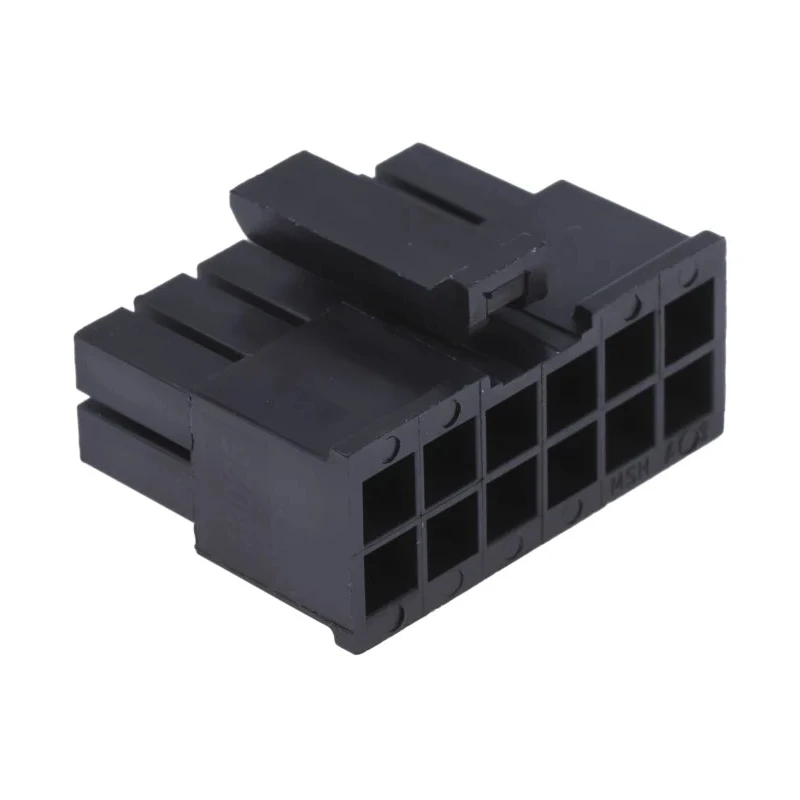

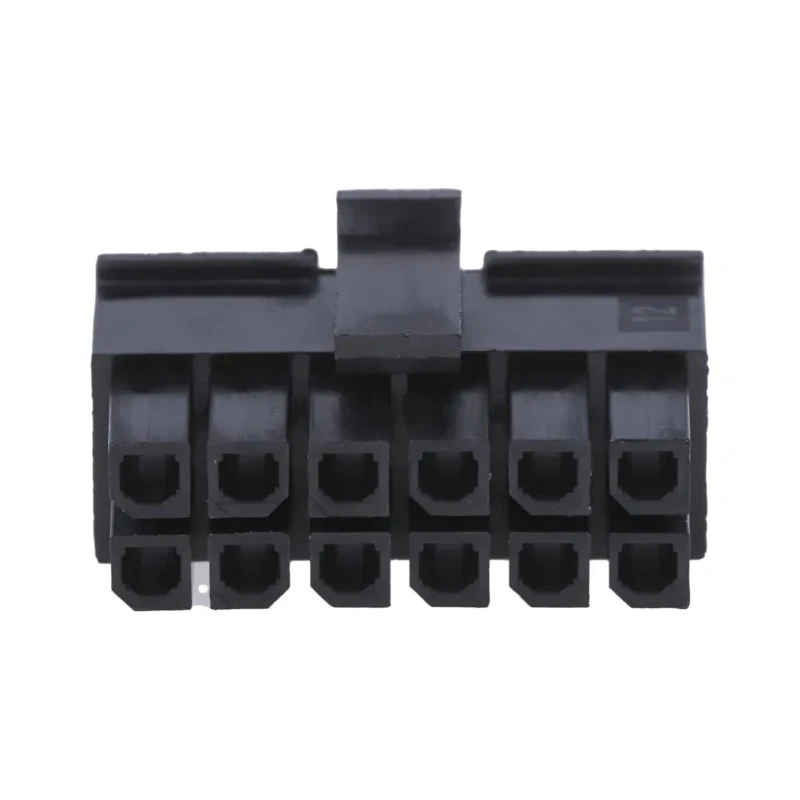

Molex Micro-Fit 3.0 Female Connector Housing, 12 Way, 2 Row, 3 mm Pitch, Straight Orientation 43025-1200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 18.85mm |
| Width | 8.28mm |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Series | Micro-Fit 3.0 |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Micro-Fit 3.0 Receptacle |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- This female connector housing features a straight orientation for efficient cable management.
- Constructed from durable polyethylene terephthalate (PET) material for excellent electrical insulation.
- Positive locking design ensures secure connections preventing loosening under heavy vibration.
- Compact dimensions of 18.85 mm length x 8.28 mm width x 14 mm depth suitable for tight spaces.
- Wide operating temperature range from -40°C to +105°C for use in demanding environments.
- Fully polarised ports to prevent misalignment and damage during mating.
- Designed for wire-to-wire and wire-to-board applications with Micro-Fit 3.0 receptacles.
- Lightweight at approximately 1.282 grams to reduce strain on equipment.
Product Description
Molex 43025-1200 Micro-Fit 3.0 Female Connector Housing is a precision-engineered connector housing featuring 12 contacts arranged in a dual-row, 3 mm pitch format. Designed to facilitate reliable electrical connections in compact spaces, this straight orientation housing is an ideal solution for wire-to-wire and wire-to-board applications.
Manufactured from polyethylene terephthalate (PET), the housing provides robust electrical insulation and mechanical strength, supporting operation in temperature ranges from -40°C to +105°C. The positive locking mechanism and fully polarised ports ensure a secure, damage-free connection that remains stable even in environments with vibration or movement.
The housing measures 18.85 mm in length, 8.28 mm in width, and 14 mm in depth, offering a compact form factor suitable for space-constrained designs. With a lightweight construction of approximately 1.282 grams, it minimizes bulk and stress on connected equipment.
This component is widely utilized in diverse industrial segments including commercial printing equipment, automotive industry applications, and domestic appliances where dependable connector solutions are essential.
This housing features a positive locking design for secure mate retention. Fully polarised ports eliminate the risk of mismating connectors. The compact design saves valuable PCB space. Durable PET material offers excellent electrical insulation and mechanical strength.
Supports a wide temperature range to handle various operating environments. Ideal for Micro-Fit 3.0 series connectors providing versatility in wiring configurations. Straight body orientation simplifies connection layout and cable management.
Lightweight to reduce mechanical strain on assemblies. Meets industrial needs across automotive, printing, and consumer appliance sectors. Explore more in our Electronics Components category for compatible Connector Housing solutions designed to optimize your electronic system assembly and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3 mm, which is suitable for Micro-Fit 3.0 series connectors.
This model has dimensions of 18.85 mm in length, 8.28 mm in width, and 14 mm in depth.
The housing is constructed from polyethylene terephthalate (PET), providing excellent electrical insulation and mechanical strength.
It operates within a wide temperature range of -40°C to +105°C, making it suitable for demanding environments.
This connector housing features 12 contacts arranged in a dual-row configuration.
It is designed for wire-to-wire and wire-to-board applications, particularly with Micro-Fit 3.0 receptacles.
The housing weighs approximately 1.282 grams, which helps reduce strain on connected equipment.
Yes, it features a positive locking design that ensures secure connections and prevents loosening under heavy vibration.
This connector housing has a straight orientation, which aids in efficient cable management.
It uses a cable mount type, making it suitable for various installation scenarios.
Yes, the ports are fully polarised to prevent misalignment and damage during mating.
The country of origin for this connector housing is China.
