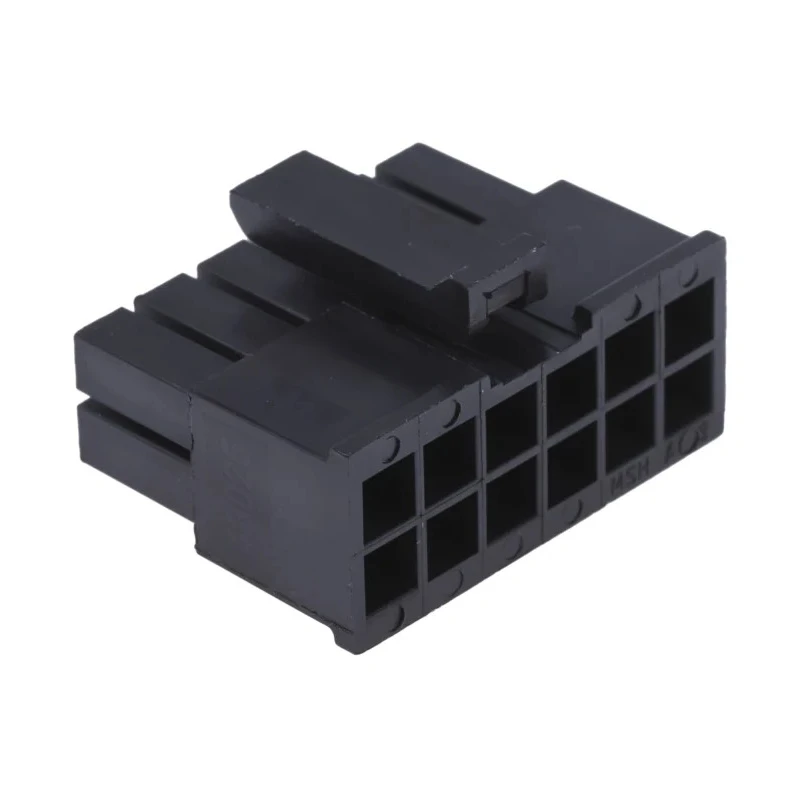

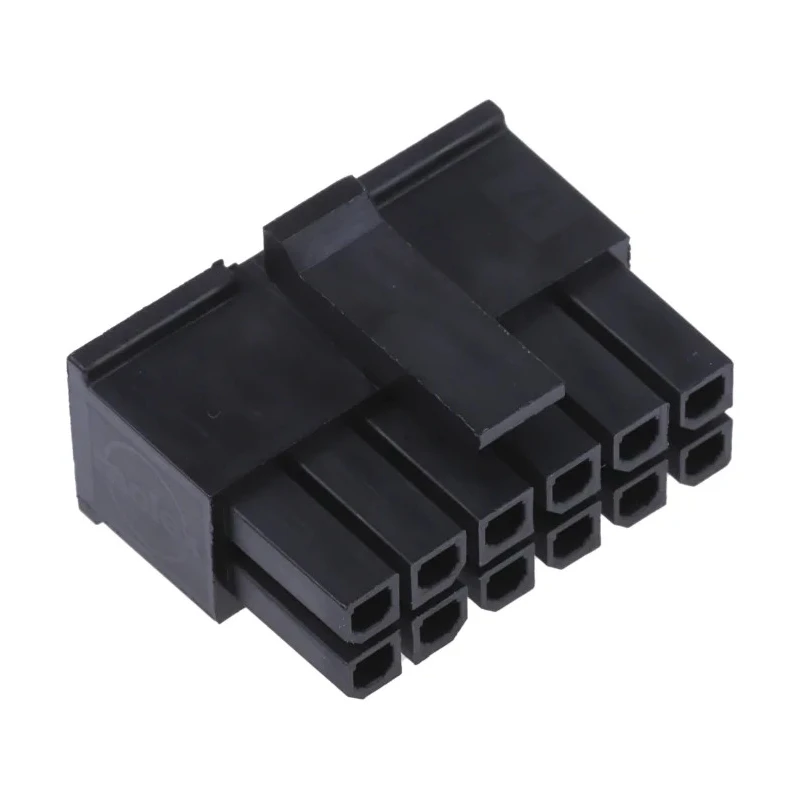

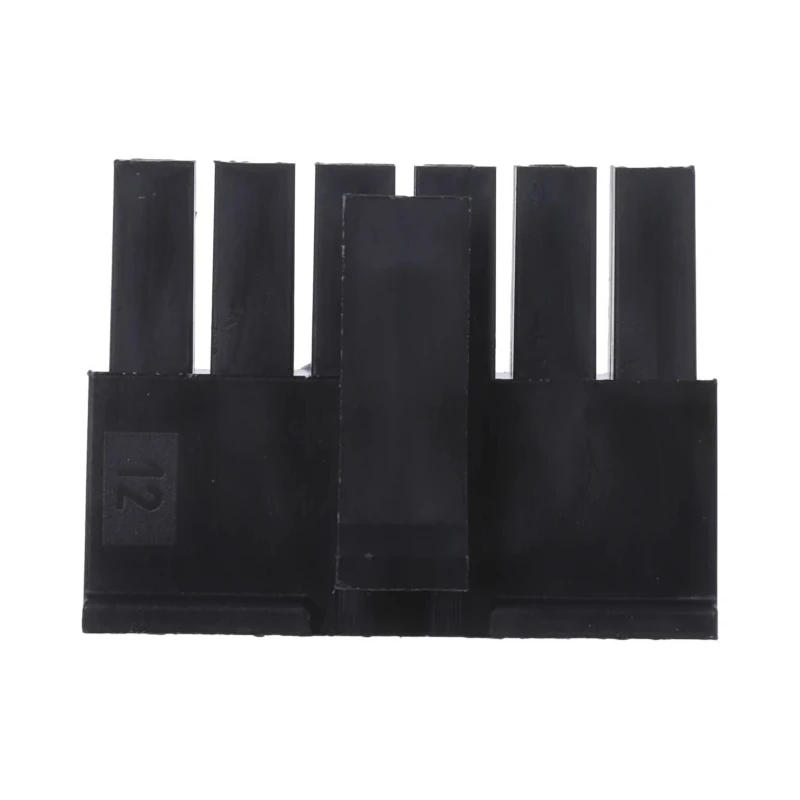

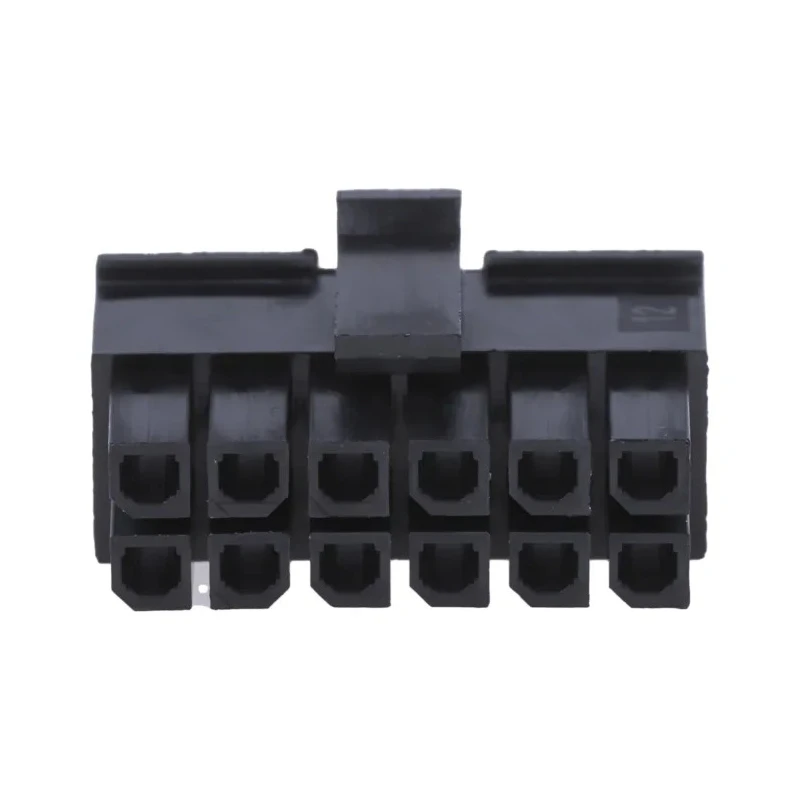

Molex Micro-Fit 3.0 Female Connector Housing 12 Way 2 Row Straight 3 mm Pitch 43025-1200
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 18.85mm |
| Width | 8.28mm |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Series | Micro-Fit 3.0 |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Micro-Fit 3.0 Receptacle |
| Number of Contacts | 12 |
| Connector Gender | Female |
Key Features
- Features 12 contacts arranged in two rows for multiple secure connections.
- Supports a pitch of 3 mm to optimize space efficiency on circuits.
- Constructed from polyethylene terephthalate (PET) material for electrical insulation.
- Offers straight body orientation for neat and simple cable management.
- Compact size of 18.85 mm length by 8.28 mm width and 14 mm depth fits tight spaces.
- Operates reliably in temperatures ranging from -40°C to +105°C.
- Positive locking mechanism ensures secure mating under vibration conditions.
- Fully polarized design prevents connection errors and damage.
Product Description
Molex 43025-1200 Micro-Fit 3.0 Female Connector Housing, a 12 Way 2 Row Straight connector housing with 3 mm pitch, provides an ideal solution for compact and reliable electrical connections in diverse industrial and commercial applications.
This housing features a positive locking mechanism and full polarization to ensure secure and error-free connections. Its construction from durable polyethylene terephthalate (PET) offers excellent electrical insulation and resistance under heavy vibration and temperature extremes from -40°C to 105°C.
Measuring 18.85 mm in length, 8.28 mm in width, and 14 mm in depth, this lightweight (1.282 g) connector housing is designed to accommodate multiple connections while minimizing installation space and weight.
Common applications include automotive electrical systems, commercial printing equipment, and domestic appliances where dependable wire-to-wire or wire-to-board connections are essential.
Housings are black in color and provide a fully polarised interface to prevent mismating. Designed for use with Micro-Fit 3.0 receptacles for versatile interconnect solutions. Compact and efficient 3 mm pitch spacing maximizes PCB layout density.
Durable PET construction provides electrical insulation and mechanical stability. Positive locking design prevents accidental disconnection in demanding environments. Dual-row 12 contact configuration supports complex wiring requirements.
This connector housing is part of Molex's renowned Micro-Fit 3.0 series, known for combining compact size with reliable performance. It is ideal for industrial, manufacturing, automotive, and electrical engineering sectors requiring robust connector solutions.
Explore more Molex Connector Housings and related electronic components with EnvMart for your specialized electrical and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3 mm, which helps optimize space efficiency on circuits.
It features 12 contacts arranged in two rows, allowing for multiple secure connections.
This connector housing operates reliably in temperatures ranging from -40°C to +105°C.
The housing is constructed from polyethylene terephthalate (PET), providing excellent electrical insulation.
The dimensions are 18.85 mm in length, 8.28 mm in width, and 14 mm in depth.
It has a straight orientation, which facilitates neat and simple cable management.
This model is designed for use with Micro-Fit 3.0 receptacles, ensuring compatibility for interconnect solutions.
The weight of this connector housing is 1.282 grams, making it lightweight and suitable for compact applications.
Yes, it features a positive locking mechanism that ensures secure mating under vibration conditions.
Common applications include automotive electrical systems, commercial printing equipment, and domestic appliances.
Yes, it offers a fully polarized design to prevent connection errors and damage during installation.
This connector housing is female, designed to accommodate corresponding male connectors.
