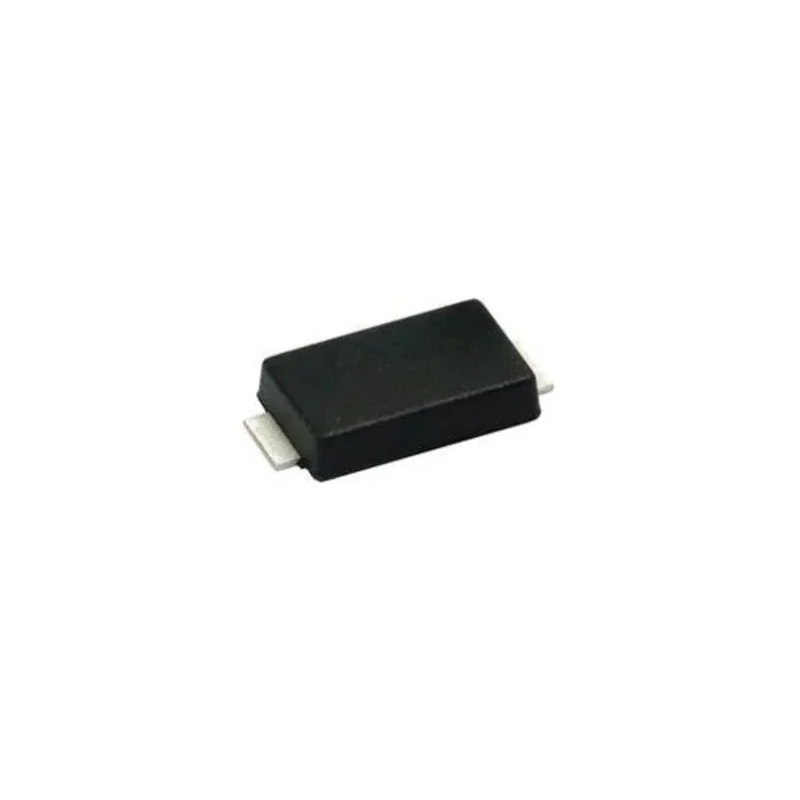

Vishay Uni-Directional TVS Diode 600 W Peak Pulse Power Surface Mount DO-221 Package SMA6F54A-M3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 4.35mm |
| Model | SMA6F54A-M3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 87V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 60V |
| Maximum Reverse Stand-off Voltage Vwm | 54V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 35.5A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for transient voltage suppression with uni-directional polarity.
- Features a 54 V maximum reverse stand-off voltage and 60 V minimum breakdown voltage.
- Clamping voltage rated at 87 V ensures excellent protection against voltage spikes.
- Supports a maximum peak pulse current of 35.5 A for robust transient handling.
- Operational temperature range spans from -55°C to 175°C for broad application.
- Compact dimensions with a height of 1 mm, length of 4.35 mm, and width of 2.7 mm.
- ESD protection is included to safeguard sensitive electronic components.
- Ideal for use in consumer electronics, computers, industrial, telecommunications, and sensor units.
Product Description
Vishay SMA6F54A-M3/H is a uni-directional transient voltage suppression diode delivering 600 W peak pulse power in a compact DO-221 surface mount package. Designed to protect sensitive electronics against voltage transients induced by inductive load switching and lightning surges, this diode features a 54 V maximum reverse stand-off voltage and a 60 V minimum breakdown voltage.
The device's excellent clamping capability at 87 V and a high peak pulse current rating of 35.5 A provide reliable transient suppression for ICs, MOSFETs, and signal lines in a variety of industrial, telecommunications, and commercial applications. The diode is constructed to operate over a wide temperature range from -55°C up to 175°C, ensuring performance stability in harsh environments.
Its low profile with a typical height of 1 mm facilitates automated placement on printed circuit boards, meeting MSL level 1 standards per J-STD-020 with a peak reflow temperature capability of 260°C. This diode is compliant with RoHS requirements and integrates ESD protection for enhanced component safety.
Uni-directional polarity for straightforward protection schemes. Surface mount DO-221 package for ease of assembly. Peak pulse power rating of 600 W for transient robustness. Wide operational temperature ensures versatility.
Compact size suitable for high-density board designs.
The Vishay SMA6F54A-M3/H TVS Diode is suitable for industrial, laboratory, computer, telecommunications, and consumer electronic devices where overvoltage protection is critical. Its durable design and high-performance specifications make it a reliable choice for safeguarding sensitive electronic components against transient voltage spikes.
Explore our Electronics & Electricals category for additional semiconductor devices and protect your circuits with industry-leading components available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power rating of this model is 600 W, providing robust transient voltage suppression capabilities.
The clamping voltage is rated at 87 V, which helps in protecting sensitive components from voltage spikes.
This diode operates within a temperature range of -55°C to 175°C, making it suitable for various environmental conditions.
The maximum peak pulse current is 35.5 A, allowing for effective transient handling in applications.
This model has compact dimensions: height of 1 mm, length of 4.35 mm, and width of 2.7 mm.
The diode is packaged in a surface mount DO-221 package, facilitating easy assembly on printed circuit boards.
The diode configuration is single, designed for uni-directional voltage suppression applications.
Yes, ESD protection is integrated to safeguard sensitive electronic components from electrostatic discharge.
The minimum breakdown voltage is 60 V, ensuring reliable operation under transient conditions.
The country of origin for this product is India.
