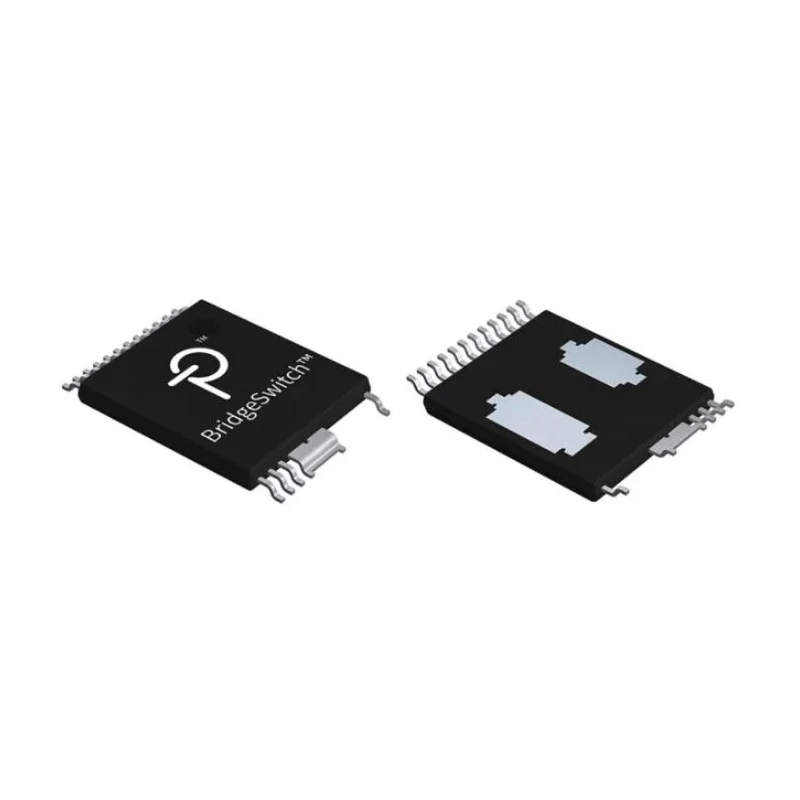

Power Integrations Brushless Motor Driver IC 24-Pin InSOP-C 3A Output Current BRD1163C-TL

Power Integrations BRD1163C-TL is a brushless motor driver integrated circuit packaged in a compact 24-pin InSOP-C surface mount format. Designed for half bridge configurations, this motor driver IC is ideal for controlling 1- or 3-phase permanent magnet or brushless DC motors in industrial, automotive, and consumer electronics applications.

This device supports a maximum output current of 3 amperes and a maximum supply voltage rating of 50 volts, making it suitable for high-voltage inverter-driven motor solutions. With a typical switching frequency of 20 kHz, it ensures efficient and precise motor operation.

The BRD1163C-TL incorporates advanced features such as adjustable cycle-by-cycle current limiting, adaptive dead time control, and simultaneous conduction lockout protection to prevent shoot-through, enhancing reliability and system protection. It also features internal dual-level thermal overload protection and fail-safe operation to maintain stable performance under various operating conditions.

The operating temperature range from -40 to 150 degrees Celsius and RoHS compliance make this IC suitable for demanding industrial environments while meeting regulatory environmental standards. Its compact dimensions (10.8mm length, 9.4mm width, and 1.6mm height) facilitate PCB space optimization.

Continuous output current of 3A ensures effective motor drive capability. Half bridge configuration simplifies development of inverter circuits. Surface mount package eases assembly on modern PCBs. Advanced protection features safeguard both device and motor equipment.

RoHS certification aligns with environmental compliance requirements. Wide operating temperature range allows deployment in harsh conditions. Low supply current of 12mA aids in power-efficient systems.

This motor driver IC is particularly suited for use in industrial machinery, HVAC systems, manufacturing automation, consumer electronics, and automotive motor control applications. Its integrated protections and flexible design enable rapid prototyping and reliable production runs.

For additional technical resources, including datasheets and design guidelines, Power Integrations offers comprehensive documentation accessible for engineers and system designers. Explore related Motor Driver ICs and power management solutions to optimize your electronic control systems.
