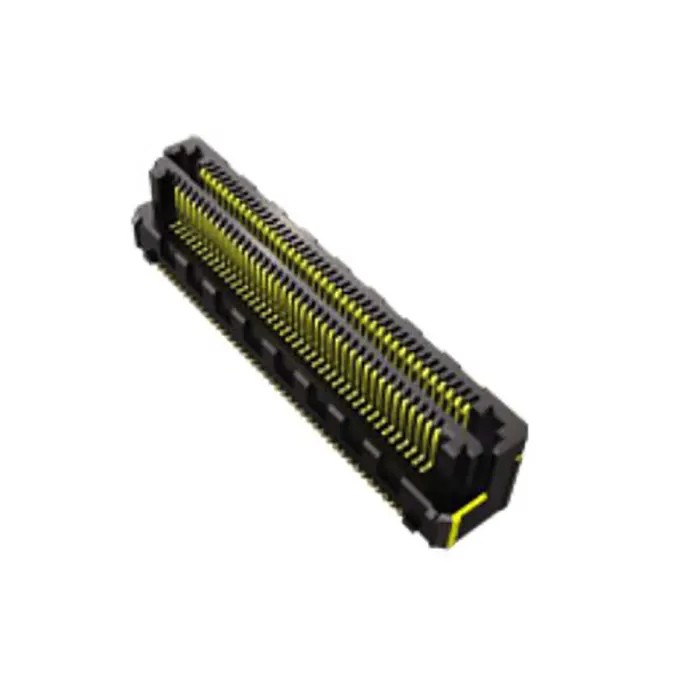

Samtec LSHM Series Vertical Surface PCB Header 40 Contacts 0.5 mm Pitch 2 Row Shrouded LSHM-120-04.0-L-DV-A-S-TR

Samtec LSHM-120-04.0-L-DV-A-S-TR Vertical Surface PCB Header is a rugged, high-density electronic connector designed for board-to-board and board-to-cable applications. It features 40 contacts arranged in 2 rows with a fine 0.5 mm pitch and a shrouded housing for secure connections.

The connector's housing is made of liquid crystal polymer, offering excellent thermal stability and mechanical resilience in demanding industrial environments. Its phosphor bronze contacts are plated with gold to ensure low contact resistance and corrosion resistance, supporting a current rating of 2A and voltage up to 226V AC.

Designed for surface mount applications, this vertical connector ensures reliable solder termination and is characterized by a male contact gender. The operating temperature range of -55°C to 125°C makes it suitable for a broad spectrum of industrial and commercial electronics uses.

The shrouded design provides enhanced mechanical protection and alignment during mating, reducing the risk of damage and improving connector longevity. It supports up to 100 input/output operations with mating and unmating forces significantly higher than typical micro-pitch connectors, ensuring durability and performance in high-density applications.

This PCB header is ideal for use in industrial electronics, telecommunications, computing, and other sectors where compact, high-performance electrical connections are necessary. Its fine pitch and robust construction meet stringent reliability requirements for advanced electronic assemblies.

Constructed from liquid crystal polymer housing material for durability. Electrical current rating of 2A with voltage rating up to 226V AC. Gold-plated phosphor bronze contacts ensure reliable conductivity. Designed for vertical orientation and surface mount type applications.

Operating temperature range from -55°C to 125°C for industrial robustness. Utilizes solder termination and male contact gender. Connector system supports board-to-board connections with enhanced mechanical strength. Shrouded design provides protection and alignment for mating connectors.

Ideal for compact electronic assemblies requiring fine pitch connectors. Explore more PCB Headers and connectors at EnvMart for comprehensive electronics component solutions.
