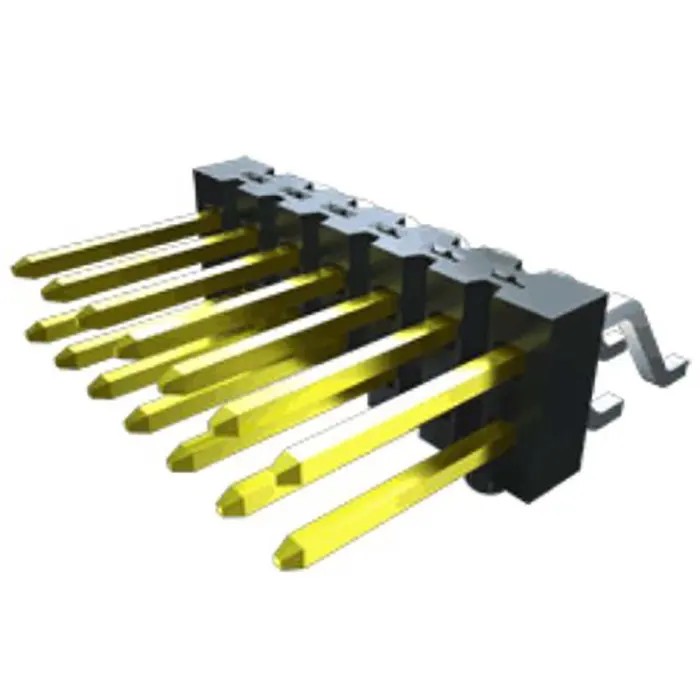

Samtec TSM Series Horizontal Surface Pin Header, 12 Contacts, 2 Row, 2.54 mm Pitch, Unshrouded TSM-106-02-L-SH-A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Horizontal |
| Model | TSM-106-02-L-SH-A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold or Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with a liquid crystal polymer housing for durability.
- Contacts made of phosphor bronze with gold or tin plating for reliable conductivity.
- Solder termination type suitable for surface mount applications.
- Operates in a wide temperature range from -55°C to +125°C for versatile industrial use.
- Rated for a maximum voltage of 475 VAC ensuring safe electrical performance.
- Horizontal orientation optimizes PCB layout and connection efficiency.
- Unshrouded design allows easy mating and inspection of contacts.
- Board-to-board connector system suitable for multiple electronics applications.
Product Description
Samtec TSM-106-02-L-SH-A Horizontal Surface Pin Header is designed for reliable board-to-board connections with 12 male contacts arranged in 2 rows and a 2.54 mm pitch. It features a robust liquid crystal polymer housing that ensures mechanical stability and resilience in demanding environments.
The contacts are fabricated from phosphor bronze and plated with 0.25 μm gold on the post and matte tin on the tail, delivering excellent electrical conductivity and corrosion resistance. The solder termination type enables secure and reliable mounting on surface mount PCBs.
This header operates efficiently over a wide temperature range from -55°C to +125°C, making it suitable for various industrial, electronics manufacturing, and testing applications. Rated to withstand voltages up to 475 VAC, it meets critical safety and performance standards without additional certifications.
The horizontal orientation facilitates optimal PCB layout design, while the unshrouded connector system allows straightforward mate and inspection of connections. Its compact design with 12 contacts in a 2-row arrangement meets the requirements for dense electronic circuit implementations.
Constructed with a durable liquid crystal polymer housing for mechanical strength. Phosphor bronze contact material plated with gold and tin for enhanced conductivity. Solder termination type designed for surface mount PCB assembly.
Operating temperature range from -55°C to +125°C for industrial reliability. Voltage rating up to 475 VAC supporting safe operation. Horizontal orientation and unshrouded design for easy access and efficient connection. Ideal for board-to-board connector applications in electronics manufacturing.
This pin header suits industrial, electronics manufacturing, laboratory equipment, and electronic test devices, where reliable and durable PCB interconnections are critical. Explore more PCB connectors and electronic components at EnvMart for advanced electronic design and manufacturing solutions.
Explore more products in our PCB Header category.
