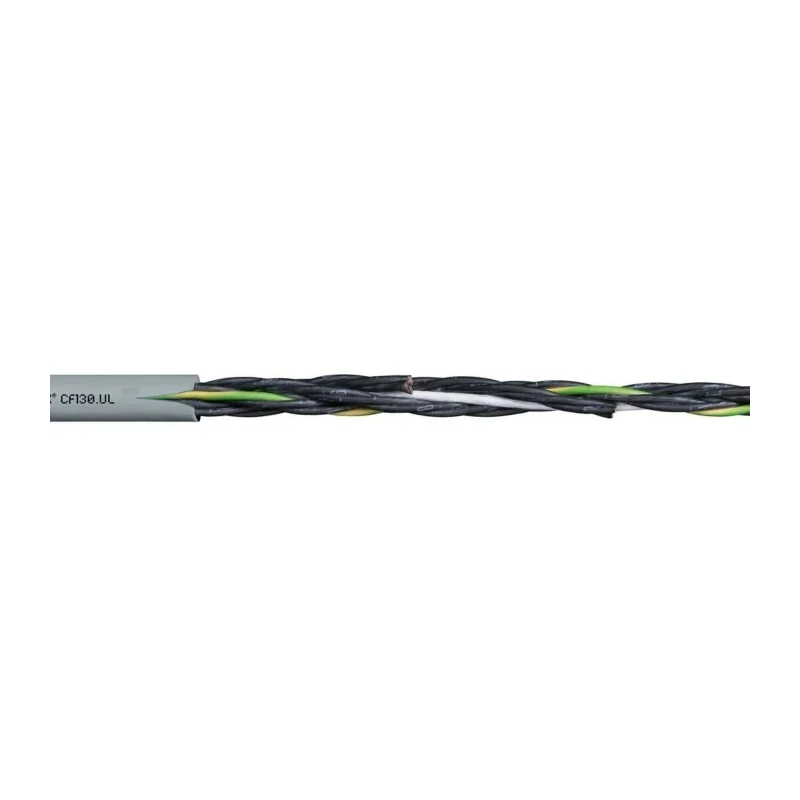

Igus Chainflex CF130.07.05.UL Control Cable 5 Cores 0.75mm² 18 AWG Unscreened Grey Thermoplastic Elastomer Sheath 10 m

Igus CF130.07.05.UL is a high-quality Chainflex PVC control cable engineered for medium load industrial and automation applications. With 5 cores of 0.75mm² (18 AWG) bare copper conductors in a fine-wire stranded configuration, this 10 meter cable offers excellent flexibility and durability. The unscreened cable comes with a grey thermoplastic elastomer jacket that provides flame retardant properties according to IEC 60332-1-2, CEI 20-35, FT1, and VW1 standards, making it safe for indoor use in demanding industrial environments.

This control cable supports a voltage rating of 500V and an operating temperature range from -5°C to 70°C. Its silicon-free and oil-resistant composition ensures reliable performance without interference from lubricants or oils, making it ideal for integration into energy chains and automation machinery. The jacket has a specialized low-adhesion PVC mixture compliant with DIN VDE 0282 Part 10, optimally suited for freely suspended travel distances and gliding applications up to 50 meters.

The cable’s bare copper conductors align with EN 60228 Class 2 standards, assuring excellent conductivity and mechanical stability. Unscreeened and non-armoured, it is designed for applications where electromagnetic screening is not required. Manufactured in Japan, this cable meets EN and CE approvals, guaranteeing adherence to international quality and safety regulations.

The cable features a grey thermoplastic elastomer jacket that is flame retardant. The conductor material is bare copper with fine wire stranded construction for flexibility. Designed for torsion resistance and preferably indoor applications.

Rated for 500V voltage with operating temperature range from -5°C to 70°C. The cable is silicon-free, oil resistant, and suitable for freely suspended travel distances up to 50 m. Meets IEC 60332-1-2 and other flame-retardant standards including CEI 20-35, FT1, and VW1.

Its low-adhesion PVC sheath is adapted according to DIN VDE 0282 Part 10 for energy chain applications. Manufactured in Japan ensuring high quality and compliance with EN and CE standards.

This control cable is ideal for use in industrial automation, electrical installations, manufacturing machinery, and process control systems where reliable control wiring is critical. Its durable construction and compliance with multiple flame retardant standards make it suitable for safe indoor environments requiring medium duty cable solutions. Explore more Control Cables and related components in the Electronics & Electricals category on EnvMart.
