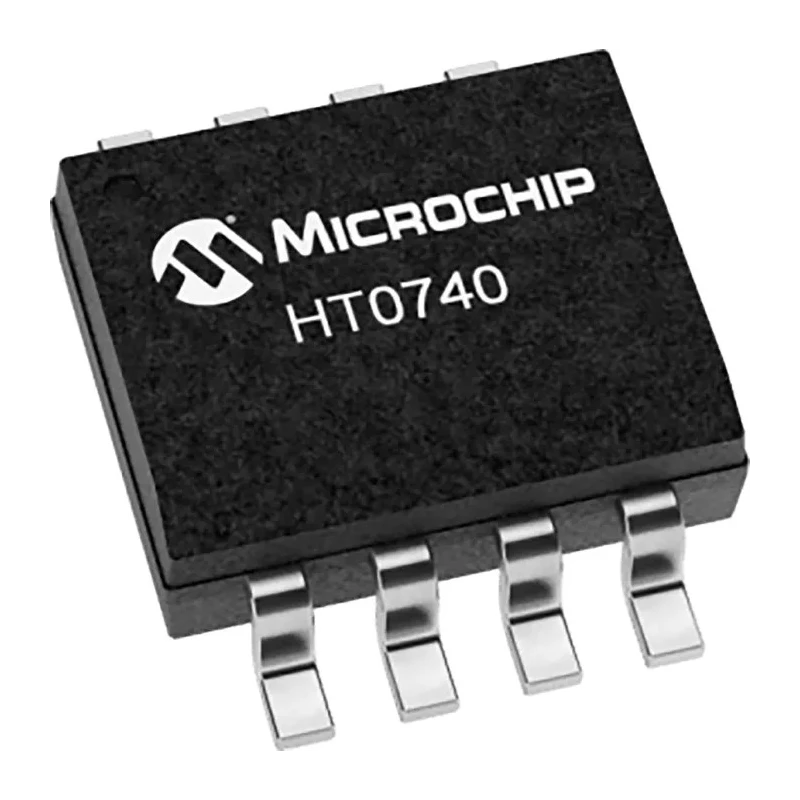

Microchip MOSFET Gate Driver 1 Channel 8-Pin SOIC 5.5V to 7V Supply HT0740LG-G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.65mm |
| Length | 5mm |
| Model | HT0740LG-G |
| Width | 4mm |
| Mount Type | Surface |
| Series | HT0440 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 650μs |
| Pin Count | 8 |
| Maximum Supply Voltage | 7V |
| Minimum Supply Voltage | 5.5V |
| Number of Drivers | 1 |
| Fall Time | 3ms |
| Driver Type | MOSFET |
Key Features
- Supports 400V input to output isolation for safe high-voltage operation.
- Low input logic current of maximum 500 μA ensures efficient control.
- No external power supply required as it uses logic input as internal supply.
- Contains one driver with five outputs compatible with 5V logic.
- Surface-mount SOIC package with dimensions 5 mm length, 4 mm width, and 1.65 mm height.
- Operating temperature range from -40°C to 85°C suitable for industrial environments.
- Rise time of 650 microseconds and fall time of 3 milliseconds for MOSFET switching.
- Ideal for telecommunications, solid state relays, high-end audio switches, and avionics applications.
Product Description
Microchip HT0740LG-G is a single-channel high-voltage isolated MOSFET gate driver featuring HVCMOS technology and an 8-pin SOIC package. It is designed specifically to drive discrete MOSFETs configured as high-side switches up to 400V, providing DC isolation between input and output. Its internal supply voltage is obtained from the logic input when at high state, eliminating the need for external power supplies.
This device offers low input logic current, typically maximum 500 μA, with a minimum supply voltage of 5.5 V and maximum supply voltage of 7 V. The driver includes five outputs compatible with 5 V logic, supporting robust switching with rise times of 650 microseconds and fall times of 3 milliseconds.
The HT0740LG-G package measures 5 mm in length, 4 mm in width, and 1.65 mm in height, ideal for surface mount technology. Operating across a temperature range from -40°C to 85°C, it suits applications requiring reliability under harsh conditions.
Common uses include telecommunications systems, modems, solid-state relays, high-side switching circuits, high-end audio switch designs, avionics equipment, and automatic test machines.
±400V input to output isolation ensures device safety and signal integrity. Low input logic current reduces power consumption. No need for an external power supply simplifies system design. Compatible with standard 5V logic interfaces.
Compact SOIC surface-mount form factor. Robust operation in industrial temperature ranges. HVCMOS technology guarantees high-performance isolating drive. Browse the EnvMart electronics & electricals category for MOSFET Gate Drivers and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 7V.
The rise time for the MOSFET switching is 650 microseconds.
The fall time for this model is 3 milliseconds.
This model operates within a temperature range of -40°C to 85°C.
It includes five outputs compatible with 5V logic.
The package dimensions are 5 mm in length, 4 mm in width, and 1.65 mm in height.
It is designed for surface mounting.
No, it uses the logic input as its internal supply, eliminating the need for an external power supply.
The maximum input logic current is 500 μA.
It is suitable for telecommunications, solid-state relays, high-end audio switches, and avionics applications.
This device features HVCMOS technology for high-performance isolating drive.
It supports 400V input to output isolation for safe high-voltage operation.
