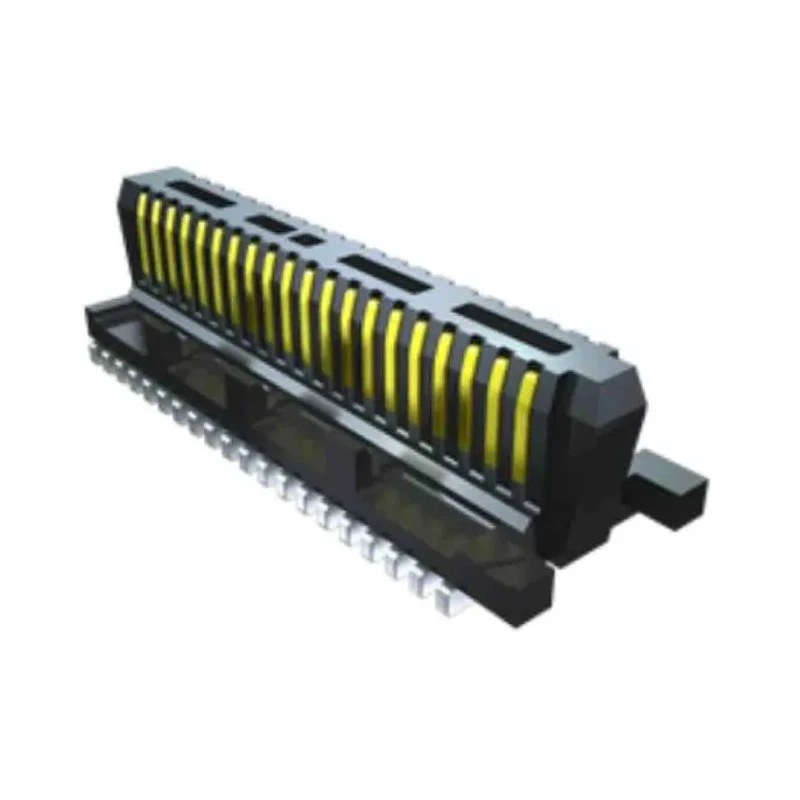

Samtec ST5 Series Right Angle Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-20-1.50-L-D-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec ST5 Series Right Angle Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-20-1.50-L-D-P-TR

Name: Samtec ST5 Series Right Angle Surface PCB Header, 40 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-20-1.50-L-D-P-TR
Brand: Samtec
SKU: 167097
Price: 3.95 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Right Angle
Current	1.6A
Model	ST5-20-1.50-L-D-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ST5
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Silver, Tin
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

The connector supports a current rating of 1.6A for reliable electrical performance.
Manufactured with liquid crystal polymer housing for durability and high temperature resistance.
Right angle orientation facilitates board-to-board connection in compact electronic assemblies.
Contact material is phosphor bronze with silver and tin plating ensuring conductivity and corrosion resistance.
Designed for surface mount with solder termination for secure PCB attachment.
Operating temperature ranges from -55°C to 125°C for versatile industrial and electronics applications.
Shrouded design provides protection and alignment for mating connectors.
Ideal for electronic components in power and connectors systems requiring precise pitch and multi-row configuration.

Product Description

Samtec ST5-20-1.50-L-D-P-TR is a right angle surface mount PCB header featuring 40 contacts arranged in 2 rows with a 0.5 mm pitch. This shrouded connector is designed for board-to-board applications where compact and reliable interconnection is essential. The housing is constructed from liquid crystal polymer, providing excellent mechanical strength and thermal stability, suitable for demanding electronic environments.

The connector supports a current rating of 1.6A, making it suitable for moderate power requirements. Contacts are made from phosphor bronze with silver and tin plating, ensuring low contact resistance and corrosion protection. Its solder termination type offers a strong and stable electrical connection on PCBs.

Operating temperature spans from -55°C to 125°C, allowing usage in industrial, manufacturing, and electronic equipment applications under varied thermal conditions. The shrouded design enhances durability and prevents misalignment during mating. This connector is widely applicable in electrical assemblies, power and connector systems, and other electronic component integration projects requiring high density and precision pitch connectivity.

The connector supports a current rating of 1.6A for reliable electrical performance. Manufactured with liquid crystal polymer housing for durability and high temperature resistance. Right angle orientation facilitates board-to-board connection in compact electronic assemblies.

Contact material is phosphor bronze with silver and tin plating ensuring conductivity and corrosion resistance. Designed for surface mount with solder termination for secure PCB attachment. Operating temperature ranges from -55°C to 125°C for versatile industrial and electronics applications.

Shrouded design provides protection and alignment for mating connectors. Ideal for electronic components in power and connectors systems requiring precise pitch and multi-row configuration.

This Samtec ST5 series PCB header is suited for electronic laboratories, industrial manufacturing, power distribution assemblies, and commercial electronics. It enables secure and compact board-to-board connectivity essential for modern electronics design. Browse more PCB Headers and connectors at EnvMart for your electronics manufacturing needs.
