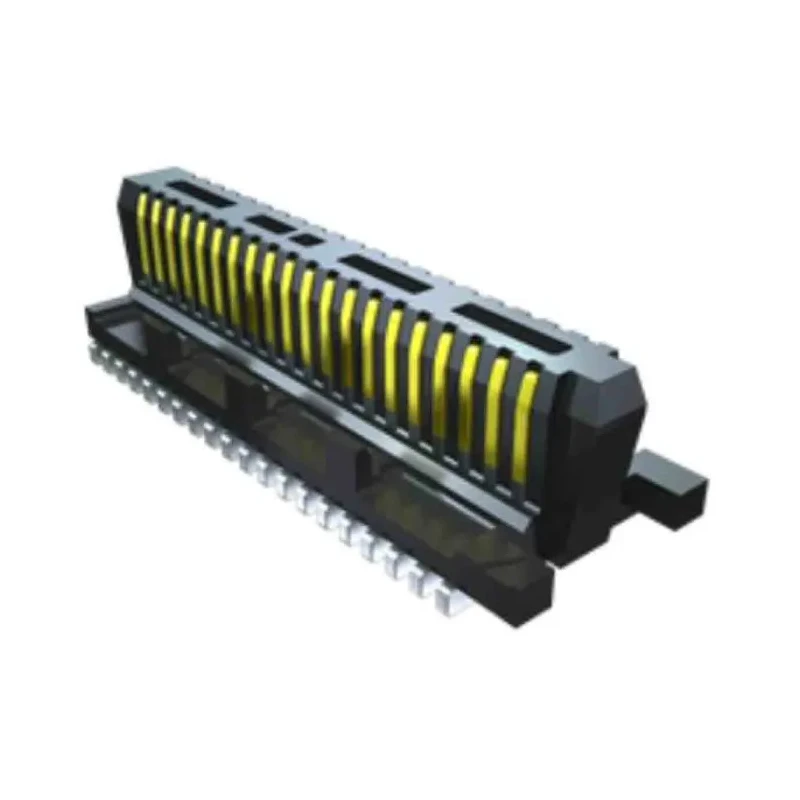

Samtec ST5 Series Right Angle Surface PCB Header, 30 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-15-1.00-L-D-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec ST5 Series Right Angle Surface PCB Header, 30 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-15-1.00-L-D-P-TR

Name: Samtec ST5 Series Right Angle Surface PCB Header, 30 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-15-1.00-L-D-P-TR
Brand: Samtec
SKU: 167094
Price: 3.55 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Right Angle
Current	1.6A
Model	ST5-15-1.00-L-D-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ST5
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Silver, Tin
Number of Contacts	30
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

The connector features a shrouded design for reliable board-to-board connection.
It uses Liquid Crystal Polymer housing material for durability.
Contact plating is silver and tin enhancing conductivity and corrosion resistance.
Suitable for currents up to 1.6A with phosphor bronze contact material.
Operates within a wide temperature range from -55°C to 125°C.
Termination type is solder, ensuring secure electrical connections.
The connector is tailored for pick and place manufacturing processes.
It provides precise 0.5 mm pitch spacing between contacts supporting miniaturized PCB designs.

Product Description

Samtec ST5-15-1.00-L-D-P-TR is a high-quality PCB header connector designed for advanced electronic applications. This right angle surface mount header features 30 male contacts arranged in 2 rows with a fine 0.5 mm pitch suitable for compact PCB assemblies.

The housing is constructed from durable Liquid Crystal Polymer, providing excellent mechanical stability and reliability under various operating conditions. The shrouded design offers enhanced protection and alignment for board-to-board connections.

Contacts are made from phosphor bronze and plated with silver and tin to optimize electrical performance and reduce oxidation. It is rated for currents up to 1.6A, making it suitable for medium power electronic circuits.

This connector supports solder termination, ensuring stable and secure mounting on PCB surfaces. It operates reliably over a wide temperature range of -55°C to 125°C, making it well-suited for industrial, telecommunications, computing, and aerospace applications.

The ST5 series is compatible with pick and place assembly techniques, enhancing manufacturing efficiency. Its 0.5 mm pitch and 2-row configuration enable designers to optimize PCB real estate without compromising connection integrity.

The connector offers 30 contact points providing versatile connectivity options. Its board-to-board connector system facilitates compact module stacking. The right angle orientation allows optimized routing of signals on the PCB.

Liquid Crystal Polymer housing improves thermal and chemical resistance. Shrouded contacts minimize damage and ensure correct mating alignment. Silver and tin plating deliver high conductivity and durability. Phosphor bronze contacts resist mechanical wear and corrosion.

Wide temperature tolerance permits use in harsh environments.

Overall, the Samtec ST5-15-1.00-L-D-P-TR PCB Header integrates precision engineering and robust materials for reliable electronic component interconnection. It is ideal for industrial electronics manufacturing, communications equipment, and other demanding laboratory, industrial, and manufacturing processes.
