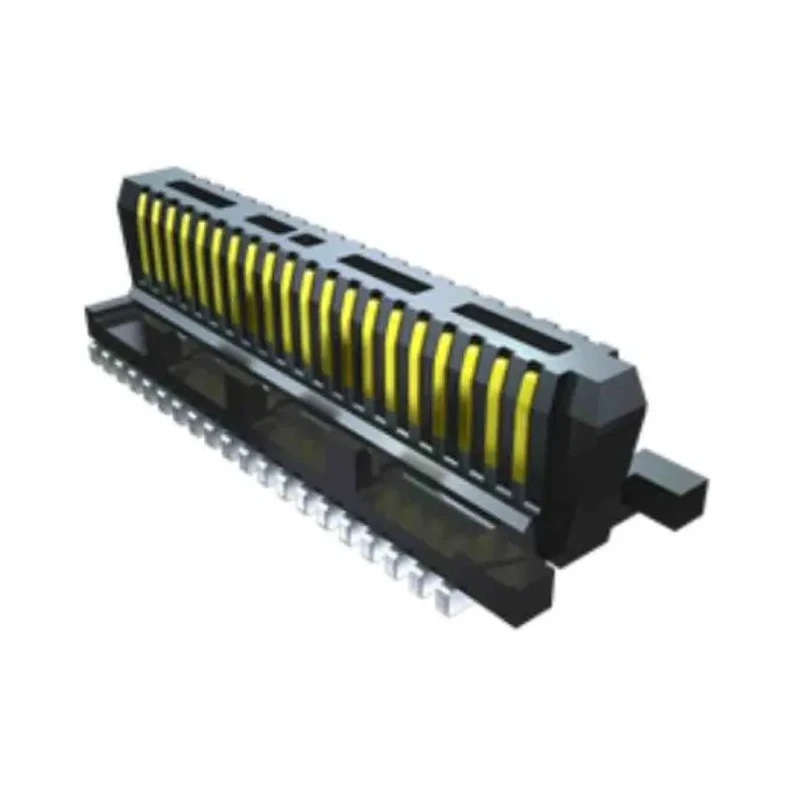

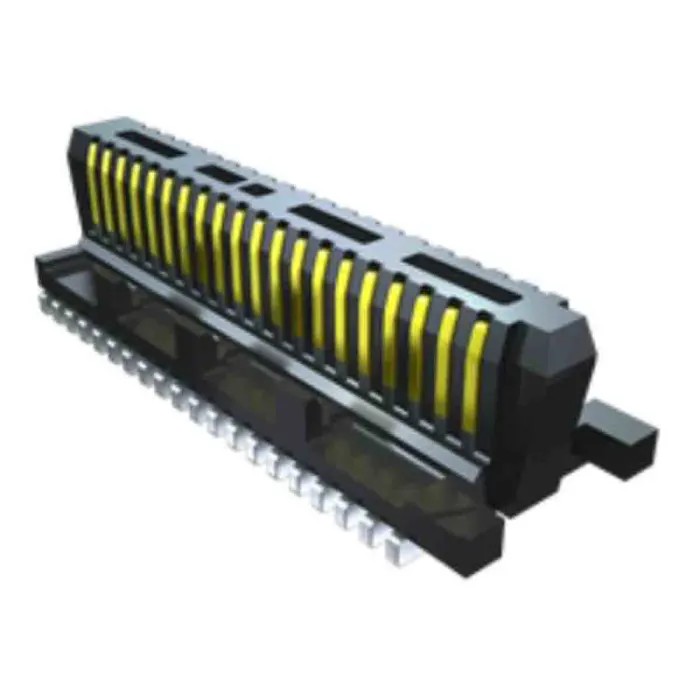

Samtec ST5 Series Right Angle Surface PCB Header, 30 Contacts, 0.5 mm Pitch, 2 Row, Shrouded ST5-15-1.50-L-D-P-TR

Samtec ST5-15-1.50-L-D-P-TR is a precision-engineered Right Angle Surface PCB Header from the ST5 Series, featuring 30 contacts arranged in two rows with a fine 0.5 mm pitch. This shrouded connector is designed for board-to-board applications, providing reliable electrical connections in compact electronic assemblies. It utilizes a high-performance liquid crystal polymer housing, enhancing its mechanical stability and resistance to environmental stresses.

The contacts are made from phosphor bronze, plated with silver and tin, ensuring excellent conductivity and reducing signal loss. The connector handles a current rating of 1.6A, suitable for low to medium power electronics. Its operating temperature range from -55°C to 125°C allows it to perform reliably in various industrial and commercial environments.

This PCB header is surface mounted and features a male contact gender with a solder termination type, optimizing for secure solder joints on printed circuit boards. The right angle orientation aids in efficient PCB space utilization, making it suitable for high-density component layouts. The shrouded design provides physical protection to the contacts and prevents misalignment during mating.

Industries such as electronics manufacturing, telecommunications, and computing benefit from this connector's robust construction and precise specifications. It is ideal for use in applications requiring compact, reliable board interconnections like embedded systems, instrumentation, and industrial equipment.

Constructed with a liquid crystal polymer housing for durability. Phosphor bronze contacts plated with silver and tin for excellent conductivity. Capable of carrying up to 1.6A current safely. Operates efficiently within a temperature range of -55°C to 125°C.

Designed for surface mount with board-to-board connector system compatibility. Shrouded, male contact gender ensures secure mating and protection. Utilizes solder termination type for reliable electrical connection. Right angle orientation optimizes PCB design layouts.

Choose this Samtec ST5 Series PCB Header for applications demanding precision, durability, and high connection integrity. Browse further categories for complementary electronic components and connectors on EnvMart.
