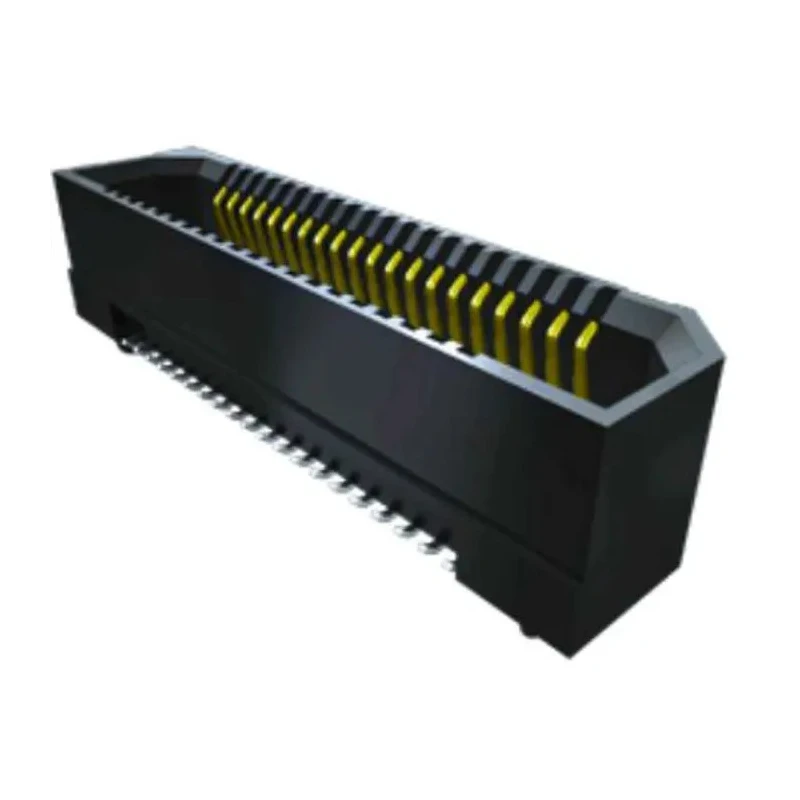

Samtec ERF8 Series Right Angle Surface PCB Socket, 40 Contact, 2 Row, 0.8 mm Pitch, 2.2A, 318V

Samtec ERF8-020-01-L-D-EM2-TR is a high-performance right angle surface PCB socket designed to provide reliable board-to-board connections in advanced electronic systems. It supports a 40-contact, 2-row configuration with a 0.8 mm pitch and handles currents up to 2.2A at voltages of 318V. This socket is constructed with a durable liquid crystal polymer housing and uses gold-plated beryllium copper alloy contacts to ensure excellent electrical conductivity and corrosion resistance.

The socket is surface-mount type with a right angle orientation, which facilitates efficient space utilization in compact electronic designs. The stacking height of 18mm and a row pitch of 4.5mm provide precise mechanical alignment for multi-layer PCB assemblies.

Engineered to operate in extreme temperature conditions ranging from -55°C to +125°C, it is suitable for demanding industrial and commercial electronic applications. The solder termination type ensures a robust and stable connection to the PCB, ideal for high-speed systems supporting data transmission up to 56Gbps PAM4.

Common use cases include industrial electronics, telecommunications equipment, and high-speed data processing hardware where reliable signal integrity and durability are critical. This product complies with industry standards but does not carry specific certifications.

Rated current capacity of 2.2A ensuring stable electrical performance. Gold-plated beryllium copper alloy contacts provide excellent corrosion resistance and conductivity. Liquid crystal polymer housing delivers mechanical strength and temperature resilience.

Right angle design for optimized PCB layout and accessibility. Surface mount termination compatible with standard soldering processes. Operating temperature from -55°C to +125°C suits harsh environments. Board-to-board connector system supports compact and modular designs.

Stacking height and pitch dimensions enable precise multi-layer stacking.

Overall, the Samtec ERF8-020-01-L-D-EM2-TR socket is engineered to meet the stringent requirements of modern high-speed electronic assemblies, offering reliability, robustness, and ease of integration. Browse more PCB Sockets and connectors at EnvMart for comprehensive electronic component options.
