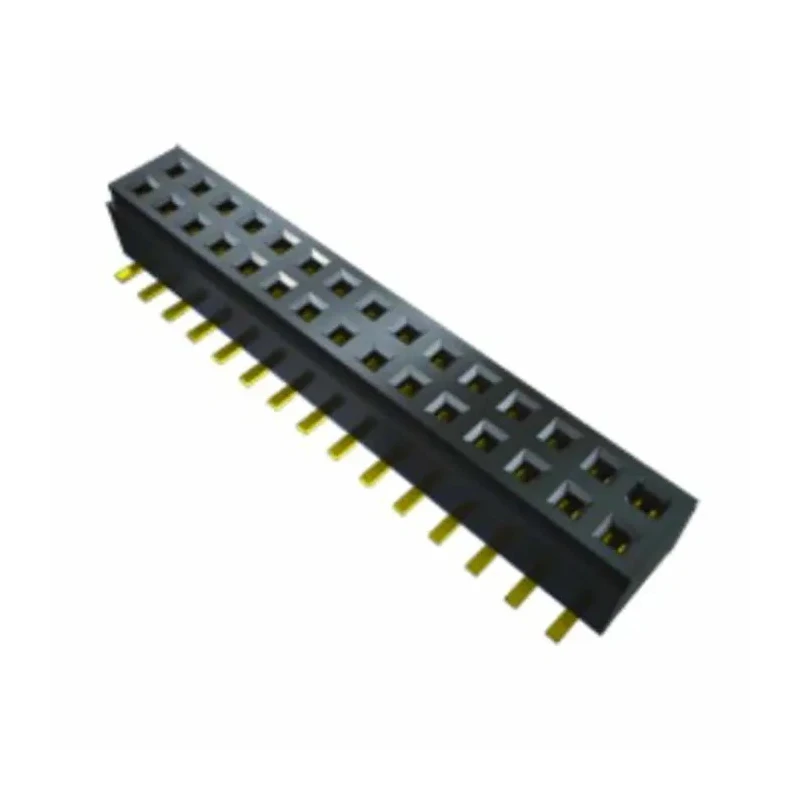

Samtec CLM Series Straight Surface PCB Socket 8-Contact 2 Row 1 mm Pitch Solder CLM-104-02-F-D-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 270V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.1A |
| Model | CLM-104-02-F-D-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Connector System | Board-to-Board |
Key Features
- The socket supports a current of 3.1 A, suitable for moderate power applications.
- It is made with a liquid crystal polymer housing ensuring thermal resistance from -55°C to 125°C.
- Gold-plated phosphor bronze contacts provide reliable electrical connections.
- The board-to-board connector system offers a low profile dual wipe Tiger Claw™ contact for durability.
- Designed for surface mount with straight orientation, ideal for compact PCB layouts.
- The socket is RoHS compliant and manufactured to industry quality standards.
- Available optionally with tape and reel packaging for automated assembly processes.
Product Description
Samtec CLM-104-02-F-D-TR is a straight surface mount PCB socket designed for electronic applications requiring reliable board-to-board connections. This 8-contact, 2-row socket with a 1 mm pitch utilizes a liquid crystal polymer housing material, which offers excellent thermal stability and mechanical strength. It is engineered to operate in temperatures ranging from -55°C to 125°C, making it suitable for demanding industrial and electronic manufacturing environments.
The socket's termination type is solder, optimized for surface mount technology (SMT) applications in compact PCB layouts. Its connector system supports a maximum current of 3.1 A and voltage rating of 270 V, making it ideal for medium power circuitry. The contact material, phosphor bronze, is plated with gold to ensure low resistance and durability over repeated mating cycles. The low profile dual wipe Tiger Claw™ contact design increases reliability during connections and disconnections.
This product benefits from industry-standard manufacturing and quality assurance but does not carry specific approvals. It is presented ready for use in industrial electronics, laboratory equipment, telecom infrastructure, and other commercial applications requiring robust board-to-board connectivity.
The housing material is liquid crystal polymer for enhanced durability. Operation temperature range from -55°C to 125°C. Solder termination suited for surface mounting. Gold-plated phosphor bronze contacts for superior connectivity.
Supports 3.1 A current at 270 V voltage rating. Low profile dual wipe Tiger Claw™ contact system. Available in tape and reel packaging for automated PCB assembly. Explore more PCB Sockets and connectors by Samtec to complement your electronic component needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this socket is 3.1 A, making it suitable for moderate power applications.
This model has a voltage rating of 270 V, allowing it to be used in medium power circuitry.
The operating temperature range for this socket is from -55°C to 125°C, suitable for demanding environments.
The housing is made from liquid crystal polymer, and the contacts are made of phosphor bronze with gold plating for reliable electrical connections.
This socket features 8 contacts arranged in 2 rows, with a 1 mm pitch.
The termination type for this model is solder, optimized for surface mount technology applications.
Yes, this socket is RoHS compliant, adhering to environmental standards for electronic components.
This model has a straight orientation, which is ideal for compact PCB layouts.
It utilizes a low profile dual wipe Tiger Claw™ contact design, enhancing reliability during connections and disconnections.
The socket is available optionally with tape and reel packaging, which is suitable for automated assembly processes.
The country of origin for this socket is India, reflecting its manufacturing location.
This socket is designed for use in industrial electronics, laboratory equipment, and telecom infrastructure, requiring robust board-to-board connectivity.
