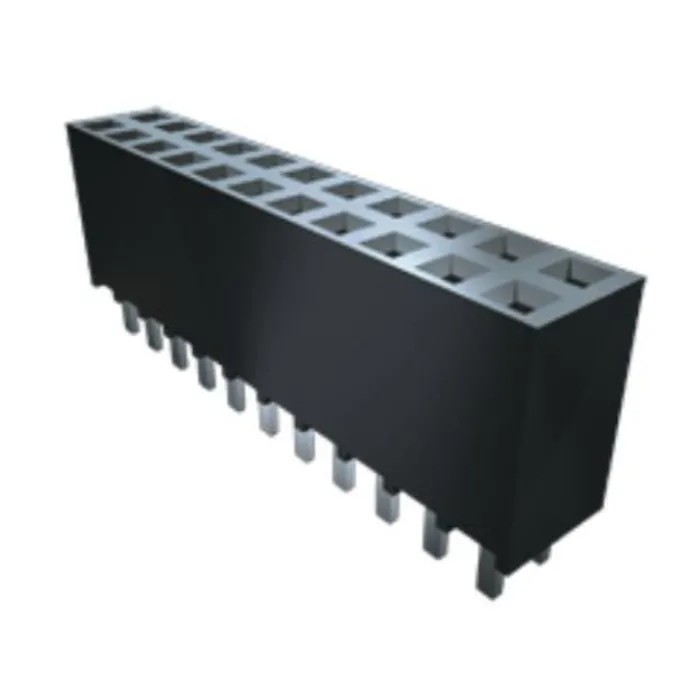

Samtec SSW Series Straight Through Hole PCB Socket, 12-Contact, 2 Row, 2.54 mm Pitch, 4.7 A Current SSW-106-22-G-D-VS

Samtec SSW-106-22-G-D-VS is a high-quality straight through hole PCB socket featuring 12 contacts across 2 rows with a 2.54 mm pitch. It is engineered for board-to-board connection systems with solder termination and through hole mount type, making it ideal for robust electronic assembly and industrial applications.

The housing is made from liquid crystal polymer providing excellent thermal stability and mechanical strength, while the contacts are manufactured from phosphor bronze and plated with gold to ensure excellent electrical conductivity and long lifecycle performance. The socket supports a current rating of 4.7 A per pin and can operate reliably between -55°C and 125°C, making it suitable for high-reliability environments.

Its voltage rating of 655 V enables use in various electronic and industrial systems where insulation and safety are critical. The 2.5 mm row pitch and 2.54 mm contact pitch allow for precise PCB layout and tight spacing, optimizing space utilization on circuit boards.

This product does not indicate any specific industry certifications but follows high manufacturing standards inherent to the Samtec SSW series. It is widely used in electronics manufacturing, prototyping, industrial automation, and related fields requiring secure, high-performance PCB connections.

Features 4.7 ampere current rating per pin for reliable electrical performance. Constructed with a liquid crystal polymer housing for excellent durability and temperature resistance. Solder termination and through hole mount type ensure secure and robust PCB connection.

Designed for board-to-board connector system with female contact gender. Operates effectively from -55°C to 125°C temperature range. Contact material is phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.

Supports 655 V voltage rating suitable for demanding applications. Compact row and contact pitch facilitate precise PCB assembly. Ideal for industrial, electronics manufacturing, and laboratory applications requiring reliable PCB sockets.

Part of the trusted Samtec SSW series of PCB Sockets.
