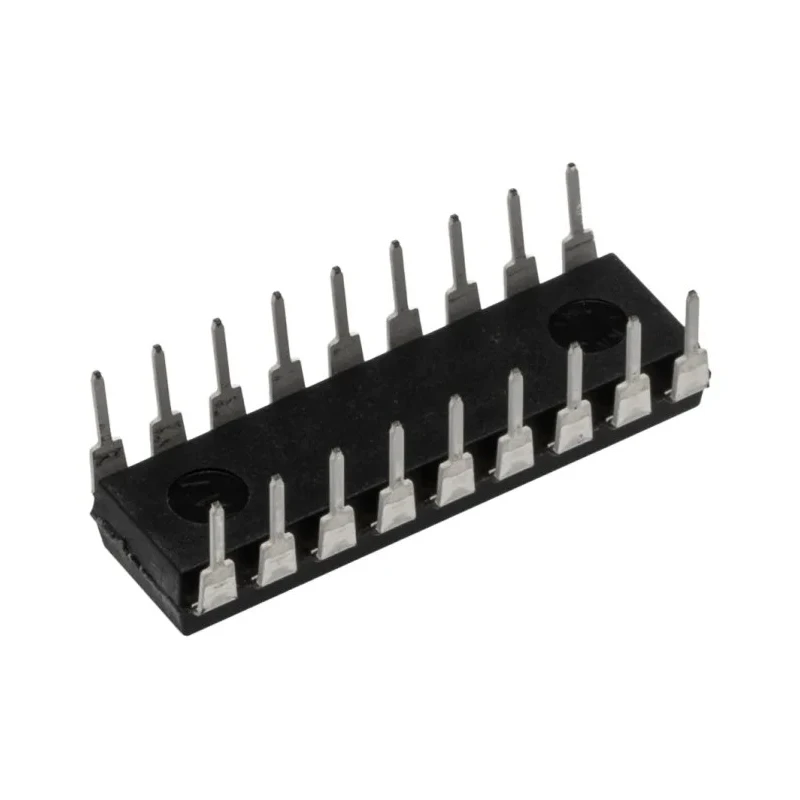

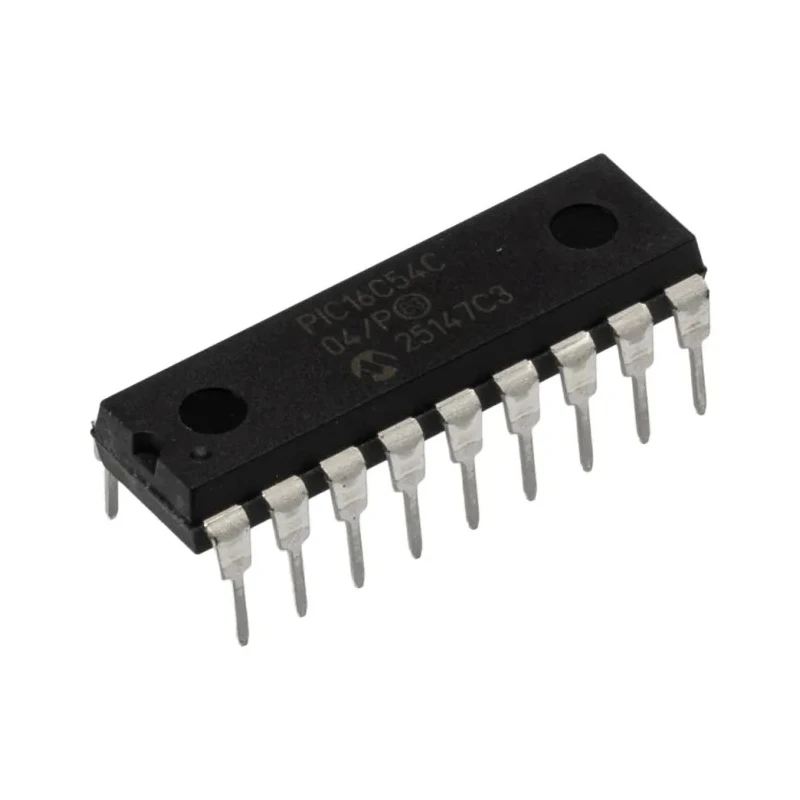

Microchip 8-bit PIC Microcontroller, PIC16C54C-04/P, 4 MHz Clock, 0.75kB EPROM, 18-Pin PDIP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16C54C-04/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Ram size | 25bit |
| Pin Count | 18 |
| Automotive Standard | ISO/TS 16949 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 3V |
| Device Core | PIC |
| Program Memory Size | 0.75kB |
| Maximum Clock Frequency | 4MHz |
| Number of Programmable I/Os | 12 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 0 |
| Program Memory Type | EPROM |
| Microchip, 8bit PIC, PIC16F Microcontroller, 20MHz, 512 Flash, 18-Pin PDIPBrand | Microchip |
Key Features
- Based on PIC16C5x baseline architecture with RISC instruction set and 33 instructions.
- Operates with a 4 MHz maximum clock frequency and 0.75kB EPROM program memory.
- Features 12 programmable I/O pins and one 8-bit timer for versatile control.
- Supports operating voltage range from 3V to 5.5V with maximum power dissipation of 800 mW.
- Designed for reliable performance in 0°C to 70°C operating temperature range.
- Packages in an 18-pin PDIP through-hole mount for ease of integration.
- Widely used in legacy embedded systems, industrial control, and academic applications.
- Complies with ISO/TS 16949 automotive standards.
Product Description
Microchip PIC16C54C-04/P is an 8-bit microcontroller from the PIC16C series, featuring a 4 MHz maximum clock frequency and 0.75kB EPROM program memory. This device comes in a compact 18-pin PDIP package with through-hole mounting, making it suitable for embedded and industrial applications requiring reliable and cost-effective control solutions.
This microcontroller is based on Microchip's PIC baseline architecture employing a 2-level hardware stack and 33 12-bit instructions with RISC instruction set architecture. It offers 12 programmable I/O pins and one 8-bit timer for precise timing and control in embedded designs.
The unit supports a wide operating voltage range from 3 V to 5.5 V, with a maximum power dissipation of 800 mW, ensuring efficient energy usage. The device is rated for operating temperatures from 0°C up to 70°C, making it suitable for typical commercial and industrial environments.
The PIC16C54C-04/P microcontroller supports a watchdog timer, power-on reset, and device reset timer for robust system reliability. With its ISO/TS 16949 automotive standard compliance, it is also applicable for automotive embedded use cases.
This microcontroller is a popular choice for legacy embedded designs in automotive, industrial control, home automation, and academic projects. It is now supplemented by Flash-based PIC16F variants for new developments.
Based on PIC16C5x 8-bit microcontroller architecture. 4 MHz maximum clock frequency with 0.75kB EPROM memory. 18-pin PDIP package with through-hole mount. 12 programmable input/output pins and one 8-bit timer. Operating voltage from 3 V to 5.5 V and 800 mW maximum power dissipation.
Operating temperature between 0°C and 70°C. Includes watchdog timer, power-on reset, and device reset timer. Complies with automotive ISO/TS 16949 standards. Explore EnvMart for a comprehensive range of semiconductors, Microcontrollers, and embedded control solutions for industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 4 MHz.
It features a program memory size of 0.75kB EPROM.
This microcontroller supports an operating voltage range from 3V to 5.5V.
It has 12 programmable I/O pins for versatile control.
The dimensions are 22.99mm in length, 6.6mm in width, and 3.68mm in height.
The maximum power dissipation is 800 mW.
It operates within a temperature range of 0°C to 70°C.
It comes in an 18-pin PDIP package with through-hole mounting.
Yes, it complies with ISO/TS 16949 automotive standards.
It uses a RISC instruction set architecture with 33 instructions.
This microcontroller includes one 8-bit timer.
It is widely used in legacy embedded systems, industrial control, and academic applications.
