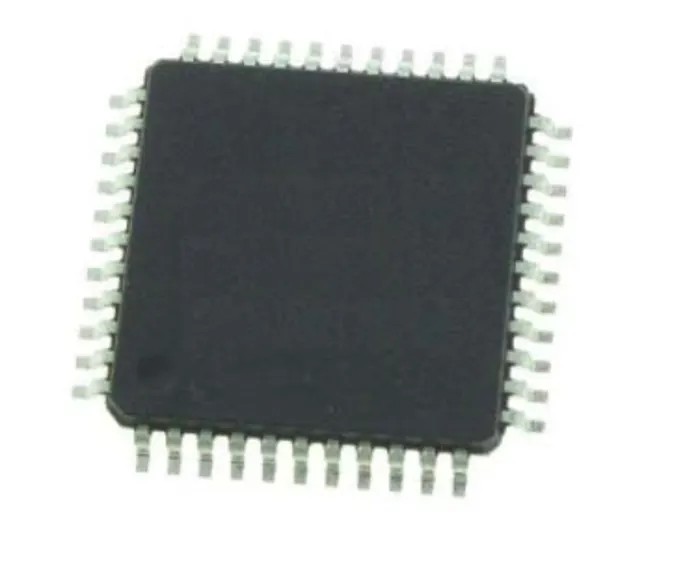

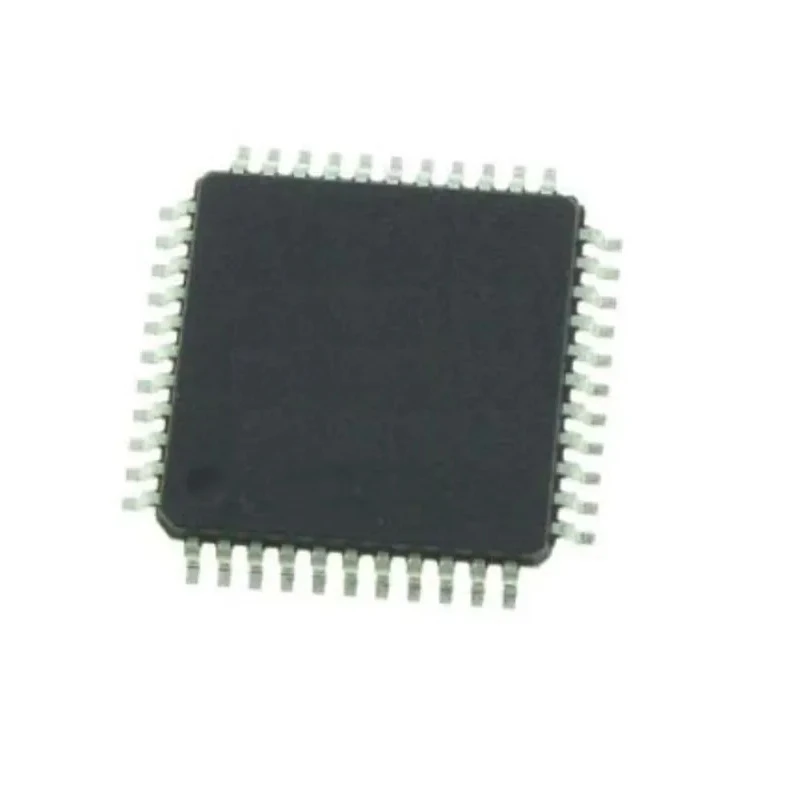

Microchip 8-bit PIC PIC16F Microcontroller 32 MHz 28kB FLASH 44-Pin TQFP PIC16F19176-I/PT
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC16F19176-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Interface Type | EUSART, I2C, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 35 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 31 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features a 44-pin TQFP surface mount package for compact designs.
- Operates at a maximum supply voltage of 5.5V with a minimum of 1.8V.
- Includes 2kB RAM and multiple interfaces including EUSART, I2C, and SPI.
- Built with RISC architecture and equipped with 31 x 12 Bit ADCs and 1 x 5 Bit DAC.
- Supports up to 35 programmable I/Os and contains 4 timers for advanced timing control.
- Operational temperature range from -40°C to 85°C enabling robust industrial use.
- Incorporates dual analog comparators and core independent peripherals for enhanced functionality.
- Complies with RoHS standards confirming environmental safety.
Product Description
Microchip PIC16F19176-I/PT is an advanced 8-bit PIC microcontroller designed for high performance and low power consumption applications. Operating at a maximum clock frequency of 32 MHz with 28kB FLASH program memory, this device is ideal for embedded system designs that require efficient processing and extensive memory.
Housed in a 44-pin TQFP surface mount package, the microcontroller offers compactness for dense circuit boards while supporting a wide range of peripheral interfaces such as EUSART, I2C, and SPI communications. The device features 2kB of RAM and a suite of analog and digital peripherals including 31 channels of 12-bit ADC, a 5-bit DAC, and two analog comparators.
The microcontroller’s RISC architecture ensures efficient instruction execution and energy conservation, suitable for embedded applications in industrial automation, instrumentation, and battery-powered devices. Its programmable I/Os count of 35 and four timers offer flexibility for complex timing and control scenarios.
Designed to operate across a broad temperature range from -40°C to 85°C and supply voltages from 1.8V to 5.5V, the PIC16F19176-I/PT is engineered for reliable operation in harsh environmental conditions. It incorporates an integrated charge pump for LCD drive capability and features a windowed watchdog timer and temperature sensor to enhance system robustness and safety.
Features a 44-pin TQFP surface mount package for compact designs. Operates at 32 MHz clock frequency with 28kB FLASH memory. Equipped with EUSART, I2C, SPI interfaces. Includes 31x12-bit ADC channels and one 5-bit DAC. Supports 35 programmable I/Os and 4 timers.
Operational temperature range from -40°C to 85°C. Complies with RoHS environmental standards. Designed and manufactured in the United States.
This microcontroller is suited for applications in industrial automation, embedded system design, consumer electronics, and other fields requiring a reliable and versatile control solution. Explore a broad range of Microchip Microcontrollers and components on EnvMart to find products that fit your project's needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F19176-I/PT microcontroller is 32 MHz.
This model features a program memory size of 28kB FLASH.
It supports up to 35 programmable I/Os.
The operational temperature range for the PIC16F19176-I/PT is from -40°C to 85°C.
This microcontroller includes EUSART, I2C, and SPI interfaces.
The RAM size of this microcontroller is 2kB.
The dimensions of this model are 10mm in length, 10mm in width, and 1.05mm in height.
It features 31 channels of 12-bit ADC.
This microcontroller is housed in a 44-pin TQFP surface mount package.
The minimum supply voltage is 1.8V and the maximum supply voltage is 5.5V.
This model includes 4 timers for advanced timing control.
It complies with RoHS standards, confirming its environmental safety.
