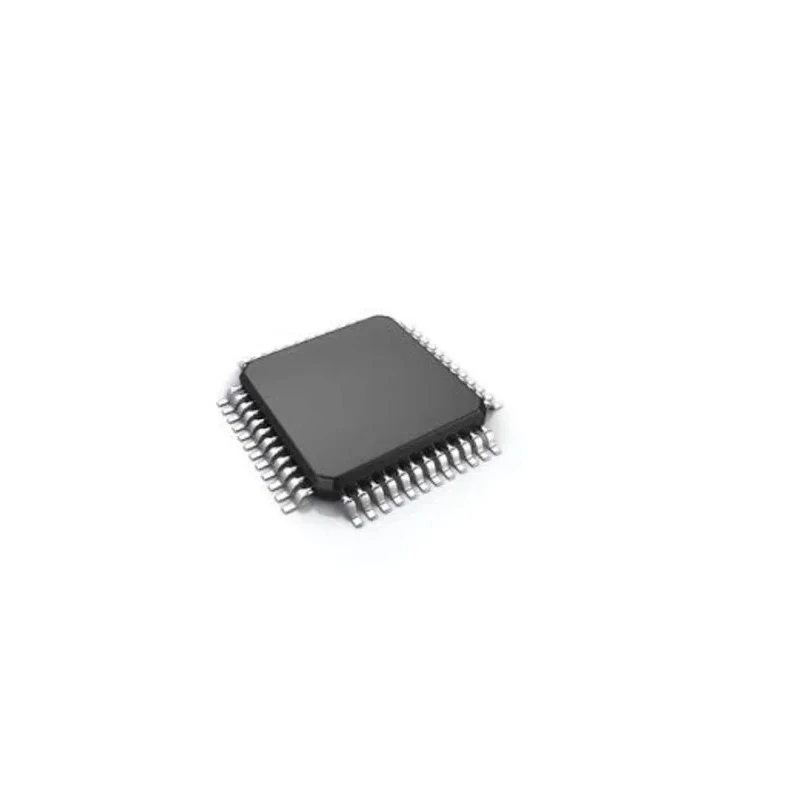

Microchip 8-bit PIC XLP 18K Microcontroller, 64 MHz, 128kB FLASH, 48-Pin TQFP PIC18F57K42-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F57K42-I/PT |
| Width | 7mm |
| Mount Type | Surface |
| Series | PIC XLP 18K |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| Standards/Approvals | RoHS3, REACH |
| Pin Count | 48 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 44 |
| Instruction Set Architecture | RISC |
| ADCs | 43 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- 8-bit PIC XLP 18K microcontroller featuring RISC architecture and 128kB FLASH memory.
- Operates up to 64 MHz, enabling rapid instruction execution and high throughput.
- Equipped with a 48-pin TQFP package, suitable for surface mount applications.
- Offers 44 programmable I/Os, 8kB RAM, and integrated 12-bit ADCs and DACs for robust interfacing options.
- Complies with RoHS3 and REACH for enhanced environmental and safety standards.
- Supports temperature operation from -40°C to 85°C for use in industrial environments.
- Direct Memory Access (DMA) controllers and vectored interrupts improve real-time response.
Product Description
Microchip PIC18F57K42-I/PT 8-bit PIC XLP 18K Microcontroller delivers advanced performance for modern embedded system designs. It utilizes an optimized RISC architecture enabling efficient instruction execution and features a maximum clock frequency of 64 MHz for fast processing capability. The 128kB FLASH program memory and 8kB RAM provide ample space for code and variables, making this microcontroller suitable for complex proprietary or open-source applications.
The device is equipped with a broad range of integrated peripherals, including 44 programmable input/output pins, 43-channel 12-bit ADC, a 5-bit DAC, multiple serial communication interfaces (UART, SPI, I2C), and direct memory access (DMA) controllers. Vectored interrupt capability, a programmable vector table, and a 31-level hardware stack allow for precise real-time control and efficient event handling.
The Microchip PIC18F57K42-I/PT supports a wide operating voltage range from 2.3V to 5.5V, delivering reliable performance in diverse applications. The extended operating temperature of -40°C to +85°C makes it suitable for use in demanding industrial, automotive, and laboratory environments. Its low power consumption, brown-out reset and watchdog timer features enhance device safety and system reliability.
8-bit PIC XLP 18K architecture with C compiler optimization for efficient code. 128kB FLASH program memory, 8kB RAM, and versatile memory access partitioning options. Surface mount 48-pin TQFP package ensures integration flexibility into compact PCBs.
Compliant with RoHS3 and REACH standards, supporting green manufacturing. Integrated temperature sensor and device information area for precise calibration.
Typical use cases include industrial automation, smart sensors, power monitoring, laboratory devices, and embedded control systems where lower power and high integration are required. Its broad communication protocol support - UART, DMX, DALI, LIN, SPI, I2C - enables seamless device networking and fieldbus connections essential for modern industrial and commercial electronics.
Ideal for electronics engineers, embedded developers, and system integrators seeking a feature-rich microcontroller platform. For more options in industrial, laboratory, and commercial electronics components, browse related solutions available in the Microcontroller section on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz, enabling fast processing capabilities for embedded applications.
It features a program memory size of 128kB FLASH, providing ample space for code in various applications.
This microcontroller is equipped with 44 programmable I/Os, allowing for versatile interfacing options in embedded systems.
It operates within a temperature range of -40°C to +85°C, making it suitable for industrial and automotive environments.
This model comes in a 48-pin TQFP package, which is suitable for surface mount applications.
It includes 43 channels of 12-bit ADCs and 1 channel of a 5-bit DAC, providing robust interfacing capabilities.
The microcontroller supports a supply voltage range from 2.3V to 5.5V, ensuring reliable operation across various applications.
It complies with RoHS3 and REACH standards, which enhance its environmental and safety compliance.
This model utilizes an optimized RISC architecture, which allows for efficient instruction execution.
It features multiple serial communication interfaces including UART, SPI, and I2C, along with Direct Memory Access (DMA) controllers.
This microcontroller has a RAM size of 8kB, providing sufficient memory for variable storage in applications.
Typical applications include industrial automation, smart sensors, and embedded control systems, where high integration and lower power consumption are required.
