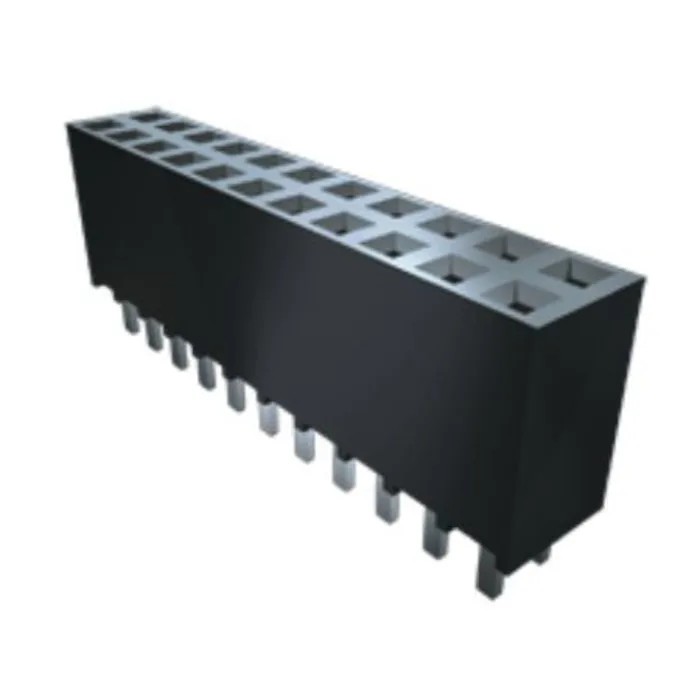

Samtec SSW Series Straight Through Hole PCB Socket, 12-Contact, 2 Row, 2.54 mm Pitch, 4.7 A Current SSW-106-22-F-D-VS-K
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 655V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.7A |
| Model | SSW-106-22-F-D-VS-K |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SSW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Supports a current rating of 4.7 amperes per contact.
- Constructed with a liquid crystal polymer housing for durability.
- Features phosphor bronze female contacts plated with gold for reliable conductivity.
- Operates within a temperature range of -55°C to 125°C.
- Compatible with a voltage rating of 655 volts.
- Standard solder tail termination ensures secure mounting.
- Straight orientation for easy PCB integration.
- Standard and low insertion force contacts enhance performance and reliability.
Product Description
Samtec SSW-106-22-F-D-VS-K is a high-quality PCB socket from the SSW Series featuring 12 female contacts arranged in 2 rows with a 2.54 mm pitch. It is designed for through-hole mounting applications requiring reliable board-to-board connections. This socket supports a current rating of 4.7 A per pin and can withstand voltages up to 655 V, making it suitable for industrial electronic equipment.
The housing is made from durable liquid crystal polymer, providing excellent mechanical strength and high temperature resistance from -55°C to 125°C. Contacts are fabricated from phosphor bronze and plated with gold, ensuring superior conductivity and corrosion resistance. The straight orientation and standard solder tail termination facilitate easy and secure installation on PCBs.
This PCB socket is part of the SSW series, known for standard and low insertion force contacts which improve mating cycles and reduce wear. Its compact 2 row, 12-contact design with a 2.54 mm pitch meets standard industry PCB connector requirements.
Supports a 4.7 A current rating per contact for robust electrical performance. Housing material is liquid crystal polymer, offering thermal and chemical stability. Gold-plated phosphor bronze contacts ensure reliable signal integrity.
Designed for through-hole mount technology on PCBs. Operating temperature range from -55°C to 125°C for versatile environments. Voltage rating up to 655 V for high voltage applications. Straight contact orientation simplifies PCB design integration.
Standard solder tail termination for consistent soldering quality.
This Samtec SSW Series PCB Socket is ideal for electronic industrial, manufacturing, and laboratory use requiring reliable and durable board-to-board connectors. It is suitable for applications in telecommunications, computing equipment, instrumentation, and control systems where robust electrical performance and mechanical stability are essential.
Explore the extensive selection of PCB connectors and sockets available to complement this product on EnvMart, your industrial e-commerce platform for electronic components and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 4.7 amperes per contact.
It has a voltage rating of up to 655 volts, making it suitable for high voltage applications.
The operating temperature range is from -55°C to 125°C, allowing it to function in various environments.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze and plated with gold.
This model features 12 female contacts arranged in 2 rows.
The pitch size is 2.54 mm, which is standard for many PCB connectors.
It uses standard solder tail termination for secure mounting on PCBs.
The contacts are arranged in a straight orientation, facilitating easy integration into PCB designs.
It is suitable for applications in telecommunications, computing equipment, instrumentation, and control systems.
The country of origin for this product is India.
This model is designed for board-to-board connections, making it ideal for various electronic applications.
It belongs to the SSW Series, known for its reliable board-to-board connections.
