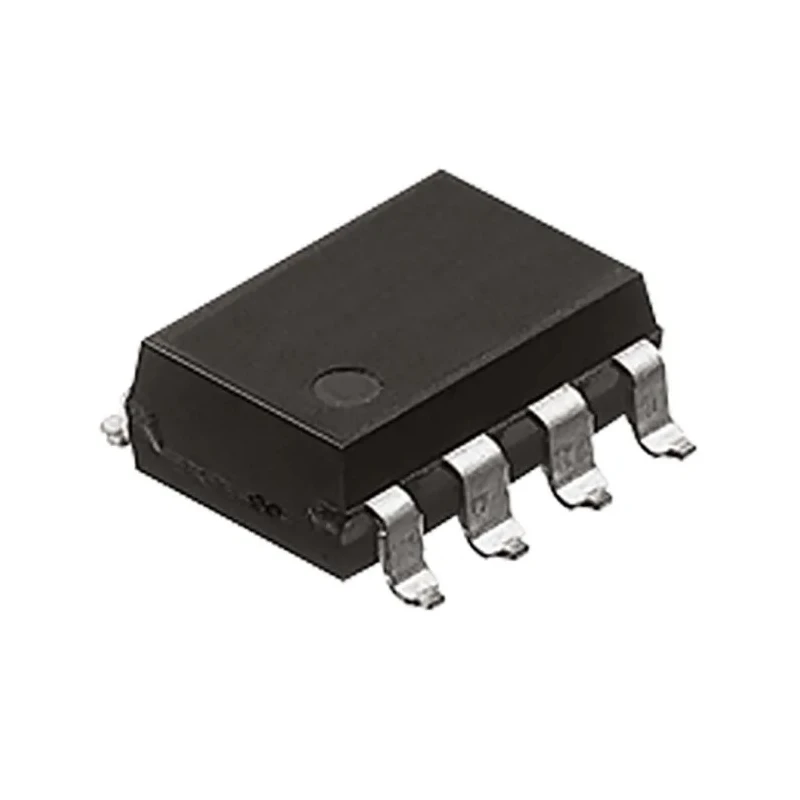

Panasonic PhotoMOS Series Solid State Relay 0.3A Load Surface Mount 400V AQW614EHA

Panasonic AQW614EHA PhotoMOS Series Solid State Relay is engineered to provide reliable switching performance for both AC and DC loads up to 0.3 A and 400 V with a compact surface mount design. This relay features reinforced insulation rated at 5,000 V, making it suitable for applications requiring high electrical isolation and safety.

The relay integrates both Normally Open and Normally Closed contact configurations, allowing for flexible circuit designs. Its low on-state resistance of 35Ω and exceptionally low off-state leakage current of 10μA contribute to energy-efficient operation. The 1.5pF capacitance optimizes signal integrity for sensitive analogue controls.

This device operates effectively over a temperature range of -40°C to 85°C, ensuring dependable performance in harsh industrial environments including automation systems, electrical control panels, signal conditioning, and manufacturing equipment. The MOSFET output type supports fast AC/DC switching with high accuracy and durability.

The dimensions, measuring approximately 9.78mm in length, 6.4mm in width, and 3.6mm in height, allow for minimal PCB footprint, aiding compact circuit designs. The product is RoHS compliant and manufactured in Japan to meet high-quality standards required for industrial and laboratory use.

High sensitivity and fast response for controlling low-level analogue signals. Incorporates both Normally Open (NO) and Normally Closed (NC) contacts. Reinforced insulation of 5,000 V for increased safety and durability.

Compact surface mount design reduces PCB space by approximately half compared to separate 1 Form A and 1 Form B relays. Low off-state leakage current of 10μA ensures energy efficiency. Wide operating temperature range from -40°C to 85°C for versatile industrial applications.

MOSFET output type ensures efficient AC/DC switching. Compliant with RoHS standards assuring environmental safety.

This solid state relay is ideal for use in industrial automation, electrical control, signal conditioning, and manufacturing systems requiring reliable, fast-switching components with reinforced insulation. Explore other Solid State Relays and related products at EnvMart for comprehensive electrical solutions.
