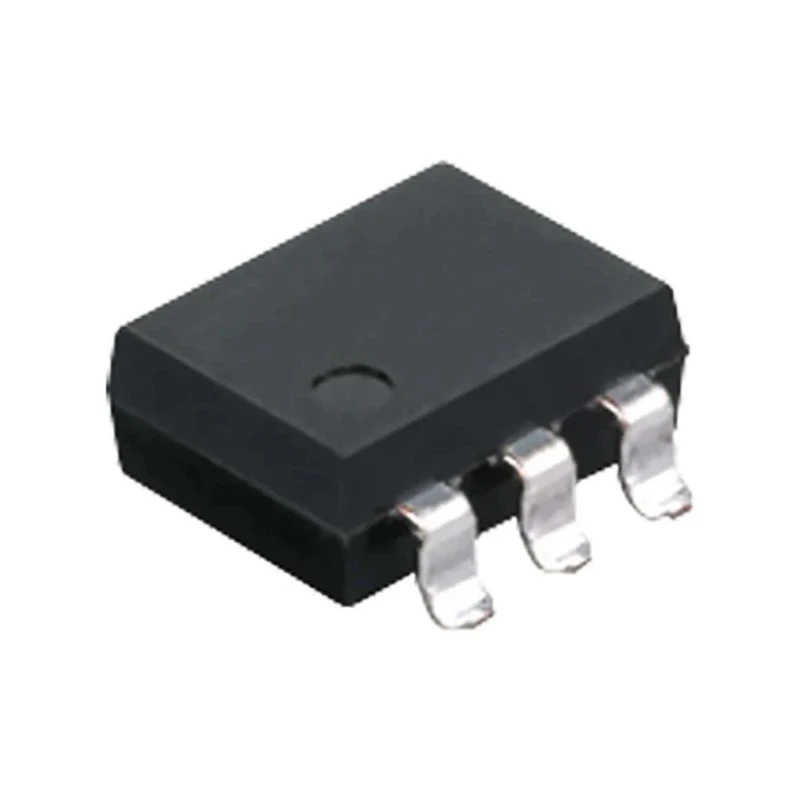

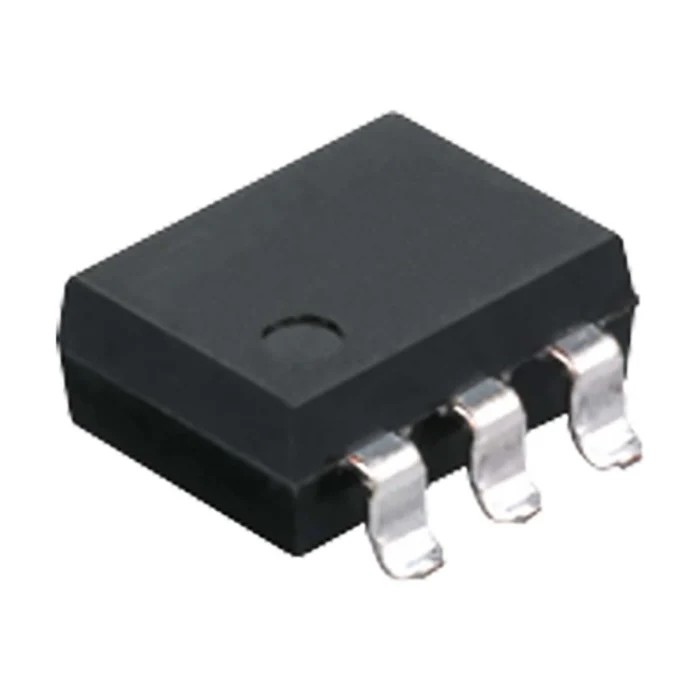

Panasonic PhotoMOS Series Solid State Relay Surface Mount 0.06A Load 1500V Maximum Load AQV258HA
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Model | AQV258HA |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PhotoMOS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 1.3pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 0.06A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 1500V |
| Minimum Load Voltage | 1200V |
| Off State Leakage Current | 10nA |
Key Features
- Low on-resistance and reinforced insulation for enhanced performance.
- Supports AC/DC switching with SPST contact configuration.
- Operates reliably between -40°C to 85°C ambient temperatures.
- Through hole terminal type ensures secure mounting.
- High isolation voltage of 5000Vrms supports safety requirements.
- Extremely low off-state leakage current of 10nA minimises power loss.
- Minimal output capacitance of 1.3pF reduces signal distortion.
- Complies with RoHS environmental standards.
Product Description
Panasonic AQV258HA PhotoMOS Series Solid State Relay is engineered for reliable switching in varying electrical applications, supporting a maximum load current of 0.06A and a maximum load voltage of 1500V. Its surface mount design and SPST contact configuration make it suitable for compact and automated electronic systems.
The relay features a low on-resistance value that improves energy efficiency and reduces heat generation. Reinforced insulation with a 5000Vrms isolation rating ensures enhanced safety between input and output circuits, suitable for sensitive industrial controls and signal conditioning.
Designed to operate under a broad temperature range from -40°C to 85°C, the AQV258HA is robust for use in industrial automation, electrical equipment, and manufacturing environments. Its through hole terminal type facilitates secure installation on printed circuit boards.
The relay supports both AC and DC switching functions, powered by MOSFET output technology to provide stable and noise-free operation. With an off-state leakage current as low as 10nA and a capacitance of 1.3pF, it delivers superior switching performance with minimal interference.
Compliant with RoHS directives, the AQV258HA reflects Panasonic's commitment to environmentally responsible manufacturing. Originating from Japan, this solid state relay is ideal for integration in industrial, laboratory, and commercial electrical applications requiring precise and reliable relay switching.
Low on-resistance and reinforced insulation for enhanced performance. Supports AC/DC switching with SPST contact configuration. Operates reliably between -40°C to 85°C ambient temperatures. Through hole terminal type ensures secure mounting.
High isolation voltage of 5000Vrms supports safety requirements. Extremely low off-state leakage current of 10nA minimises power loss. Minimal output capacitance of 1.3pF reduces signal distortion. Complies with RoHS environmental standards.
Explore the Panasonic range of Solid State Relays and related automation products in the Electronics & Electricals category at EnvMart for reliable performance and technical excellence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.06A.
It supports a maximum load voltage of 1500V.
This unit operates reliably between -40°C to 85°C.
It features an SPST contact configuration.
The output type is MOSFET, which provides stable and noise-free operation.
The off-state leakage current is as low as 10nA, minimizing power loss.
It has a minimal output capacitance of 1.3pF, reducing signal distortion.
Yes, it complies with RoHS environmental standards.
This model features a surface mount design with a through hole terminal type for secure installation.
Yes, it supports AC/DC switching functions.
This solid state relay originates from Japan.
It is part of the PhotoMOS series of solid state relays.
