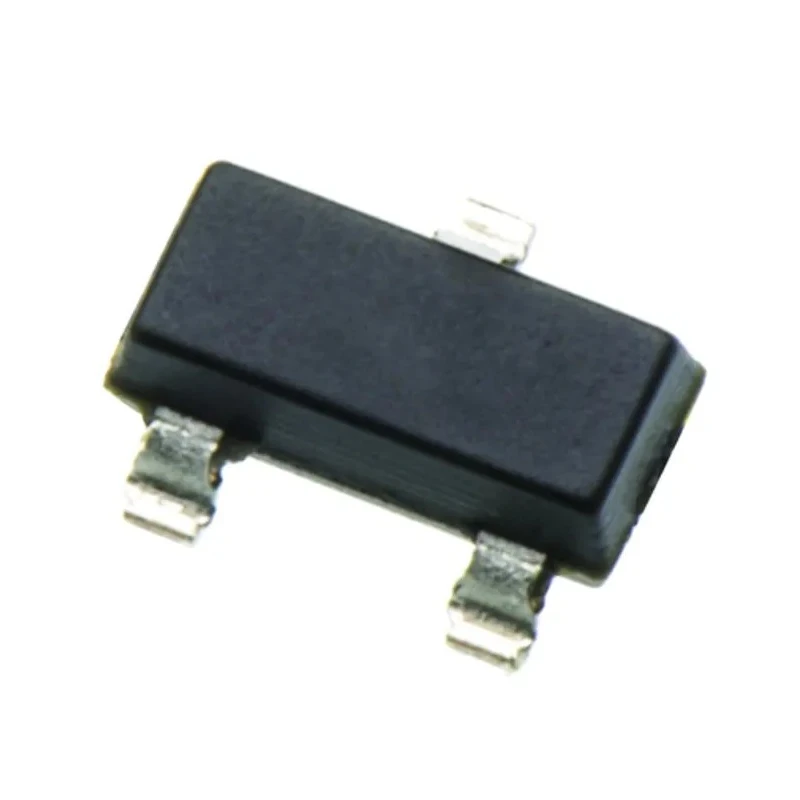

Nexperia 2-Element Bi-Directional TVS Diode 200W Peak Pulse Power, 3-Pin SOT-23 PESD12VL2BT,215
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 3mm |
| Model | PESD12VL2BT,215 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | PESD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 37V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Series |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 14.2V |
| Maximum Reverse Stand-off Voltage Vwm | 12V |
| Peak Pulse Power Dissipation Pppm | 200W |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 5A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Designed for surface mount applications to protect up to two signal lines from ESD and transient voltage damage.
- Offers peak pulse power dissipation of 200 watts for robust transient suppression.
- Features a minimum breakdown voltage of 14.2 V and maximum reverse stand-off voltage of 12 V.
- Operates reliably in temperature ranges from -65°C to 150°C for harsh environments.
- Provides low capacitance and bi-directional clamping voltage of 37 V, ensuring signal integrity.
- Compact 3-pin SOT-23 package with dimensions 3 mm length, 1.4 mm width, and 1 mm height.
- Meets automotive standard AEC-Q101, suitable for automotive and industrial applications.
- Includes two diode elements per chip to handle dual line ESD protection.
Product Description
Nexperia PESD12VL2BT,215 is a 2-element bi-directional transient voltage suppressor (TVS) diode designed for high-performance electrostatic discharge (ESD) protection. It supports a peak pulse power dissipation of 200 watts and comes in a compact 3-pin SOT-23 surface-mount package.
This diode provides low capacitance protection for up to two signal lines, offering a minimum breakdown voltage of 14.2 V and a maximum reverse stand-off voltage of 12 V. Its bi-directional design clamps voltages efficiently to 37 V, ensuring system reliability during voltage spikes and surges. Operating temperature ranges from -65°C to 150°C make it suitable for demanding industrial, automotive, and consumer electronic environments.
The device meets the stringent automotive AEC-Q101 standard, making it ideal for automotive electronics systems. With a maximum peak pulse current of 5 A and leakage current limited to 50 nA, it maintains signal integrity and reduces leakage losses. The diode's compact dimensions (3 mm length, 1.4 mm width, and 1 mm height) support space-constrained PCB layouts.
Provides robust ESD protection up to 200 W peak pulse power. Bi-directional TVS diode for comprehensive transient voltage suppression. Compact SOT-23 package optimized for surface mounting. Wide operating temperature range from -65°C to 150°C.
Low leakage current ensures minimal signal interference. Automotive standard AEC-Q101 compliant for reliability. Contains two diode elements per chip for dual line protection. Suitable for industrial, automotive, and consumer electronics applications.
This Nexperia TVS Diode is commonly used in electronic protection circuits to safeguard sensitive semiconductor components from damage caused by ESD, inductive switching, and other transient events. It is suitable for industrial control systems, automotive electronics, telecommunications, consumer devices, and general electronics assemblies requiring reliable overvoltage protection.
Explore the range of semiconductor protection components at EnvMart to find quality diodes, transistors, and other discrete semiconductors designed for durable electrical performance.
