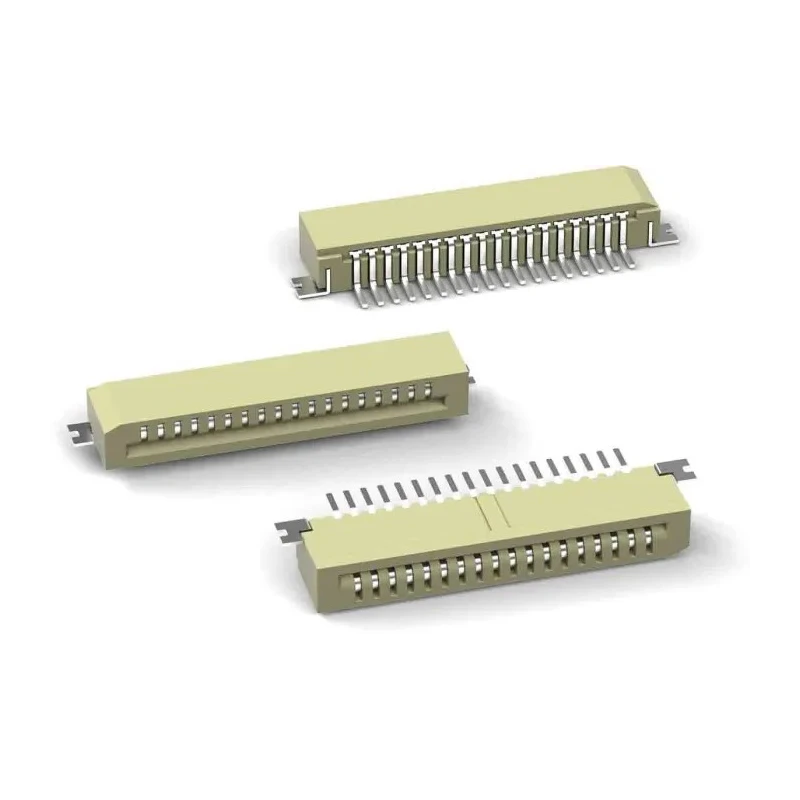

Wurth Elektronik WR-FPC Series Horizontal Surface PCB Header, 30 Contacts, 1 mm Pitch, 1 Row, Shrouded 686130188622

Wurth Elektronik 686130188622 is a high-quality horizontal surface PCB header belonging to the WR-FPC series, designed to provide robust electrical connections for printed circuit boards. It features 30 stamped contacts arranged in a single row with a 1 mm pitch, making it suitable for compact and precise electronic assemblies.

The connector housing is made of liquid crystal polymer (LCP), providing excellent mechanical and thermal stability. Contacts are composed of phosphor bronze with a plating of 2.032 μm tin over 1.27 μm nickel to ensure corrosion resistance and reliable conductivity over the product lifespan.

This shrouded PCB header is engineered for surface mounting, allowing easy integration into modern PCB manufacturing processes. It supports a current of 1A and an operating voltage of up to 125V AC, suitable for a wide range of electronic components and systems.

The operating temperature range extends from -25°C to 85°C, enabling usage across industrial, commercial, and lab electronic applications. Its solder termination method ensures a secure and lasting connection to the PCB.

Compliance with RoHS standards confirms that this product meets environmental and safety regulations. The horizontal orientation of the connector optimizes board layout and assembly. Its design is ideal for demanding electronic applications requiring dependable wire-to-board connections.

Features a pitch of 1 mm for precise board connections. Comprises 30 contacts arranged in a single row. Constructed with liquid crystal polymer housing for durability. Contacts made of phosphor bronze with tin over nickel plating ensure reliable conductivity.

Shrouded type for enhanced protection and stability. Designed for surface mount applications in PCB designs. Operating temperature range from -25°C to 85°C for versatile environments. Supports a current rating of 1A and voltage up to 125 V AC.

Termination by solder, enabling secure and durable connections. RoHS compliant ensuring environmental safety.

This PCB Header is suitable for use in electronics manufacturing, including industrial controls, telecommunications equipment, consumer electronics, and laboratory instrumentation.
