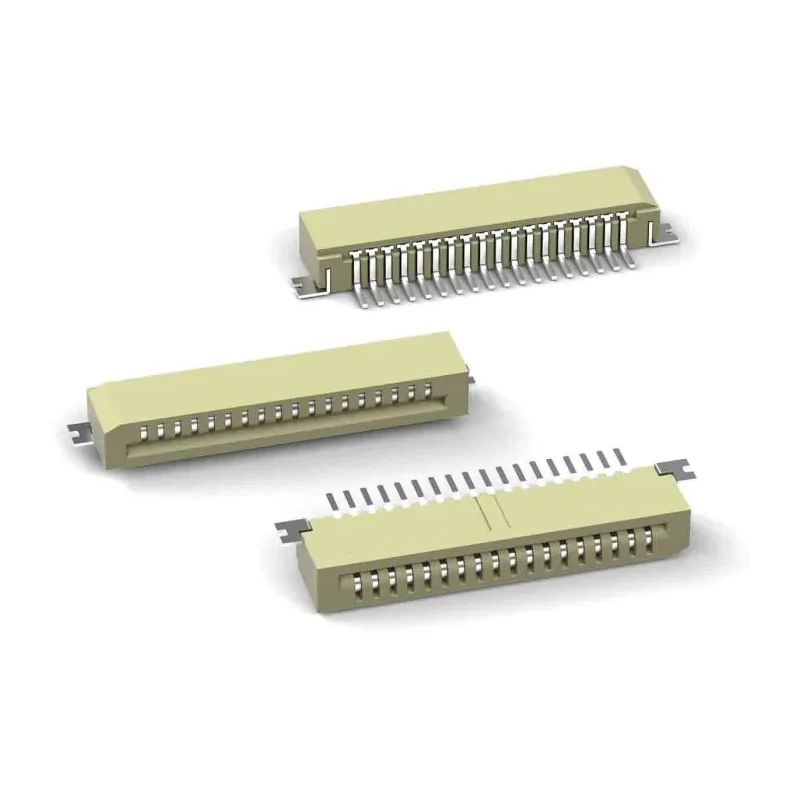

Wurth Elektronik WR-FPC Series Horizontal Surface PCB Header 22 Contacts 1 mm Pitch 1 Row Shrouded 686122188622
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Contact Type | Stamped |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 22 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a pitch size of 1 mm for precise PCB connections.
- Constructed with a liquid crystal polymer housing for durability.
- Supports a current rating of 1A with stamped phosphor bronze contacts.
- Contact plating is tin over nickel providing effective corrosion resistance.
- Operates at voltages up to 125V with a temperature range from -25°C to 85°C.
- Designed for horizontal orientation and surface mount type for PCB integration.
- Shrouded connector ensures reliable contact protection and alignment.
- Ideal for wire-to-board connector systems in electronic applications.
Product Description
Wurth Elektronik 686122188622 Horizontal Surface PCB Header is a high-quality electronic component designed for reliable PCB connections. It features 22 contacts arranged in a single horizontal row with a precise 1 mm pitch, optimized for surface mount applications.
The housing is made from liquid crystal polymer, delivering excellent mechanical strength and temperature resistance, while the contacts are stamped phosphor bronze, plated with 2.032 μm tin over 1.27 μm nickel to provide outstanding conductivity and corrosion resistance.
Rated for a current of 1A and a voltage of 125V, this PCB Header supports operating temperatures from -25°C up to 85°C, making it suitable for a wide range of industrial and electronic environments.
The shrouded design offers protection to the contacts and ensures better alignment during assembly. It is intended for wire-to-board connections, particularly in electronic devices requiring durable and reliable connectors.
Compliance with RoHS standards highlights its suitability for environmentally conscious manufacturing. This connector is manufactured in China following strict quality controls and is well-suited for industrial electronics, telecommunications, instrumentation, and other PCB integration applications.
Features a pitch size of 1 mm for precise PCB connections. Constructed with a liquid crystal polymer housing for durability. Supports a current rating of 1A with stamped phosphor bronze contacts. Contact plating is tin over nickel providing effective corrosion resistance.
Operates at voltages up to 125V with a temperature range from -25°C to 85°C. Designed for horizontal orientation and surface mount type for PCB integration. Shrouded connector ensures reliable contact protection and alignment.
Ideal for wire-to-board connector systems in electronic applications. RoHS compliant ensuring adherence to environmental standards. Manufactured in China with high-quality industry standards. Explore more electronic components and connectors at EnvMart to find the perfect solution for your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this PCB header is 1 mm, allowing for precise connections on printed circuit boards.
This model features 22 contacts arranged in a single row, designed for horizontal surface mounting.
It operates at a maximum voltage of 125V, suitable for various electronic applications.
The connector supports a current rating of 1A, making it suitable for low-power applications.
The housing is made from liquid crystal polymer, and the contacts are stamped phosphor bronze plated with tin over nickel for corrosion resistance.
It operates within a temperature range of -25°C to 85°C, accommodating various environmental conditions.
Yes, this connector is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
This model uses solder termination, which is standard for PCB connections.
It is designed for wire-to-board connections, commonly used in various electronic devices.
This PCB header is designed for horizontal orientation, facilitating surface mount applications.
The contacts are plated with tin over nickel, providing effective corrosion resistance and conductivity.
It is manufactured in China, adhering to strict quality controls in production.
