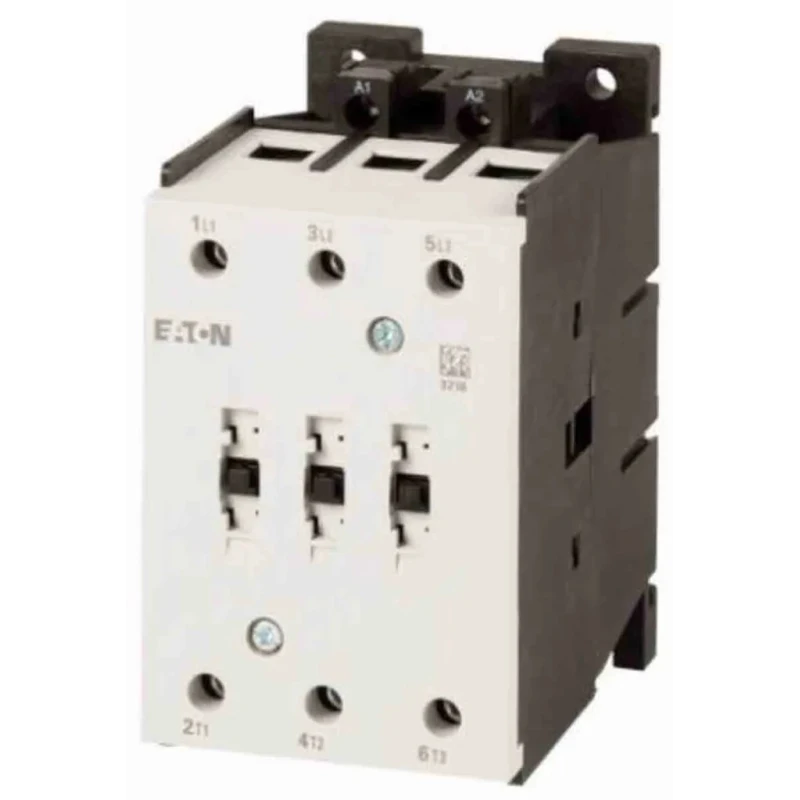

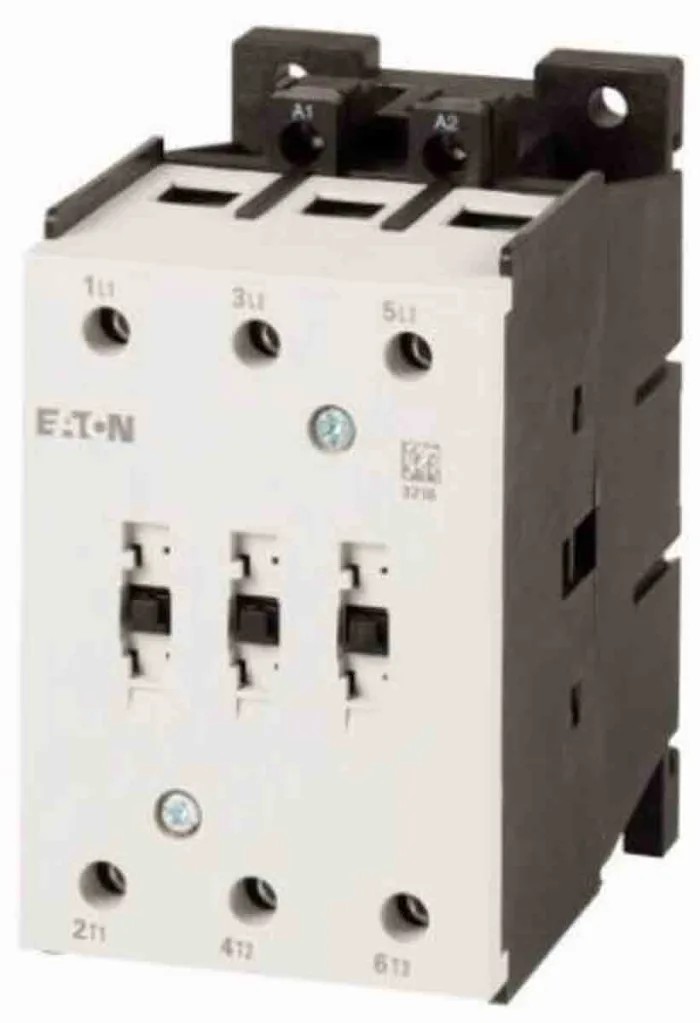

Eaton 24V DC Coil, 3-Pole, 95 A, 45 kW Motor Control Contactor DILMT7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Function | Motor Control, Resistive Load |
| Length | 112mm |
| Model | DILMT7 |
| Depth | 125mm |
| Width | 72mm |
| Mount Type | DIN Rail |
| Series | DILMT7 |
| Power Rating | 45kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, IEC, EN, CSA |
| Contact Voltage | 690V |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 95A |
| Auxiliary Contact Configuration | 0 NO/0 NC |
| Operational Current Ie | 95A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Equipped with a 24V DC coil for efficient electrical operation.
- Features three poles supporting up to 95 A contact current.
- Rated power handling of 45 kW suitable for motor control.
- Constructed for mounting on DIN Rail for easy installation.
- Includes screw clamp terminal type ensuring secure connections.
- Operates reliably between -25°C to 55°C ambient temperatures.
- Designed with 3 normally open (NO) main contacts configuration.
- Auxiliary contact configuration is 0 NO/0 NC for additional control options.
Product Description
The Eaton DILMT7 contactor is a high-performance electrical device equipped with a 24V DC coil and designed primarily for motor control and resistive load applications. This 3-pole contactor supports a contact current of 95 A and has a rated power of 45 kW, making it ideal for industrial and commercial motor control tasks.
Featuring a DIN Rail mount, the compact design with a length of 112 mm, width of 72 mm, and depth of 125 mm allows for convenient installation in control panels and switchgear. Screw clamp terminals ensure tight and reliable electrical connections.
Designed to perform in a wide temperature range from -25°C up to 55°C, this contactor provides robust operation under diverse environmental conditions. The device includes 3 normally open (NO) contacts with no auxiliary contacts (0 NO/0 NC), tailored for straightforward motor control functions.
Manufactured according to international standards including UL, IEC, EN, and CSA, the Eaton DILMT7 contactor guarantees safety, reliability, and compatibility with global electrical systems. It is ideal for applications involving motor control, resistive loads, and AC induction motors, supporting normal switching in 50 to 60Hz AC systems at contact voltages up to 690V.
Equipped with a 24V DC coil for efficient electrical operation. Features three poles supporting up to 95 A contact current. Rated power handling of 45 kW suitable for motor control. Constructed for mounting on DIN Rail for easy installation.
Includes screw clamp terminal type ensuring secure connections. Operates reliably between -25°C to 55°C ambient temperatures. Designed with 3 normally open (NO) main contacts configuration. Auxiliary contact configuration is 0 NO/0 NC for additional control options.
Compact dimensions: length 112 mm, width 72 mm, depth 125 mm. Complies with UL, IEC, EN, and CSA standards. Explore the Eaton product range in Contactors and relays at EnvMart for advanced automation and motor control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILMT7 contactor has a rated power handling of 45 kW, making it suitable for motor control applications.
This model can support a maximum contact current of 95 A.
The coil voltage for the Eaton DILMT7 contactor is 24V DC.
The dimensions of the DILMT7 are 112 mm in length, 72 mm in width, and 125 mm in depth.
It features screw clamp terminals, ensuring secure electrical connections.
This contactor operates reliably between -25°C and 55°C ambient temperatures.
The DILMT7 contactor is designed with 3 poles.
It is designed with 3 normally open (NO) main contacts configuration.
This contactor complies with UL, IEC, EN, and CSA standards.
It is suitable for motor control and resistive load applications.
The contact voltage rating for the Eaton DILMT7 is up to 690V.
It is constructed for mounting on DIN Rail, facilitating easy installation in control panels.
