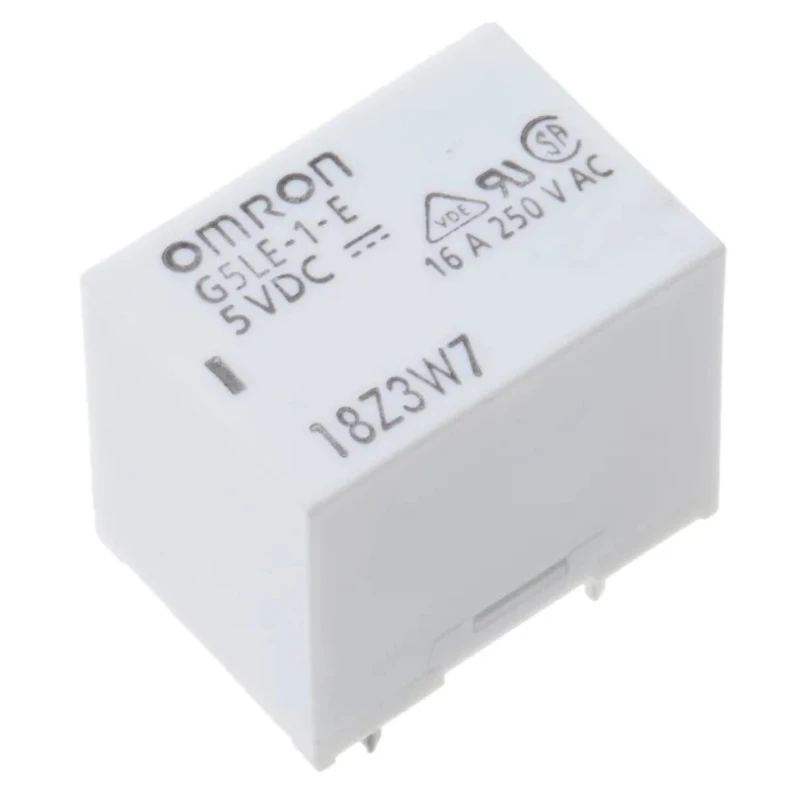

Omron High Frequency PCB Relay 5V DC Coil 16A Contact Current Silver Alloy SPDT G5LE-1-E DC5

Omron G5LE-1-E DC5 is a High Frequency PCB Relay engineered for industrial and electronic circuit applications requiring precise and reliable switching. Featuring a 5V DC coil and Single Pole Double Throw (SPDT) contact configuration, this relay suits PCB mount designs.

Its coil resistance is 63 ohms, consuming 400mW of power. The contact material is a silver alloy which offers excellent conductivity and durability under high current loads. With a contact current rating of 16A, it supports demanding switching operations.

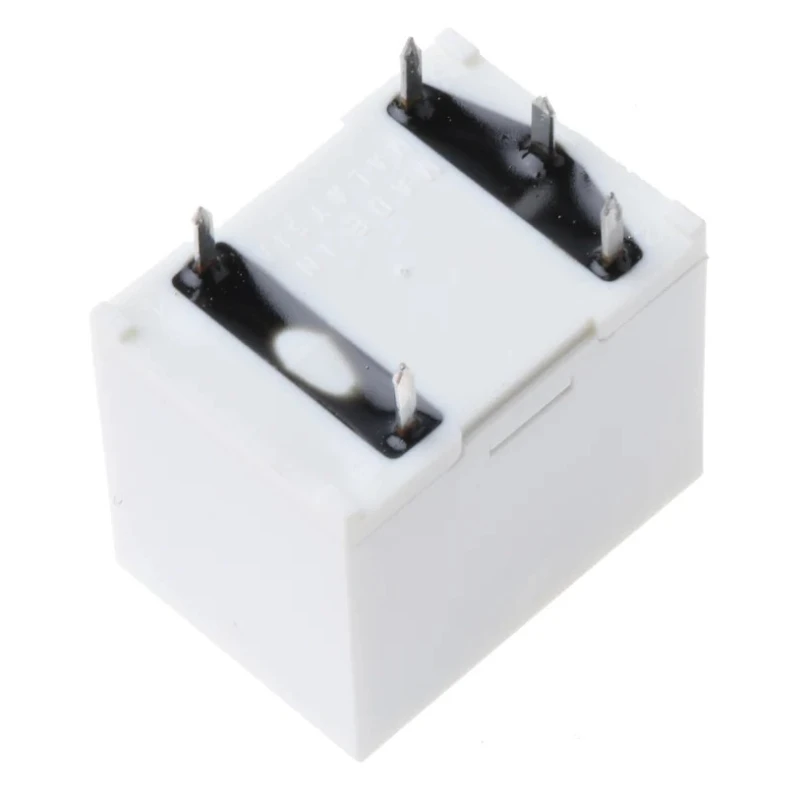

The relay has low contact resistance of 100 milliohms, improving efficiency and reducing signal loss. The terminal type is through-hole, designed for secure PCB mounting and integration into control circuits.

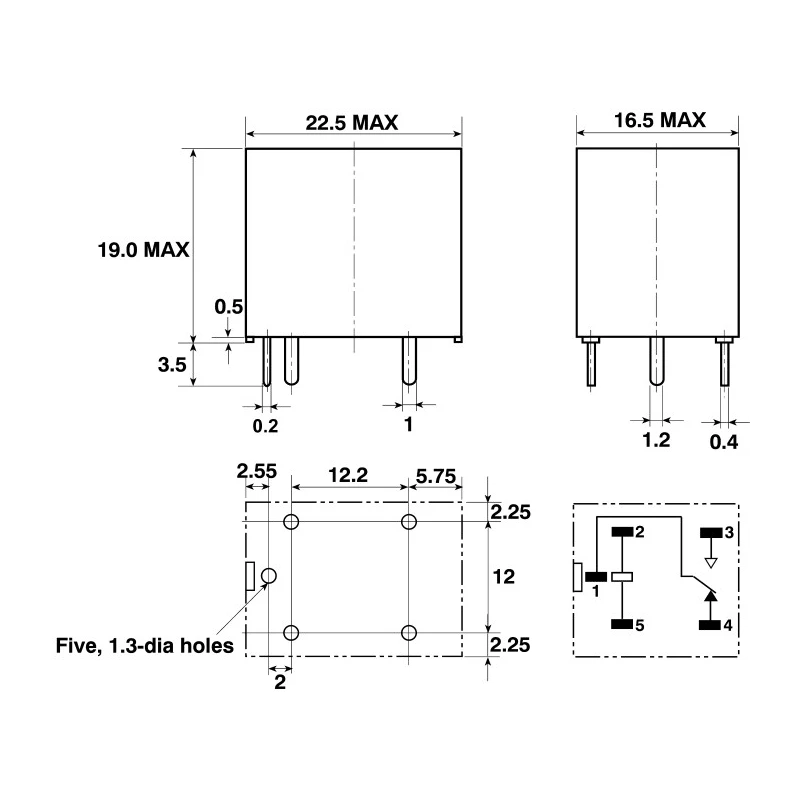

Operating reliably between -25°C and 85°C, the relay suits a variety of environmental conditions common in industrial and commercial electronics assemblies. Its compact dimensions of 22.5 mm length and 19 mm height allow space-saving implementations in densely packed circuits.

Omron G5LE series relays are known for high impulse withstand voltage of up to 4500V, ensuring robustness against transient voltages. This model is ideal for precise control circuit applications in industrial automation, instrumentation, and communications equipment.

This relay features a coil resistance of 63 ohms. It has a contact resistance of 100 milliohms ensuring low loss. Designed with a silver alloy contact material for durability. Supports a high contact current rating of 16 amperes.

Mounts via through-hole terminals on PCB boards. Operates effectively over a temperature range of -25°C to 85°C. Compact dimensions measure 22.5 mm length by 19 mm height. Coil power consumption is 400 milliwatts. Designed as a subminiature 'sugar cube' style relay for compact control circuits.

Manufactured in Malaysia, assuring quality and reliability.

This product is suitable for use in industrial electronics, automation systems, control panels, and high-frequency signal switching applications. It is a reliable choice for OEMs and repair services requiring durable, high-quality relays compliant with UL, CSA, and VDE standards.
