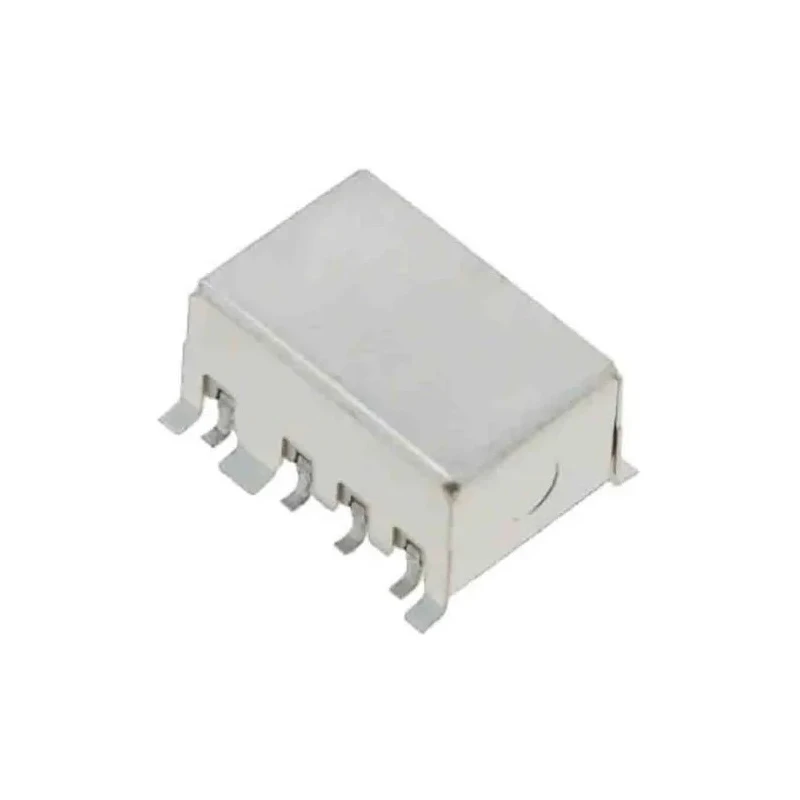

Omron Surface Mount High Frequency Relay 5V DC Coil 1 GHz Max Coil Frequency DPDT G6K-2F-RF-S DC5

Omron G6K-2F-RF-S DC5 surface mount high frequency relay is designed for superior performance in RF and communication applications, with a maximum coil frequency of 1 GHz and 5V DC coil voltage. This DPDT relay is ideal for use in industrial electronics, broadcasting, and audio-visual equipment requiring high-frequency signal switching and durability.

It features a coil resistance of 237 ohms and a low contact resistance of 100 milliohms, ensuring efficient electrical transmission and minimal signal loss. With an insertion loss of only 0.2 dB and isolation of 20 dB, it maintains signal integrity and reduces interference in sensitive circuits.

The relay has a surface mount design, making it suitable for compact PCB layouts and automated assembly processes. Supporting a contact current of 1 Amp, the relay handles typical signal and control currents effectively. Its latching coil type allows it to maintain state without continuous power, offering energy-efficient operation.

Rated for reliability, it performs well across a broad temperature range from -40°C up to +70°C, supporting demanding industrial conditions. The product conforms to RoHS regulations, meeting important safety and environmental standards. Manufactured in Japan, this relay combines quality with advanced functionality.

DPDT contact configuration provides versatile switching options. Coil resistance of 237Ω balances power consumption and performance. Low contact resistance of 100mΩ improves signal quality and reliability. Insertion loss of 0.2 dB supports high-frequency applications up to 1 GHz.

Isolation minimum of 20 dB reduces interference and crosstalk. Surface mount design supports modern PCB assembly techniques. Contact current rated at 1A suitable for control and signal switching. Latching coil type reduces power consumption by maintaining state without power.

Wide operating temperature range ensures performance in harsh conditions. RoHS compliant to meet environmental and safety standards.

This high frequency relay by Omron is widely used in communications, industrial automation, broadcasting, and audio-visual equipment, providing reliable and precise switching at high frequencies. For professionals in electronics and engineering, it offers a robust solution for signal conditioning and relay switching tasks.
