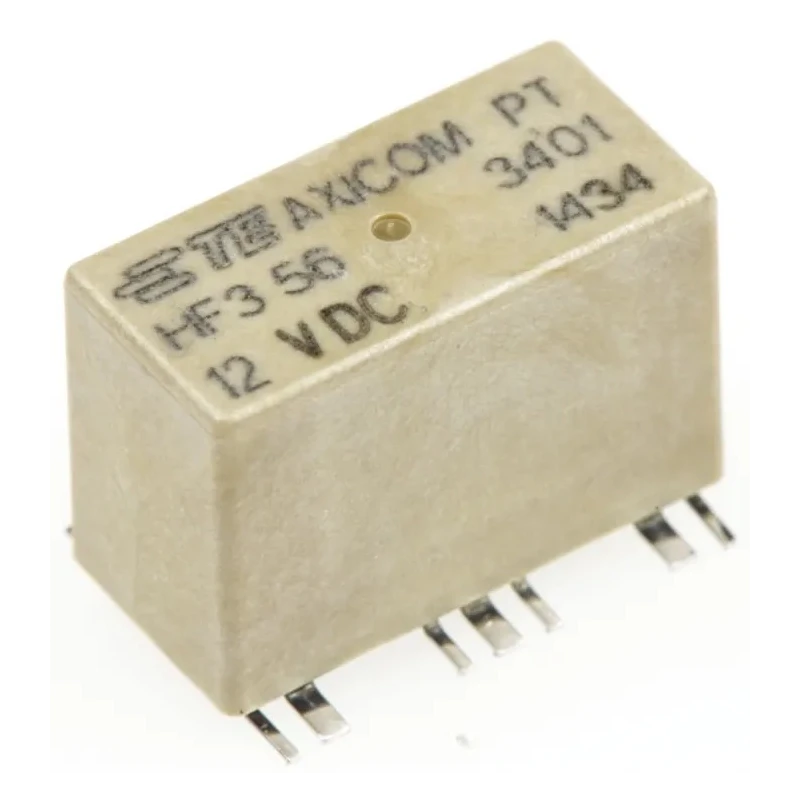

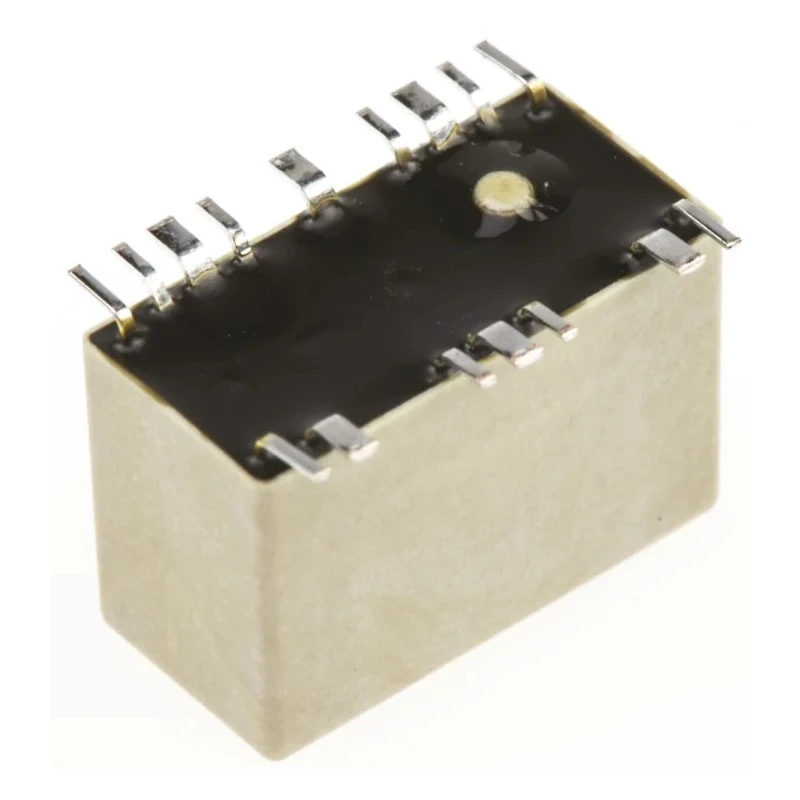

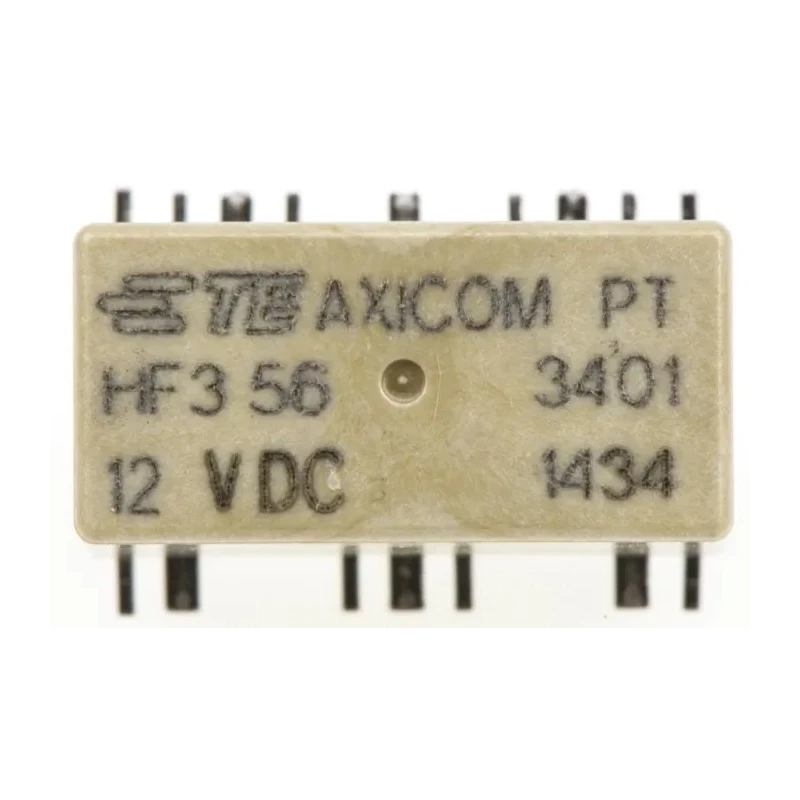

TE Connectivity PCB RF Relay 12V DC Coil 3 GHz Max Coil Frequency SPDT HF3-56

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PCB RF Relay 12V DC Coil 3 GHz Max Coil Frequency SPDT HF3-56

Name: TE Connectivity PCB RF Relay 12V DC Coil 3 GHz Max Coil Frequency SPDT HF3-56
Brand: TE Connectivity
SKU: 199110
Price: 21.68 USD
Availability: InStock



Category HF & RF Relays Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Height	10mm
Length	14.6mm
Model	HF3-56
Mount Type	PCB
Isolation	-72dB
Contact Material	Gold Plated
Series	HF3
Maximum Operating Temperature	85°C
Coil Type	Non-Latching
Contact Configuration	SPDT
Minimum Operating Temperature	-55°C
Contact Resistance	100mΩ
Standards/Approvals	REACH, RoHS
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Coil Resistance	1.028Ω
Coil Power	140mW
Contact Current	2A
Insertion Loss	-0.12dB
Maximum Coil Frequency	3GHz

Key Features

Operates with a 12V DC coil voltage suitable for PCB mounting.
Supports frequencies up to 3 GHz, ideal for RF circuits.
Utilizes gold-plated contacts for enhanced conductivity and reliability.
Coil power consumption is low at 140mW, enabling efficient operation.
Wide operating temperature range from -55°C to 85°C for harsh environments.
Contact rating of 2A current ensures robust switching capability.
Non-latching coil type with SPDT (single pole double throw) switch configuration.
Meets industry standards including REACH and RoHS compliance.

Product Description

TE Connectivity HF3-56 PCB RF Relay is a high-frequency relay designed for PCB mounting with a 12V DC coil and a maximum coil frequency of 3 GHz. It supports SPDT contact configuration and is suitable for 50 ohm systems in radio frequency applications.

The relay features gold-plated contact materials to ensure excellent conductivity and durability, with a coil power consumption of only 140mW which contributes to energy-efficient performance. The dimensions are compact with a length of 14.6mm and height of 10mm, making it ideal for space-constrained PCB designs.

Operating temperature ranges from -55°C to 85°C, allowing it to function reliably in various industrial environments. The non-latching coil type provides stable switching action, and the 2A contact current rating supports robust switching of signals.

This relay meets important industry standards including REACH and RoHS, ensuring environmental compliance. It is widely used in applications such as cable modems, line cards, CATV, measurement and test equipment, satellite audio/video tuners, switching boards, and wireless base stations and antennas.

Operates with 12V DC coil voltage for PCB mounting applications. Handles frequencies up to 3 GHz suitable for RF circuit switching. Employs gold-plated contacts for reliable operation and longevity. Low coil power consumption of 140mW reduces energy use in systems.

Compact size helps optimize PCB real estate. Wide temperature tolerance from -55°C to 85°C for industrial use. SPDT contact configuration supports multiple signal routing needs. Non-latching coil design ensures secure switching performance.

Complies with REACH and RoHS directives for environmental safety. Ideal for telecommunications, broadcasting, and measuring equipment. Explore the HF & RF Relays category on EnvMart for more high-frequency relay solutions and technical products from TE Connectivity and other leading manufacturers.
