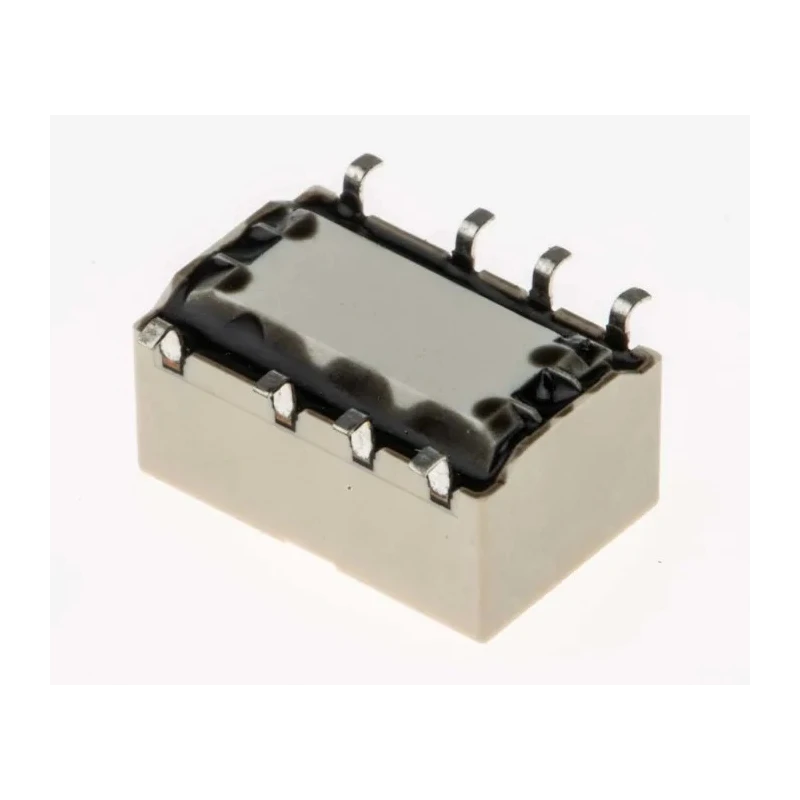

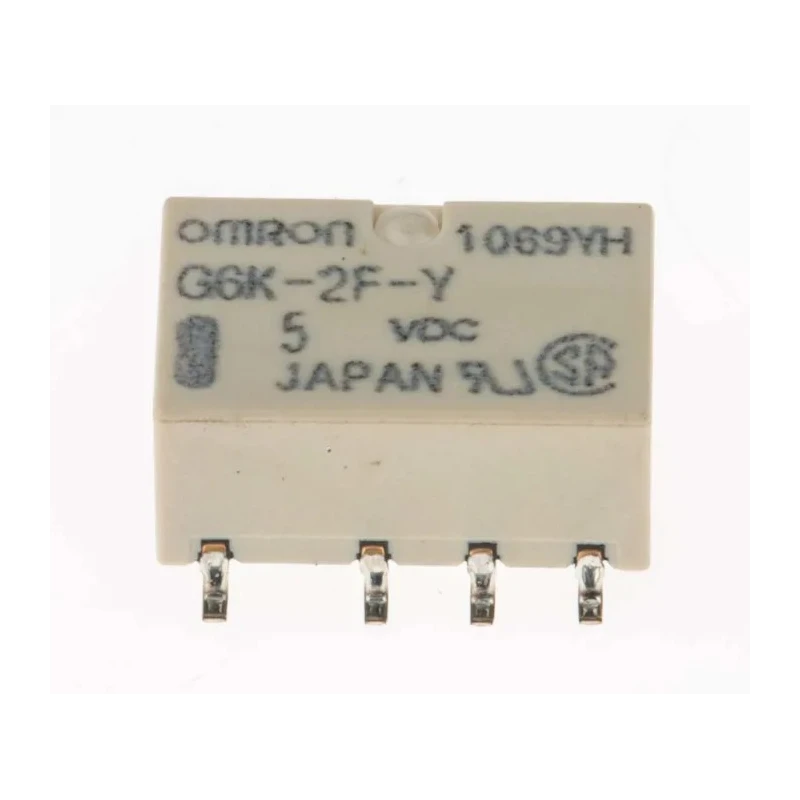

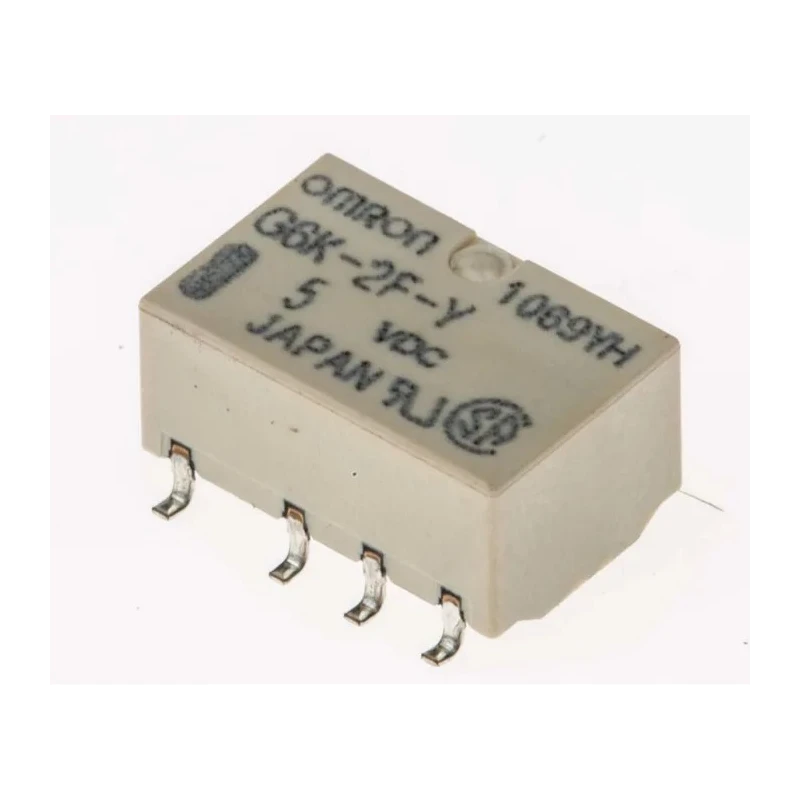

Omron Surface High Frequency Relay DPDT, 5V DC Coil, Silver Alloy Contacts, 1A, 237Ω Coil Resistance G6K-2F-Y DC5 BYOMR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 5.2mm |
| Length | 10mm |
| Model | G6K-2F-Y DC5 BYOMR |
| Mount Type | Surface |
| Isolation | 20dB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 70°C |
| Coil Type | Latching |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 237Ω |
| Coil Power | 100mW |
| Contact Current | 1A |
| Insertion Loss | 0.2dB |
| Aratas Surface Signal Relay, 5V dc Coil, 1A, DPDTBrand | Omron |
Key Features
- The relay features a coil resistance of 237 ohms ensuring stable coil operation.
- Contact resistance is minimized to 100 milliohms for efficient signal transmission.
- Insertion loss is kept at a low 0.2dB for superior performance in high-frequency applications.
- Isolation provides 20dB minimum, suitable for sensitive electronic circuits.
- Designed for surface mounting with compact dimensions of 10mm length and 5.2mm height.
- Operates reliably between temperatures of -40°C to 70°C.
- Contact current rating is 1 ampere for safe handling of electrical loads.
- Utilizes latching coil type with coil power of 100mW for energy efficiency.
Product Description
Omron G6K-2F-Y DC5 BYOMR surface high frequency relay is a DPDT relay with a 5V DC coil designed for applications requiring high isolation and low insertion loss. The relay's fully sealed construction offers enhanced durability and performance in industrial and electronic devices.
This relay provides a coil resistance of 237Ω, ensures low contact resistance of 100mΩ, and maintains insertion loss at 0.2dB maximum. It achieves an isolation rating of at least 20dB, making it ideal for sensitive signal switching in RF and electronic applications.
The device operates over a wide temperature range from -40°C to 70°C and features a latching coil consuming approximately 100mW, ensuring energy-efficient operation. Its contact configuration is DPDT with a current rating of 1A, and contact materials use silver alloy for durability and excellent conductivity.
The relay is designed for surface mounting with a compact form factor measuring 10mm in length and 5.2mm in height, facilitating easy integration into printed circuit boards. The relay features a coil resistance of 237 ohms ensuring stable coil operation.
Contact resistance is minimized to 100 milliohms for efficient signal transmission. Insertion loss is kept at a low 0.2dB for superior performance in high-frequency applications. Isolation provides 20dB minimum, suitable for sensitive electronic circuits.
Operates reliably in a temperature range of -40°C to 70°C. Contact current rating is 1 ampere for safe handling of electrical loads. Utilizes latching coil type with coil power of 100mW for energy efficiency. Contact material is high-quality silver alloy to ensure durability and conductivity.
This relay is widely used in industrial automation, electrical systems, RF devices, and other electronic equipment requiring high reliability and signal integrity. The compact size and low power coil consumption make it suitable for dense PCB layouts in commercial and manufacturing environments.
Choose Omron for proven quality and robust relay solutions designed for various high-frequency and signal conditioning applications.
Explore more products in our HF & RF Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching applications.
The coil resistance is 237 ohms, ensuring stable coil operation during use.
It can operate reliably at temperatures up to 70°C.
The contact current rating is 1 ampere, suitable for handling electrical loads safely.
This unit utilizes a latching coil type, which consumes approximately 100mW of power for energy efficiency.
The insertion loss is kept at a low maximum of 0.2dB, making it suitable for high-frequency applications.
The relay has compact dimensions of 10mm in length and 5.2mm in height, facilitating easy integration into circuit boards.
The minimum operating temperature is -40°C, allowing for use in a wide range of environments.
The contacts are made of silver alloy, providing excellent conductivity and durability.
It provides a minimum isolation rating of 20dB, suitable for sensitive electronic circuits.
This model complies with RoHS standards, ensuring it meets environmental regulations.
It is designed for surface mounting, making it easy to integrate into various applications.
