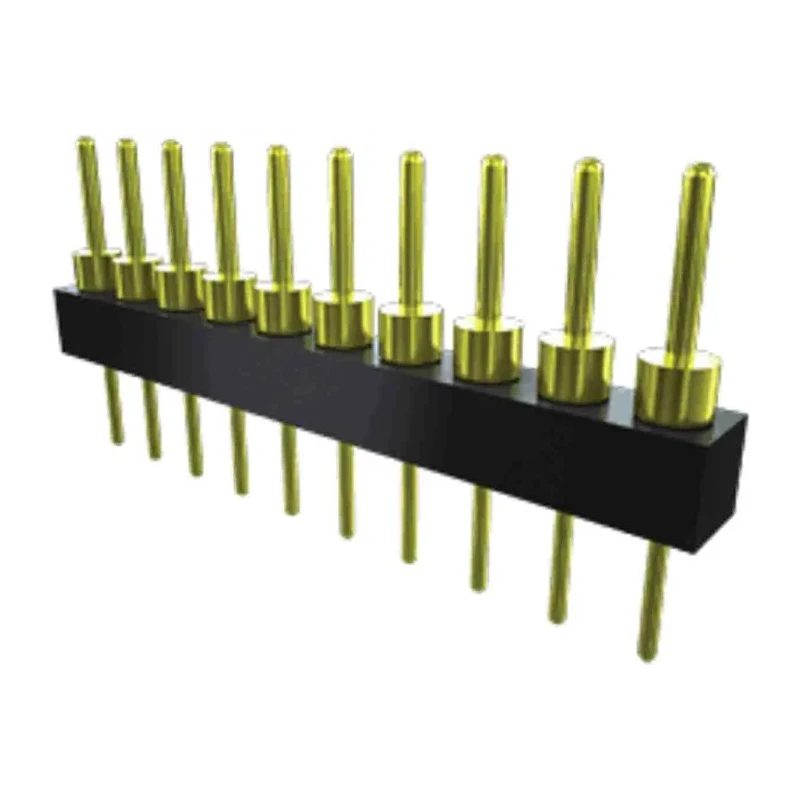

Samtec TS Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded TS-120-T-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec TS Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded TS-120-T-A

Name: Samtec TS Series Straight Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded TS-120-T-A
Brand: Samtec
SKU: 163272
Price: 3.35 USD
Availability: InStock



Category PCB Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Model	TS-120-T-A
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Phosphor Bronze
Series	TS
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Tail Pin Length	3.96mm
Mating Pin Length	4.22mm

Key Features

This pin header features a durable glass filled polyester housing for enhanced reliability.
It has 20 male contacts arranged in a single row for board-to-board connection.
The contact material is phosphor bronze with tin plating, ensuring good conductivity and solderability.
The mounting type is through hole, providing a secure mechanical and electrical connection.
The operating temperature range is from -55°C to 125°C, suitable for industrial and electronic applications.
Contact and mating pin lengths are 3.96 mm and 4.22 mm respectively, optimizing connectivity.
The header is unshrouded, facilitating easy mating with corresponding connectors.
It complies with RoHS regulations for environmental safety.

Product Description

Samtec TS-120-T-A is a high precision TS Series straight through hole pin header designed for reliable electronic board connections. It features 20 male contacts arranged in a single row, with a 2.54 mm pitch, enabling efficient space utilization on printed circuit boards. The housing is made from black glass filled polyester offering excellent insulation and mechanical stability.

The contact material is phosphor bronze with tin plating, providing optimal conductivity and durability. The product has a mounting type of through hole with solder termination, ensuring strong electrical and mechanical bonding during assembly. Operating temperature ranges from -55°C to 125°C, making it suitable for demanding industrial, manufacturing, and electronic applications.

This pin header supports board-to-board connector systems and is unshrouded for flexible mating configurations. The tail pin length is 3.96 mm and mating pin length is 4.22 mm, designed to meet standard connector dimensions. It is RoHS compliant, ensuring environmentally friendly manufacturing and use.

Durable glass filled polyester housing material. 20 male contacts in one row with 2.54 mm pitch. Phosphor bronze contacts with tin plating. Straight orientation with through hole mounting. Operating temperature from -55°C to 125°C.

Unshrouded for convenient connector mating. RoHS compliant in manufacture and materials.

This PCB pin header from Samtec is ideal for use in electronics manufacturing, industrial control systems, telecommunications equipment, and other applications where reliable board-to-board connections are required. Its robust design ensures long service life and dependable performance in harsh environments. Explore the full range of Samtec PCB Connectors at EnvMart for your next electronic design project.
