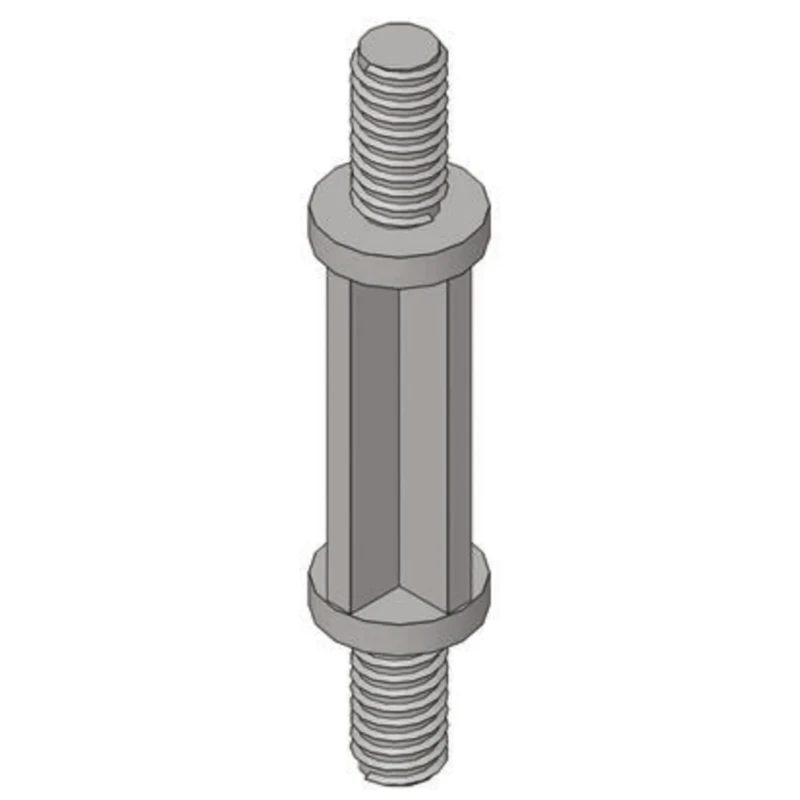

Essentra Nylon PCB Support Pillar 6.4 mm Height 21.6 mm Overall Height 4 mm PCB Hole Diameter CBS-TMM-M4-04-01

Essentra CBS-TMM-M4-04-01 is a high-quality nylon PCB support pillar designed to ensure stable and reliable mounting of printed circuit boards. It features a pillar height of 6.4 mm and an overall height of 21.6 mm, making it ideal for spacing PCBs in electronic assemblies where precise height and solid support are essential.

Constructed from durable nylon, this support pillar provides excellent electrical insulation while offering mechanical strength for robust PCB fixation. The 4 mm PCB hole diameter compatibility allows for secure screw or nut fastening. The support base width of 7.1 mm enhances the stability of the mounted board.

This component complies with strict standards including UL 94 V-2 flame retardancy, RMS-01, and RoHS mandates, ensuring safety, performance, and environmental responsibility. Its design suits numerous applications including electronic manufacturing, laboratory prototyping, cleanroom assembly, and other technical sectors requiring reliable PCB Supports.

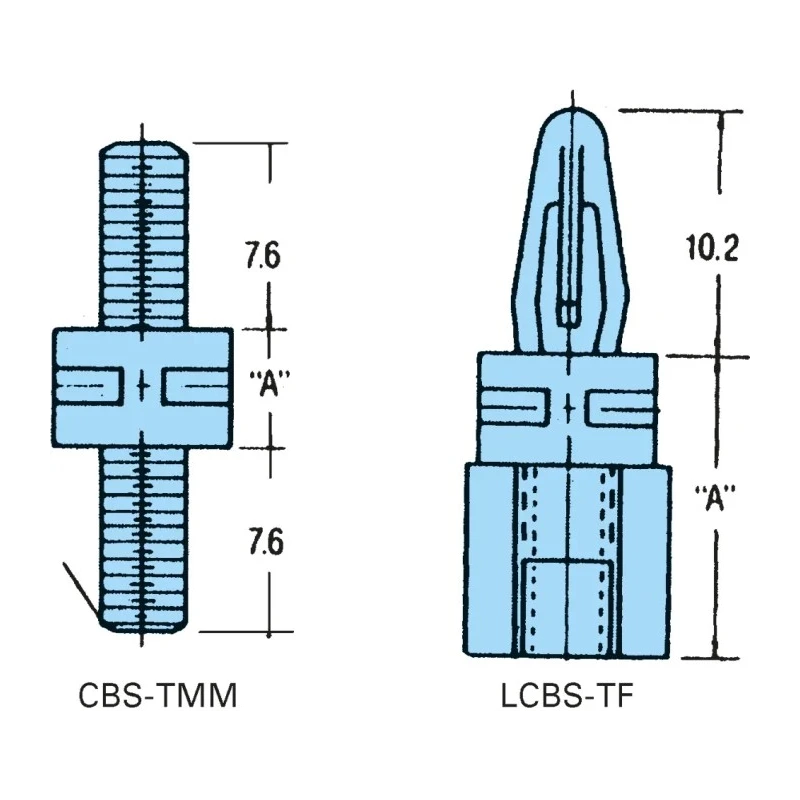

Essentra’s manufacturing excellence and United Kingdom origin ensure consistent quality and durability with each pillar. These support pillars are part of LCBS-TF and CBS-TMM series spacers, which are commonly fixed using screws or nuts.

Durable nylon material ensures electrical insulation and mechanical strength. Precisely engineered pillar height and overall height for effective PCB spacing. Designed for PCBs with 4 mm mounting holes for secure attachment.

Wide support base width enhances stability of mounted circuit boards. Conforms to UL 94 V-2, RMS-01, and RoHS compliance standards. Ideal for industrial, laboratory, manufacturing, and electronics prototyping uses. Manufactured in the United Kingdom with strict quality control.
