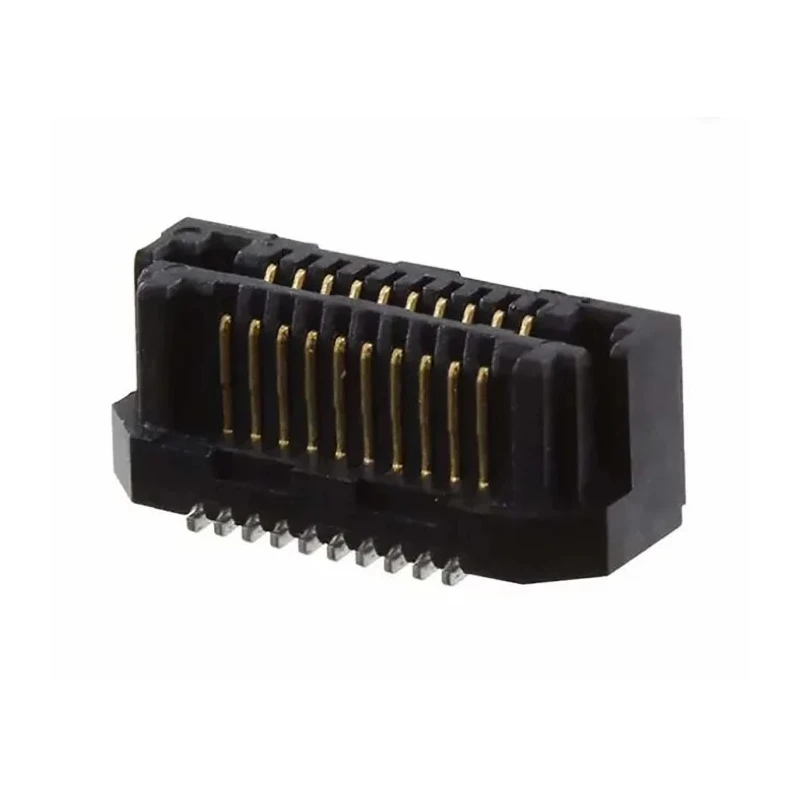

Samtec LSS Series Straight Surface PCB Header 20 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-110-02-F-DV-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.7A |
| Model | LSS-110-02-F-DV-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | LSS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.635mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Connector designed for board-to-board interfacing applications.
- Contacts made of phosphor bronze with gold plating for excellent conductivity.
- Liquid crystal polymer housing ensures high temperature resistance from -55°C to 125°C.
- Shrouded design provides reliable protection during mating.
- Supports a maximum current of 1.7A for effective power handling.
- Self-mating hermaphroditic design reduces inventory and simplifies assembly.
- Manufactured to RoHS environmental compliance standards.
Product Description
Samtec LSS-110-02-F-DV-A-K-TR is a high-quality PCB Header from the LSS Series featuring a straight orientation with a shrouded, 2-row design and 20 contacts separated by a precise 0.635 mm pitch.
Constructed with liquid crystal polymer housing material, this header provides outstanding mechanical stability and thermal resistance across operating temperatures from -55°C to 125°C, suitable for demanding industrial and electronic applications.
The phosphor bronze contacts are plated with gold to ensure a low-resistance, corrosion-resistant connection suitable for board-to-board interface systems in a variety of electronic devices.
This connector supports a current rating of 1.7A, making it suitable for moderate power electronic assemblies in industrial, commercial, and laboratory equipment. The shrouded, self-mating design offers protection during insertion and removal, reducing damage risks and supporting efficient assembly operations.
The connector system is designed for board-to-board applications facilitating compact and reliable electronic assembly. Hermaphroditic feature reduces inventory requirements by eliminating the need for separate male and female connectors.
Compliance with RoHS directives ensures the product is environmentally safe and industry-standard compliant. This header is surface mount type, simplifying PCB integration while maintaining strong mechanical and electrical connections.
Ideal for use in industrial automation, communications equipment, measurement instruments, and HVAC control systems. Samtec products are renowned for precision manufacturing and reliability. Explore the PCB Headers category on EnvMart for more electronic connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 1.7A, making it suitable for moderate power electronic assemblies.
The contacts are spaced at a pitch of 0.635 mm, which is designed for precise board-to-board connections.
It features a housing made of liquid crystal polymer and contacts made of phosphor bronze with gold plating for enhanced conductivity.
The operating temperature range is from -55°C to 125°C, allowing it to function in a variety of environments.
This connector has a total of 20 contacts, arranged in a 2-row configuration.
Yes, the product is manufactured to comply with RoHS environmental standards, ensuring it is safe for use.
It is a surface mount type, which simplifies integration onto printed circuit boards.
It features a shrouded, self-mating hermaphroditic design, which reduces inventory needs and simplifies assembly.
The orientation of this model is straight, suitable for straightforward board-to-board connections.
This connector is ideal for applications in industrial automation, communications equipment, measurement instruments, and HVAC control systems.
The contacts are male, designed for board-to-board interfacing.
The product is manufactured in India, ensuring compliance with industry standards.
