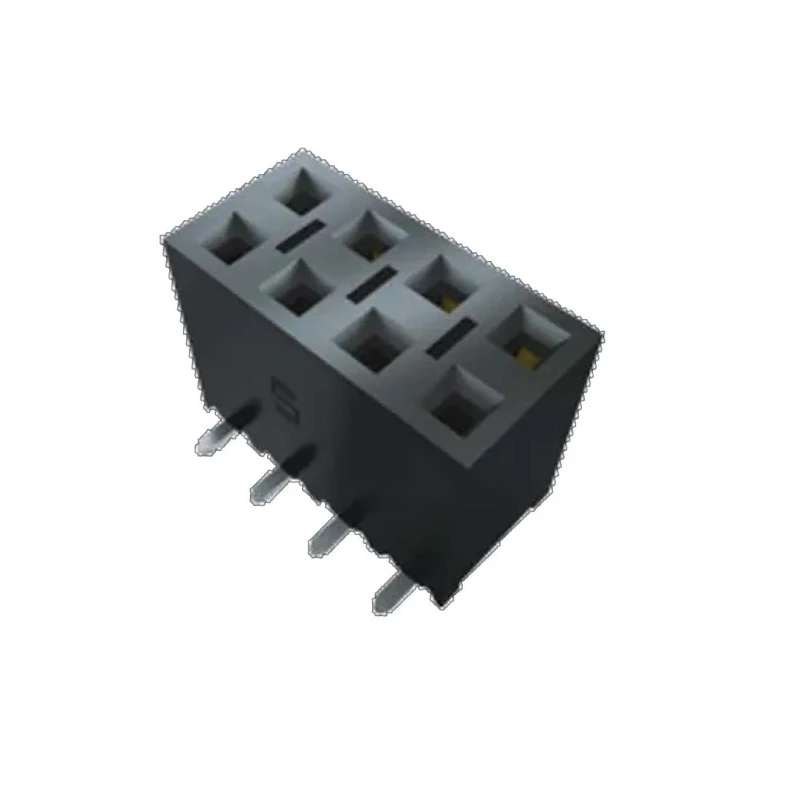

Samtec SSM Series Straight Surface PCB Socket 10-Contact 2 Row 2.54 mm Pitch Surface Mount SSM-105-L-DV-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 572V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | SSM-105-L-DV-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Current Rating | 5.2A per pin(2 pins powered) |
| Series | SSM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
| Normal Force | 125grams (1.21N) average |
Key Features
- This PCB socket has 10 contacts arranged in 2 rows with 2.54 mm pitch.
- The socket is designed for surface mount termination and straight orientation.
- It features a current rating of 5.2 A with 572 V voltage capacity.
- Operating temperature ranges from -55°C minimum to 125°C maximum.
- Contact normal force averages 125 grams ensuring secure connection.
- Housing is made from durable liquid crystal polymer material.
- Contact plating is gold over phosphor bronze for corrosion resistance.
- The product is suited for electronic and industrial PCB connector applications.
Product Description
Samtec SSM-105-L-DV-TR is a high-quality, straight surface mount PCB socket designed for robust board-to-board connections. Featuring a 10-contact, 2-row layout with a 2.54 mm pitch, this socket ensures precise fit and reliable electrical contact for demanding electronic assemblies.
The socket uses phosphor bronze contacts with gold plating for excellent conductivity and corrosion resistance. The housing is constructed from black liquid crystal polymer, providing durability and stability under a wide range of operating conditions.
Rated for a current of 5.2 A per pin (with 2 pins powered) and a voltage capacity of 405 VAC or 572 VDC, this PCB socket is suitable for industrial, laboratory, and manufacturing electronic systems. Its termination type is surface mount (SMT), and it has a straight orientation to simplify PCB layout.
Operating temperature range spans from -55°C to 125°C, making it suitable for applications in harsh environments requiring thermal resilience. The contact normal force averages 125 grams (1.21N), providing firm, reliable contact engagement.
This connector is widely used in electronic components assemblies requiring board-to-board interfacing with high electrical performance. Its compact 2-row arrangement and standardized pitch facilitate integration in various circuit board designs and electronic devices.
10 contacts in 2 rows with 2.54 mm pitch. Surface mount termination and straight orientation. 5.2 A current rating and 572 V voltage capability. Liquid crystal polymer housing for high durability. Phosphor bronze contacts plated with gold for corrosion resistance.
Wide operating temperature range: -55°C to 125°C. Contact normal force of 125 grams ensures secure connections. Ideal for industrial, laboratory, manufacturing PCB electronic applications.
The Samtec SSM series represents a proven solution for surface mount PCB socket requirements, combining durability, reliable electrical performance, and ease of installation. These connectors are essential in industries such as electronics manufacturing, industrial control systems, and specialized laboratory equipment.
Explore the extensive Electronics Components catalog on EnvMart for more high-quality PCB connectors and sockets tailored to your application needs.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5.2 A per pin when 2 pins are powered.
It has a voltage capacity of 572 V, making it suitable for various applications.
The operating temperature range spans from -55°C to 125°C, allowing for use in harsh environments.
This model features surface mount termination, designed for easy integration onto PCBs.
It has a total of 10 contacts arranged in 2 rows with a 2.54 mm pitch.
The housing is made from liquid crystal polymer, and the contacts are phosphor bronze plated with gold for corrosion resistance.
The contact normal force averages 125 grams (1.21 N), ensuring a secure connection.
This socket is designed with a straight orientation, simplifying PCB layout.
It is suitable for industrial, laboratory, and manufacturing electronic systems requiring board-to-board connections.
The pitch of the contacts is 2.54 mm, which is a standard size for many PCB applications.
The country of origin for this product is India.
This model utilizes a board-to-board connector system, facilitating reliable connections between PCBs.
