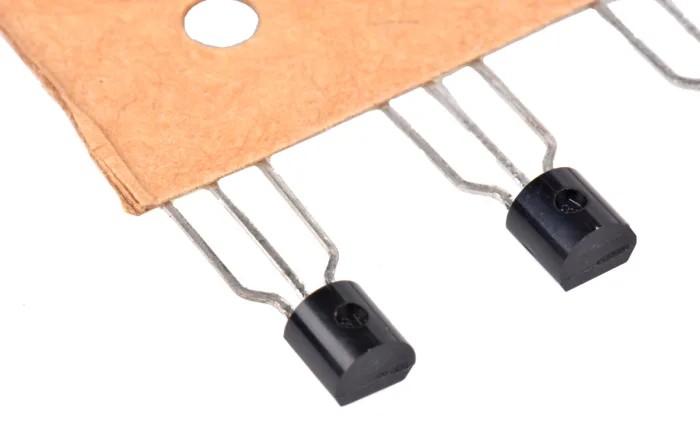

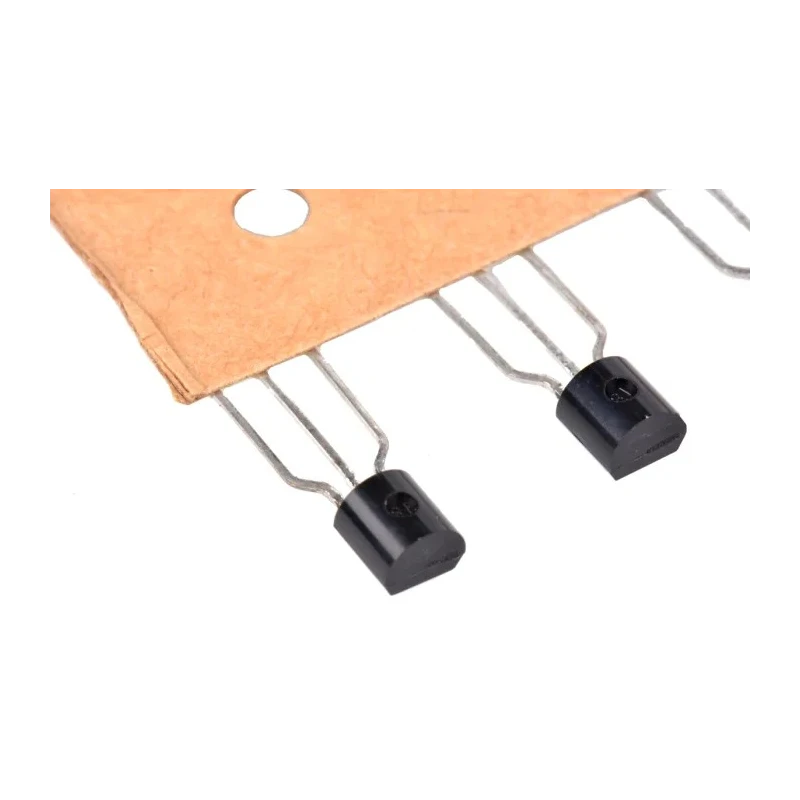

STMicroelectronics Linear Voltage Regulator 100mA 40V TO-92 Package 3-Pin L78L24ACZ-AP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics L78L24ACZ-AP, Voltage Regulator 40V TO-92 3-Pin RS |
| Brand | STMicroelectronics |
| Height | 4.95mm |
| Length | 4.95mm |
| Model | L78L24ACZ-AP |
| Width | 3.94mm |
| Mount Type | Through Hole |
| Series | L78Lxx |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 6.5mA |
| Pin Count | 3 |
Key Features
- Operates with a maximum input voltage of 40 volts.
- Features a positive polarity linear regulator design.
- Has a quiescent current of 6.5mA for efficiency.
- Designed for through-hole mounting for easy PCB integration.
- Compact dimensions with a length and height of 4.95mm.
- Offers built-in current limiting and thermal shutdown protection.
- Suitable for industrial and electronic circuit power management applications.
- Operates reliably up to 150°C maximum operating temperature.
Product Description
STMicroelectronics L78L24ACZ-AP is a linear positive voltage regulator designed for power management in electronic circuits. Housed in a compact TO-92 three-pin package, it provides reliable regulation with a maximum output current of 100mA. This regulator supports a maximum input voltage of 40 volts and includes essential protections like internal current limiting and thermal shutdown, ensuring safe operation under demanding conditions.
The device features a low quiescent current of 6.5mA, making it suitable for applications requiring efficient power usage. Its through-hole mount design facilitates easy placement on printed circuit boards, while the dimensions of 4.95mm length and height and 3.94mm width make it suitable for compact assemblies.
This voltage regulator supports a maximum operating temperature of 150°C, enabling use in industrial and commercial environments where temperature resilience is critical. The L78L24ACZ-AP series is widely employed in power supply circuits, embedded systems, and various electronics requiring stable voltage references.
Key features include built-in short-circuit current limiting and thermal overload protection, enhancing device robustness and reliability. Its positive polarity design aligns with common electronic circuits and power configurations.
Operates with maximum 40V input voltage for versatile applications. Quiescent current of 6.5mA ensures energy efficiency. Compact TO-92 3-pin package for straightforward PCB integration. Built-in internal current limiting and thermal shutdown safeguards.
Wide temperature rating up to 150°C for harsh environment operation. Positive polarity linear regulator suitable for industrial electronics. Length and height dimensions: 4.95mm each for space-sensitive designs. Reliable power management IC from STMicroelectronics.
This product is used extensively in industrial, laboratory, electronics manufacturing, and power management applications. It is ideal for devices requiring a focused voltage regulation solution in a small form factor.
Explore more STMicroelectronics power management ICs and linear Voltage Regulator solutions at EnvMart to meet diverse application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 40 volts.
It provides a maximum output current of 100mA.
The quiescent current for this unit is 6.5mA, contributing to its efficiency.
The dimensions are 4.95mm in length and height, and 3.94mm in width.
It is designed for through-hole mounting, facilitating easy PCB integration.
The maximum operating temperature is 150°C, allowing for use in harsh environments.
Yes, it features built-in current limiting and thermal shutdown protection.
It supports a positive polarity design, suitable for common electronic circuits.
It is suitable for power management in industrial, laboratory, and electronics manufacturing applications.
It belongs to the L78Lxx series of voltage regulators.
This model has a pin count of 3.
The country of origin for this voltage regulator is India.
