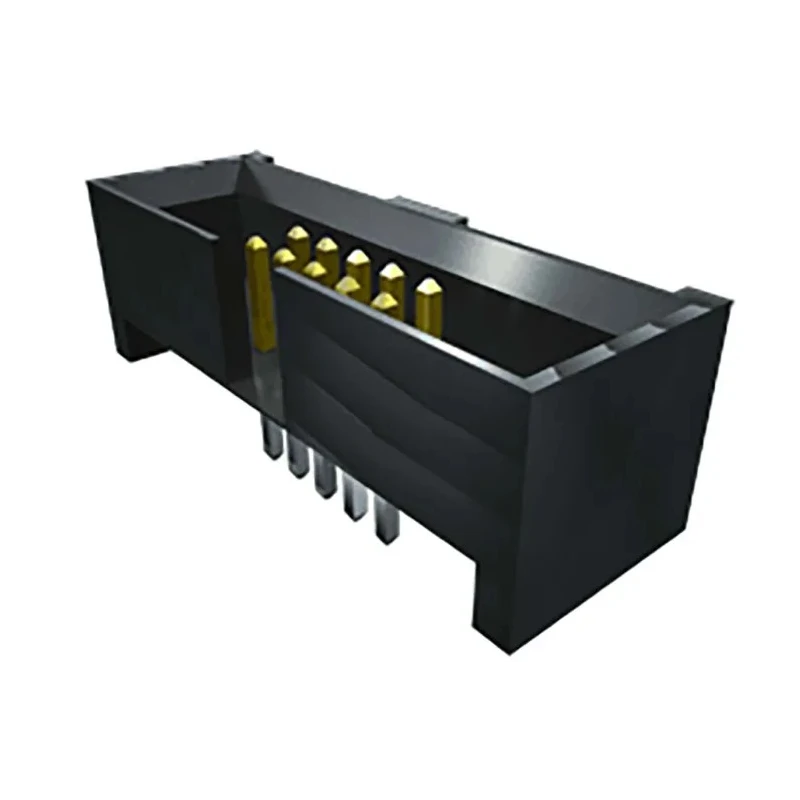

Samtec ESHF Series Right Angle Surface PCB Header 50 Contacts 1.27mm Pitch 2 Row Shrouded ESHF-125-01-L-D-SM-LC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Model | ESHF-125-01-L-D-SM-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ESHF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold or Tin |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- This PCB header has 50 phosphor bronze contacts plated in gold or tin for reliable connections.
- The housing is made of black liquid crystal polymer ensuring high durability and chemical resistance.
- Operating temperature ranges between -55°C and 125°C suitable for various industrial environments.
- The orientation is right angle, and it is designed for surface mount technology (SMT) installation on PCBs.
- The termination type is solder, and it includes polarization notch to prevent incorrect mating.
- Its shrouded design provides added protection and secure board-to-board connection capabilities.
Product Description
Samtec ESHF-125-01-L-D-SM-LC is a high-quality right angle surface PCB header from the ESHF series, designed for board-to-board connectivity in demanding electronic applications. Featuring 50 male contacts arranged in 2 rows with a 1.27 mm pitch, this component meets rigorous industrial performance standards.
The connector's housing material is black liquid crystal polymer, offering excellent thermal and chemical stability. Contacts are made from phosphor bronze and plated with gold or tin to ensure superior conductivity and corrosion resistance. The solder termination type and SMT lead coplanarity of 0.10 mm maximum facilitate reliable assembly on printed circuit boards.
Capable of operating within a temperature range of -55°C to +125°C, the connector suits a wide array of industrial, electronic, and commercial uses including industrial machinery, instrumentation, telecommunications, and manufacturing equipment. Its right-angle orientation and shrouded design improve mechanical connection stability and reduce the risk of damage during installation.
Additional features include a polarization notch that enforces correct mating alignment and enhances device protection. This PCB header supports board-to-board connector systems, making it a versatile option for complex electronic assemblies and prototype builds.
This PCB header has 50 phosphor bronze contacts plated in gold or tin for reliable connections. The housing is made of black liquid crystal polymer ensuring high durability and chemical resistance. Operating temperature ranges between -55°C and 125°C suitable for various industrial environments.
The orientation is right angle, and it is designed for surface mount technology (SMT) installation on PCBs. The termination type is solder, and it includes polarization notch to prevent incorrect mating. Its shrouded design provides added protection and secure board-to-board connection capabilities.
Ideal for industrial electronics, manufacturing, telecommunications, and aerospace applications, this Samtec ESHF series PCB Header offers robust mechanical and electrical performance. Explore more high-quality PCB connectors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 50 male contacts arranged in 2 rows with a 1.27 mm pitch.
It operates within a temperature range of -55°C to +125°C, making it suitable for various industrial environments.
The housing is made of black liquid crystal polymer, which provides high durability and chemical resistance.
The termination type for this model is solder, ensuring reliable electrical connections.
It supports board-to-board connector systems, facilitating complex electronic assemblies.
The polarization notch prevents incorrect mating, ensuring proper alignment during connection.
The contacts are made from phosphor bronze and are plated with either gold or tin for enhanced conductivity and corrosion resistance.
This model is designed for surface mount technology (SMT) installation on printed circuit boards.
Specific dimensions are not provided, but it features a 1.27 mm pitch and is designed for standard PCB layouts.
It is suitable for various applications including industrial machinery, instrumentation, telecommunications, and manufacturing equipment.
The shrouded design provides added protection and enhances the stability of board-to-board connections.
The country of origin for this PCB header is India.
