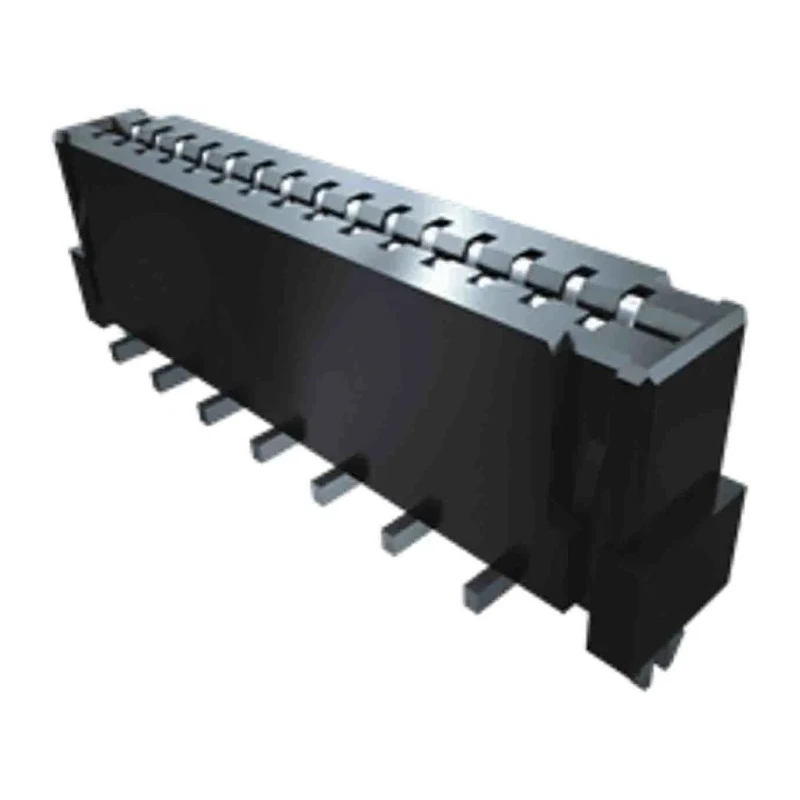

Samtec FC1 Series Straight Surface PCB Socket, 15-Contact, 1 Row, 1 mm Pitch, 339V, 2A Current FC1-15-02-T-WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 339V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2A |
| Model | FC1-15-02-T-WT |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FC1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector System | Board-to-Cable |
Key Features
- Constructed with liquid crystal polymer housing for durability.
- Phosphor bronze contact material with tin plating ensures reliable conductivity.
- Designed for surface mounting with a straight orientation.
- Suitable for board-to-cable connector system applications.
- Operating temperature ranges from -55°C to 105°C.
- Complies with RoHS standards for environmental safety.
- Low insertion force contacts for easy connection.
- Ideal for electronics and electrical component assembly.
Product Description
Samtec FC1-15-02-T-WT is a precision straight surface PCB socket designed for electronic assembly and electrical applications. This connector features 15 female contacts arranged in a single row with a 1 mm pitch, providing reliable connection for board-to-cable systems. The housing is made from liquid crystal polymer, offering excellent durability and stability under varied operating conditions.
The contact elements are constructed from phosphor bronze with a tin plating that guarantees robust electrical performance and corrosion resistance. With a current rating of 2A and rated voltage of 339V, this PCB socket supports medium power electronics.
The surface-mount design with straight orientation allows efficient PCB layout and soldering, suited especially for high-density electronics manufacturing. The socket supports an operating temperature range from -55°C to 105°C, making it reliable for use in harsh industrial and laboratory environments.
This product complies with RoHS standards, ensuring it meets environmental and safety regulations regarding hazardous substances in electronics components. The design incorporates low insertion force contacts for easy and secure cable connections, minimizing mechanical stress on the PCB.
This FC1 series socket is widely used in electronics manufacturing, testing equipment, industrial controls, and telecommunications systems. It offers a robust and reliable connector solution for professional assembly lines and engineering applications.
Constructed with liquid crystal polymer housing for durability. Phosphor bronze contact material with tin plating ensures reliable conductivity. Designed for surface mounting with a straight orientation. Suitable for board-to-cable connector system applications.
Operating temperature ranges from -55°C to 105°C. Complies with RoHS standards for environmental safety. Low insertion force contacts for easy connection. Ideal for electronics and electrical component assembly. Explore more PCB Sockets and electronic connectors on EnvMart to find compatible components that enhance your system’s connectivity and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB socket is 339V.
This model can handle a maximum current of 2A.
The housing is made from liquid crystal polymer, and the contact material is phosphor bronze with tin plating.
The connector has a 1 mm pitch and features 15 female contacts arranged in a single row.
The operating temperature range for this socket is from -55°C to 105°C.
Yes, it complies with RoHS standards for environmental safety.
This connector supports surface mounting with a straight orientation.
The termination type for this model is solder.
It is suitable for board-to-cable connector system applications, widely used in electronics manufacturing, testing equipment, industrial controls, and telecommunications systems.
The design incorporates low insertion force contacts, allowing for easy and secure cable connections while minimizing mechanical stress on the PCB.
The country of origin for this product is India.
This model is specifically designed with 15 contacts and a 1 mm pitch, tailored for applications requiring a straight surface mount configuration.
