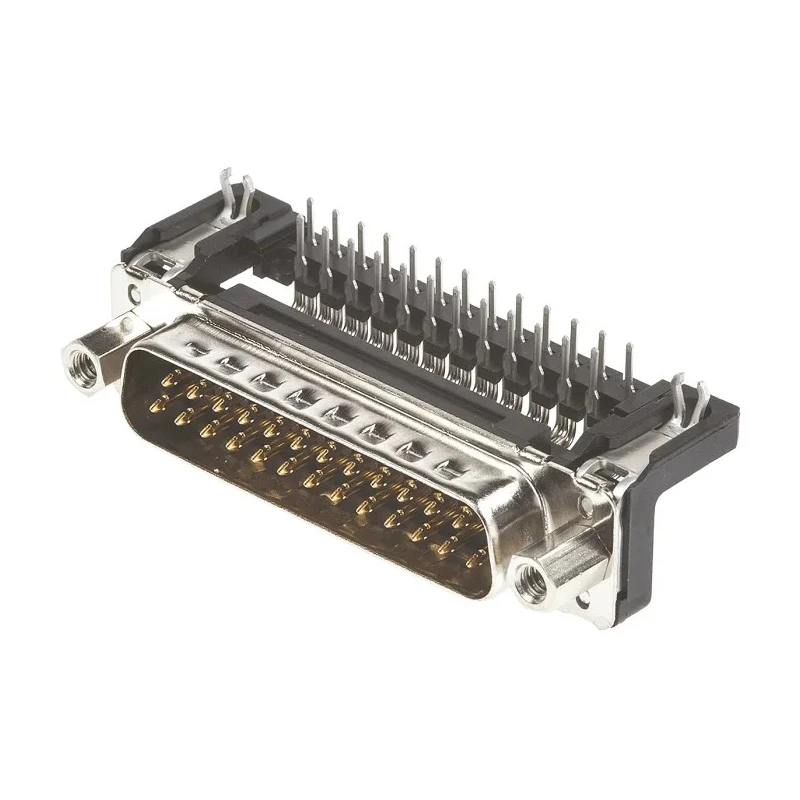

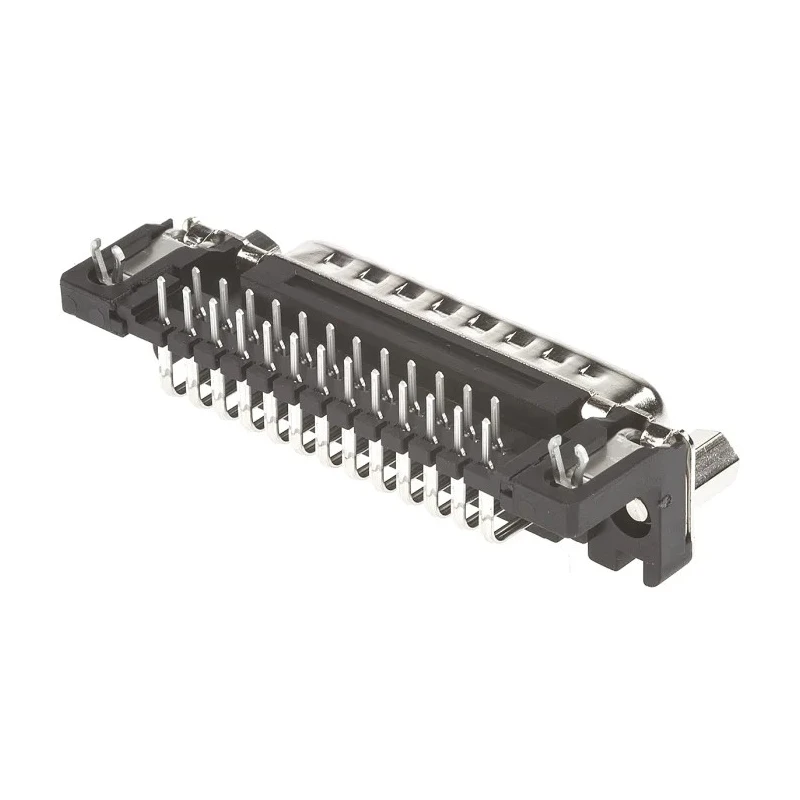

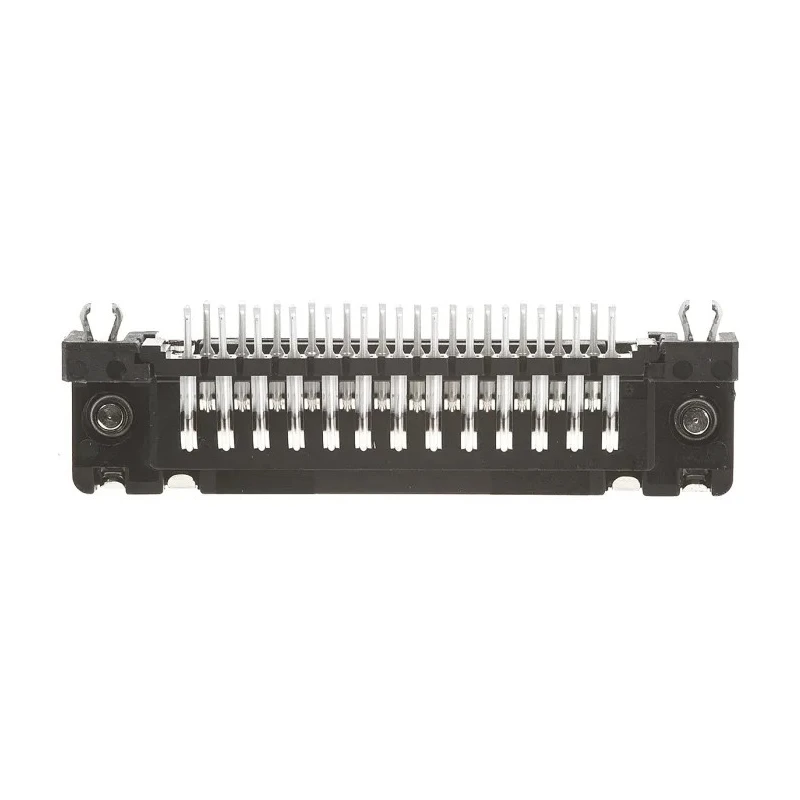

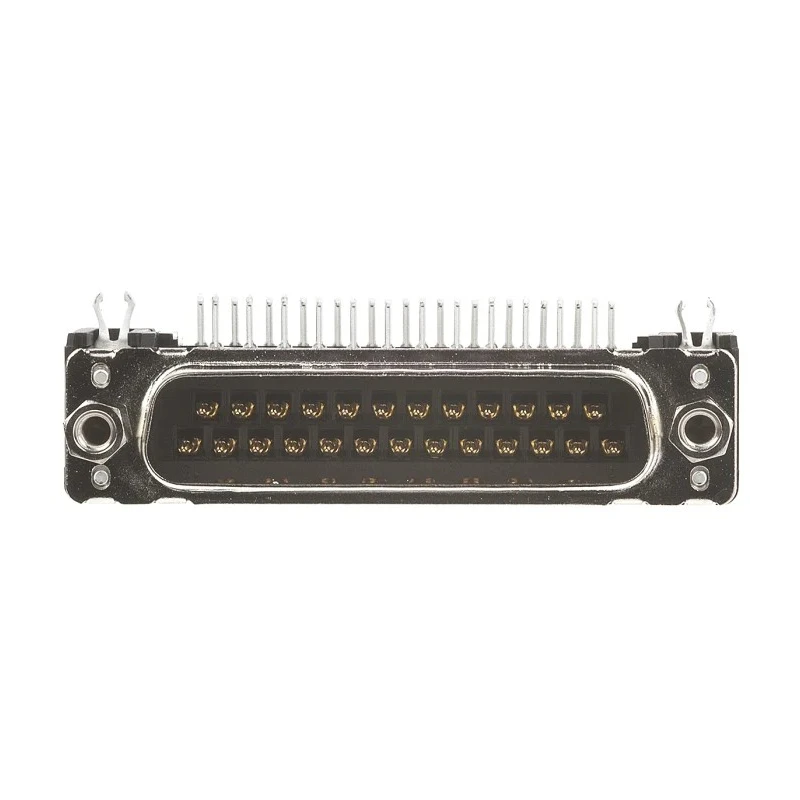

HARTING 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Male 09653626813
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | D-Sub |
Key Features
- The connector has 25 contacts for multi-signal connections.
- Features a right angle orientation suitable for space-constrained PCB layouts.
- Mount type is through hole with 4 to 40 UNC screw lock mounting hardware for secure attachment.
- Contact material is copper alloy with gold plating to ensure corrosion resistance and signal integrity.
- The housing is made of steel providing robust mechanical protection.
- Operates reliably between -55°C to 125°C temperature range.
- Termination type is solder, ensuring strong electrical connection to PCB pads.
- Conforms to IEC 60 807 standard with performance level 2 compliance.
Product Description
HARTING 09653626813 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector is a high-performance male connector tailored for industrial and electronic applications requiring reliable multi-pin connectivity.
This D-Sub connector utilizes 25 copper alloy contacts with gold plating to deliver excellent electrical conductivity and corrosion resistance. The stamped pins and gold-plated contacts are built for durability and a good mating cycle, suitable for cable to board interfacing in communication and data systems.
The right angle orientation and through-hole mount type enable efficient PCB integration where board space is limited, with mounting hardware utilizing a 4 to 40 UNC screw lock design for secure and stable installation.
Constructed with a robust steel housing, this connector can withstand mechanical stress and harsh environments. Operating temperature ranges from -55°C to 125°C, making it suitable for various industrial settings, including telecommunications, manufacturing equipment, and instrumentation.
It complies with IEC 60 807 standards and follows the DIN 41652 2.76 mm pitch dimension standards, ensuring compatibility and quality assurance in industrial and electronic usage scenarios.
The connector provides 25 reliable signal contacts. Right angle orientation minimizes PCB footprint. Through hole mount with screw lock guarantees firm fixing. Copper alloy contacts with gold plating enhance conductivity and durability.
Steel housing offers mechanical robustness. Wide operating temperature range of -55°C to 125°C ensures reliability. Solder termination type for secure circuit attachment. Meets IEC 60 807 standard and performance level 2 specification.
Designed per DIN 41652 standards with 2.76 mm pitch. Manufactured in Switzerland to premium quality standards. This connector is ideal for industrial, telecommunications, data communication, manufacturing, and laboratory equipment requiring dependable multi-pin electrical connections.
Explore more D-Sub Connectors and related power connectors in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 125°C.
This D-Sub connector features 25 contacts for multi-signal connections.
It uses a solder termination type, ensuring a strong electrical connection to PCB pads.
The pitch size of this connector is 2.76 mm, conforming to DIN 41652 standards.
The housing is made of steel, providing robust mechanical protection.
This model has a right angle orientation, suitable for space-constrained PCB layouts.
It supports through hole mounting with 4 to 40 UNC screw lock hardware for secure attachment.
The minimum operating temperature for this connector is -55°C.
The contacts are made from copper alloy and are gold plated to enhance conductivity and corrosion resistance.
Yes, it conforms to IEC 60 807 standards with performance level 2 compliance.
This D-Sub connector supports a current rating of 7.5A.
This connector is manufactured in Switzerland to premium quality standards.
